Description

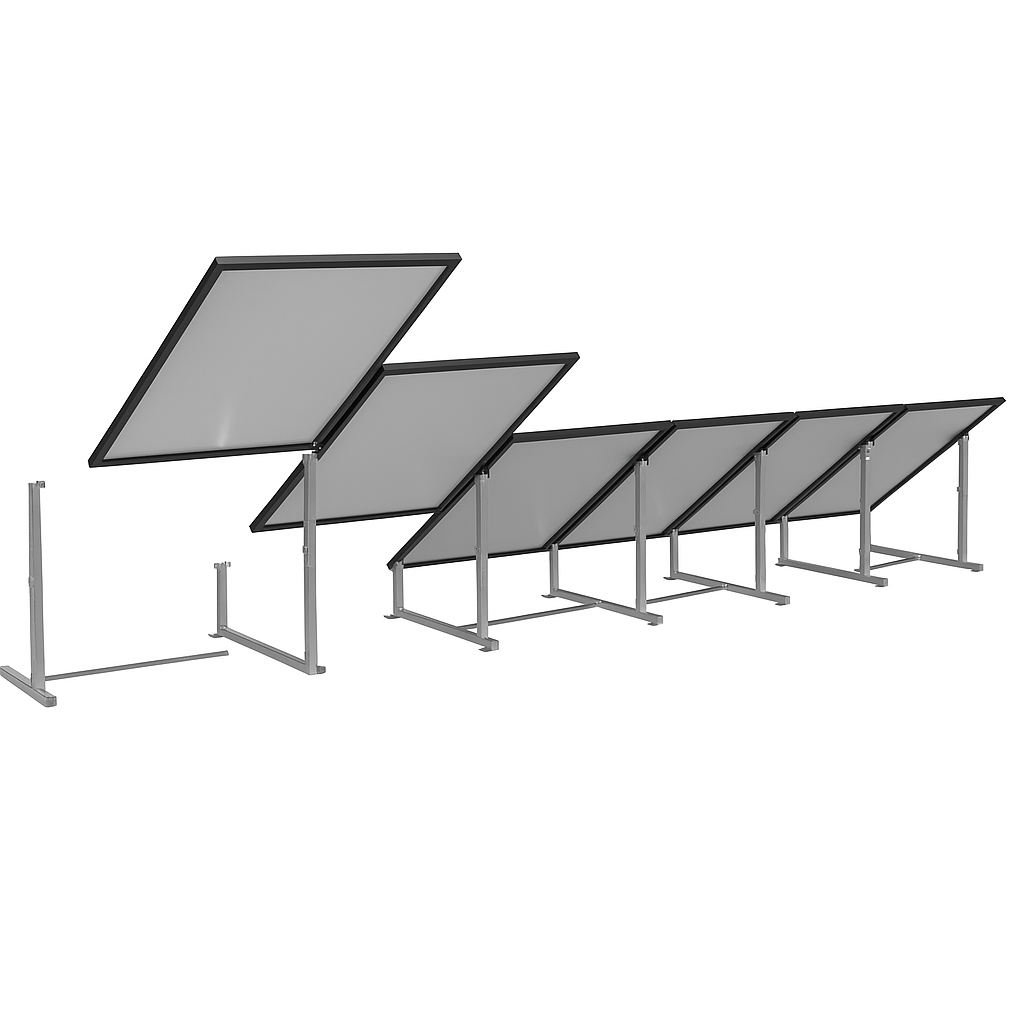

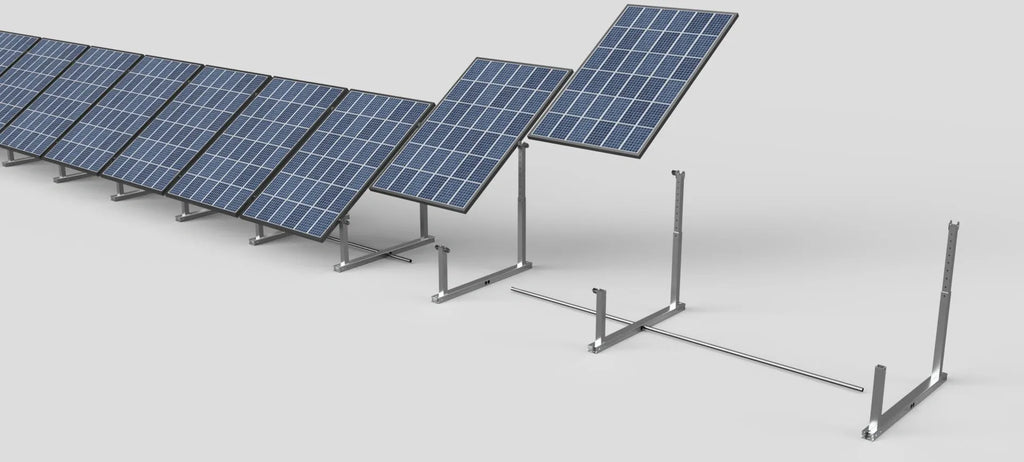

The IntegraRack IR-40FSAA BallastRack™ is a premium, fixed adjustable angle solar module mounting system engineered for flat surface installations that require structural integrity and long-term performance. Constructed from aircraft-grade aluminum, this rack offers exceptional corrosion resistance, lightweight handling, and uncompromising strength—making it ideal for both residential and commercial solar projects.
Designed to support fixed angle mounting while allowing for easy configuration, the IR-40FSAA is part of IntegraRack’s robust BallastRack™ series. Its modular architecture ensures compatibility with a wide range of solar modules and ballast weights, offering efficient installations without roof penetrations. Whether installed on concrete pads, rooftops, or custom platforms, this system provides unmatched flexibility for solar energy professionals.
Key Features:
-
Aircraft-Grade Aluminum Frame: Lightweight yet extremely durable, perfect for high-load and corrosion-prone environments.
-
Fixed Adjustable Tilt Design: Offers optimal angle positioning (up to 40°) to maximize solar energy production.
-
Ballasted System – No Roof Penetration: Securely mounts using ballast blocks for structural stability without damaging the roof.
-
Modular and Scalable: Compatible with various module sizes and site layouts—ideal for expanding systems.
-
Streamlined Assembly: Pre-punched holes and minimal tools required reduce installation time and labor costs.
What's Included:
-
(4) IR-F2 Flange Clamp Bonding Brackets
-
(4) M8-1.25x90mm Carriage Bolts
-
(4) M8-1.25 Serrated Nuts
-
(4) M8-1.25x16mm Thread Cutting Bolts
Technical Specifications
| Specification | Details |
|---|---|
| Model ID | IR-40FSAA |
| Mount Type | Fixed Adjustable Ballasted Mount |
| Material | Aircraft Grade Aluminum |
| Tilt Range | Up to 40° |
| Fastener Compatibility | M8-1.25 bolts and nuts (included) |
| Clamp Type | IR-F2 Under Mount Flange Clamp |
| Mounting Style | No penetration – ballasted |
| Corrosion Resistance | High |
| System Scalability | Modular design for easy expansion |
| Installation Surface | Flat surfaces – concrete pads, rooftops, etc. |
| Color | Silver Aluminum |
| Weight (Approx.) | 24 lbs |
