Grundfos 6 SQF-2 SQFlex Solar Submersible Pump | 6 GPM | Up To 395 Feet

The Grundfos SQFlex solar pumps can be directly powered by solar or wind power or can be run on an inverter, a generator, a battery or the utility grid, or any combination of these sources. Virtually any source of power, 30-300 VDC and 90-240 VAC, can be used to run the pump. They can operate on a series string of PV modules with a total peak power voltage over 30 volts, but the pumps efficiency will be much higher at voltages over 100 VDC. SQFlex 3 and 6 pumps will fit into a 3" well.

Seven pump models can deliver from 2 gpm at 600 feet to 65 gpm at 20 feet of head with a 1 kilowatt solar array or less. Helical rotor pumps (models 3, 6 and 11) for high head applications and centrifugal pumps for low head applications assure a pump that is efficient for any use. The SQFlex has built-in protection from dry-running, overload and overheating.

SQFlex submersible pumps have a 2 year warranty from the date of purchase. A 5 year extended warranty is available separately.

The Whisper 200-150 V wind generator can be connected directly to an SQFlex pump. Please contact us for information.

Optional Controls

The CU200 interface box communicates with the pump and monitors operating conditions. Built-in diagnostics indicate faults and dry-running, display operating status, power consumption and water level switch input. The water level switch interfaces with the CU200 control to turn off the pump when a tank is full.

The IO100 is a simple control box with cable terminations and a manual on/off switch. It is a great interface between a solar array and the pump to allow you to turn off the high voltage array when working on the pump.

The IO101 is an interface for using AC backup on a solar pump. An automatic transfer switch disconnects the solar array when AC power from a generator, utility connection or inverter is present. When AC power stops, it automatically reconnects the array to let the sun continue pumping.

The IO102 interface unit is used for systems powered exclusively by a wind turbine or by a combination of wind and PV.

You can use several controls if you need more features than one control can provide.

The SQFlex pumps will not function with a GFCI in the supply circuit, and should not be used where a GFCI is required.

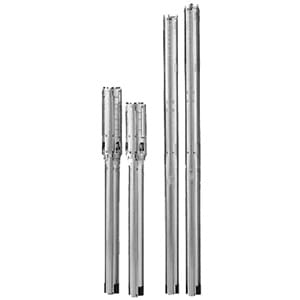

The 3 SQF, 6 SQF, and the 11SQF are helical rotor type pumps. All others are centrifugal. All SQF pumps are 17 to 23 pounds in actual weight.

Model Number	Type	Max Head	Max Flow	PV Watts (Min-Max) **	Pump Diameter (Pipe Size)
3 SQF-2	Helical Rotor	360 Feet	3 GPM	100-340	3" (1" NPT)
3 SQF-3	Helical Rotor	600 Feet	2 GPM	130-600	3" (1" NPT)

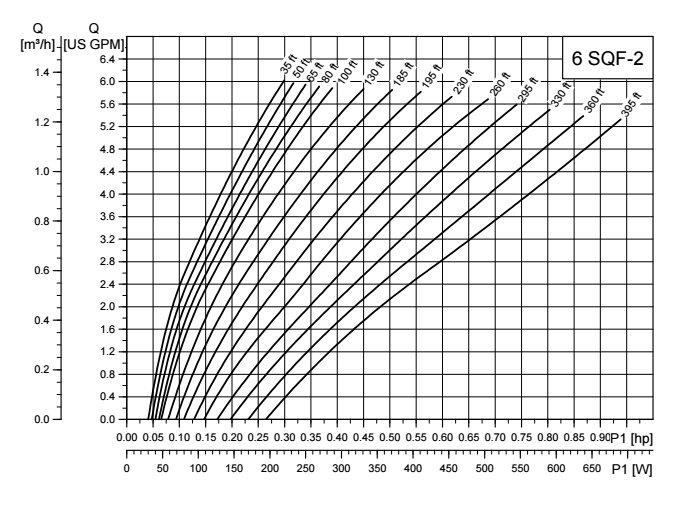

6 SQF-2	Helical Rotor	360 Feet	6 GPM	100-650	3" (1" NPT)
11 SQF-2	Helical Rotor	300 Feet	11 GPM	50-900	3" (1-1/4" NPT)
16 SQF-10	Centrifugal	210 Feet	20 GPM	400-1400	4" (1-1/4" NPT)
25 SQF-3	Centrifugal	45 Feet	40 GPM	120-760	4" (1-1/2" NPT)
25 SQF-6	Centrifugal	90 Feet	39 GPM	130-1400	4" (1-1/2" NPT)
40 SQF-3	Centrifugal	45 Feet	38 GPM	200-800	4" (2" NPT)
40 SQF-5	Centrifugal	90 Feet	70 GPM	300-1400	4" (2" NPT)
60 SQF-3	Centrifugal	45 Feet	85 GPM	20-1400	4" (2" NPT)
