Grundfos 3 SQF-3 SQFlex Solar Submersible Pump | 3 GPM | Up to 655 Feet

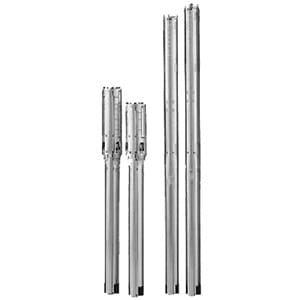

The Grundfos SQFlex solar pumps can be directly powered by solar or wind power or can be run on an inverter, a generator, a battery or the utility grid, or any combination of these sources. Virtually any source of power, 30-300 VDC and 90-240 VAC, can be used to run the pump. They can operate on a series string of PV modules with a total peak power voltage over 30 volts, but the pumps efficiency will be much higher at voltages over 100 VDC. SQFlex 3 and 6 pumps will fit into a 3" well.

Seven pump models can deliver from 2 gpm at 600 feet to 65 gpm at 20 feet of head with a 1 kilowatt solar array or less. Helical rotor pumps (models 3, 6 and 11) for high head applications and centrifugal pumps for low head applications assure a pump that is efficient for any use. The SQFlex has built-in protection from dry-running, overload and overheating.

SQFlex submersible pumps have a 2 year warranty from the date of purchase. A 5 year extended warranty is available separately.

The Whisper 200-150 V wind generator can be connected directly to an SQFlex pump. Please contact us for information.

Optional Controls

The CU200 interface box communicates with the pump and monitors operating conditions. Built-in diagnostics indicate faults and dry-running, display operating status, power consumption and water level switch input. The water level switch interfaces with the CU200 control to turn off the pump when a tank is full.

The IO100 is a simple control box with cable terminations and a manual on/off switch. It is a great interface between a solar array and the p
