Grundfos SQFlex 11 SQF-2 Solar Submersible Pump

GrundfosSKU: 075-01018

Warranty: No Extended Warranty
Controller: No CU202 Controller
Price:
Sale price$2,699.00

Description

LINK TO COMPLETE 11 SQF-2 KITS

The Grundfos SQFlex 11 SQF-2 Solar Submersible Pump is a versatile and efficient solution designed to meet diverse water pumping needs. Whether you require water for agricultural irrigation, livestock watering, or municipal water supply, this pump offers reliable performance powered by a range of energy sources.

Key Features:

  • Versatile Power Options: Can be powered by solar panels, wind turbines, inverters, generators, batteries, or the utility grid. Compatible with any power source ranging from 30-300 VDC and 90-240 VAC.
  • High Efficiency: Operates optimally with a series string of PV modules with a total peak power voltage over 30 volts. Efficiency is significantly higher at voltages over 100 VDC.
  • Wide Range of Applications: Suitable for both high head and low head applications with helical rotor pumps (models 3, 6, and 11) and centrifugal pumps respectively.
  • Built-in Protections: Features built-in safeguards against dry-running, overload, and overheating, ensuring long-lasting reliability.
  • Warranty: Comes with a standard 2-year warranty from the date of purchase. An optional 5-year extended warranty is also available.

Pump Models and Specifications:

Model Type Max Head Max Flow PV Watts Diameter
11 SQF-2 Helical Rotor 760 Feet 11 GPM 200-1400 3" (1-1/4" NPT)
16 SQF-10 Centrifugal 210 Feet 20 GPM 400-1400 4" (1-1/4" NPT)
25 SQF-3 Centrifugal 45 Feet 40 GPM 120-760 4" (1-1/2" NPT)
25 SQF-6 Centrifugal 90 Feet 39 GPM 130-1400 4" (1-1/2" NPT)
40 SQF-3 Centrifugal 45 Feet 38 GPM 200-800 4" (2" NPT)
40 SQF-5 Centrifugal 90 Feet 70 GPM 300-1400 4" (2" NPT)
60 SQF-3 Centrifugal 45 Feet 85 GPM 20-1400 4" (2" NPT)

Optional Controls:

  • CU202 Interface Box: Communicates with the pump and monitors operating conditions. Displays diagnostics, faults, dry-running status, operating status, power consumption, and water level switch input. The water level switch can turn off the pump when a tank is full.
  • IO50 Control Box: Features cable terminations and a manual on/off switch. Ideal for interfacing between a solar array and the pump, allowing you to safely turn off the high voltage array during maintenance. (We don't carry this but can order.)
  • IO101 Interface: Facilitates the use of AC backup for solar pumps. An automatic transfer switch disconnects the solar array when AC power from a generator, utility connection, or inverter is present. When AC power stops, it reconnects the solar array to continue pumping.
  • IO102 Interface Unit: Designed for systems powered exclusively by a wind turbine or a combination of wind and PV sources.

Important Information:

The SQFlex pumps are not compatible with Ground Fault Circuit Interrupters (GFCI) in the supply circuit and should not be used in locations where a GFCI is required.

Advantages of the Grundfos SQFlex 11 SQF-2 Solar Submersible Pump

  • Energy Efficiency: Designed to maximize efficiency with high voltage inputs, ensuring optimal performance and reduced energy consumption.
  • Environmental Sustainability: Utilizes renewable energy sources such as solar and wind power, contributing to a reduced carbon footprint and sustainable water management.
  • Versatility: Suitable for a wide range of applications, from agricultural irrigation and livestock watering to municipal water supply and remote off-grid locations.
  • Reliability: Built-in protections ensure the pump operates safely and reliably, minimizing downtime and maintenance costs.
  • Ease of Use: Optional control units like the CU200, IO100, IO101, and IO102 provide enhanced functionality and ease of operation, making it simple to monitor and manage the pump's performance.

Installation and Maintenance

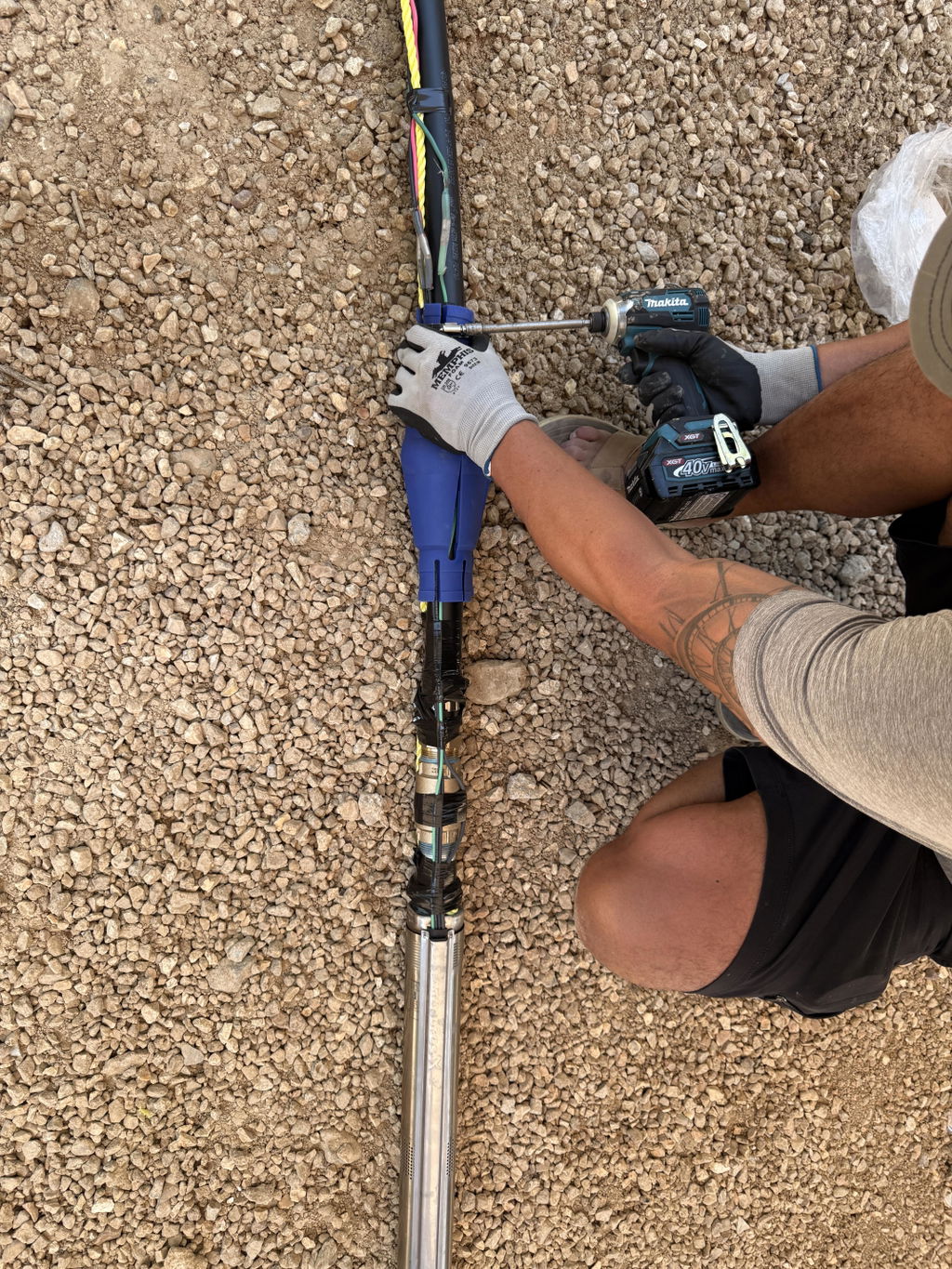

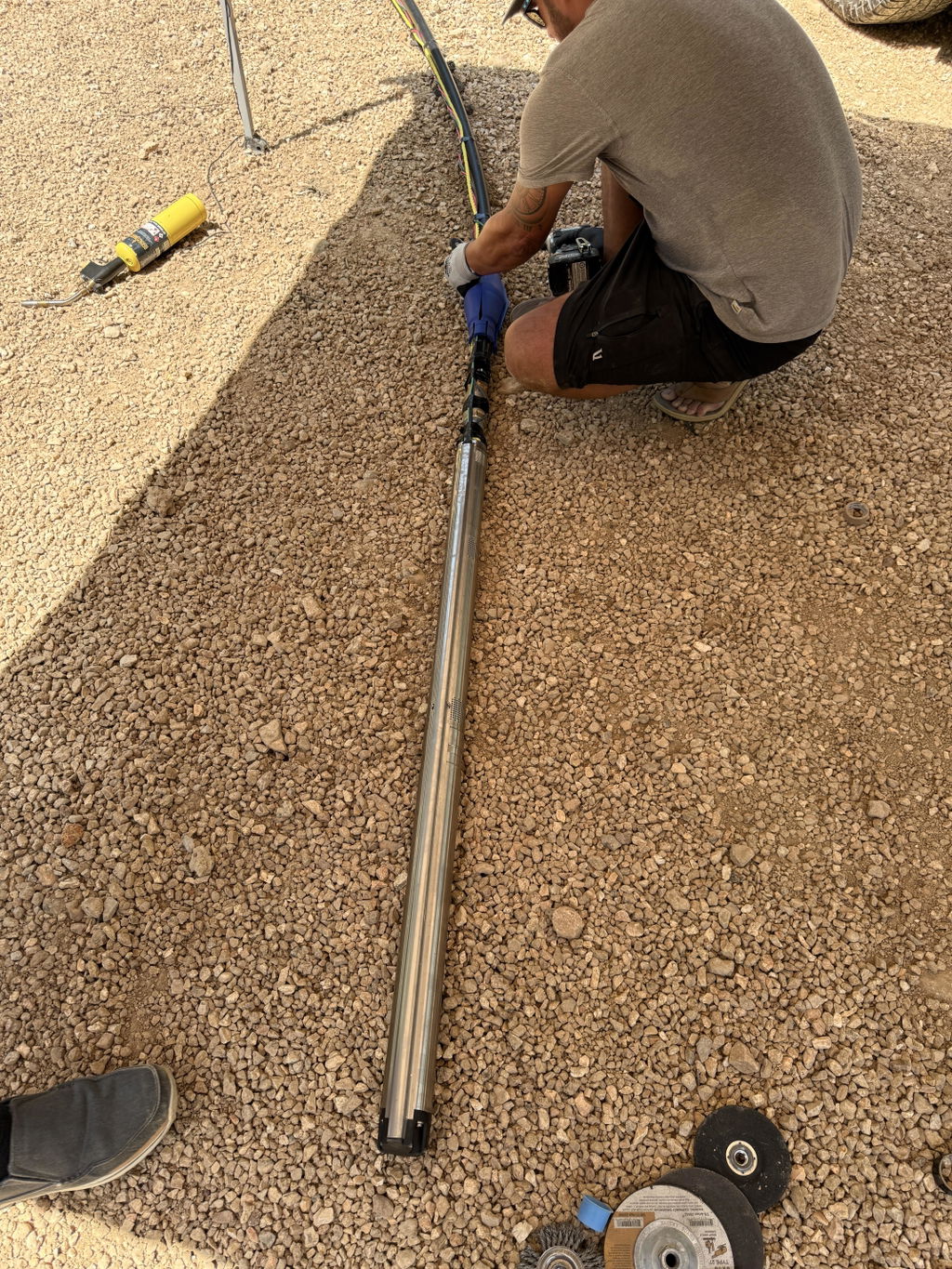

Installation:

While professional installation is recommended for optimal performance and safety, detailed installation guides are available for those who prefer to install the pump themselves. Ensure all power sources and controls are properly configured according to the provided guidelines. There are videos on the manufacturer's website

Maintenance:

Regular maintenance checks are essential to keep the pump in optimal condition. Use the optional control units to monitor performance and address any issues promptly. Built-in diagnostics in the CU200 interface box can help identify and resolve faults quickly.

Customer Testimonials

John D., Farmer: "The Grundfos SQFlex pump has been a game-changer for our farm. It's reliable, efficient, and easy to install. We now have a dependable water source powered by solar energy."

Mike R., Livestock Rancher: "This pump has made a significant difference in our livestock watering system. It's robust, efficient, and the customer support has been excellent. Highly recommended!"

Additional Resources

User Manuals: Access detailed user manuals and installation guides on our website to ensure you get the most out of your SQFlex pump.

Technical Support: Our technical support team is available to assist with any questions or issues you may encounter. Contact us via phone or email for prompt assistance.

Warranty Registration: Register your pump on our website to activate your warranty and receive updates on product maintenance and support.

We are committed to providing exceptional service and support to ensure you get the most out of your Grundfos SQFlex 11 SQF-2 Solar Submersible Pump. Thank you for choosing Grundfos for your water pumping needs.
