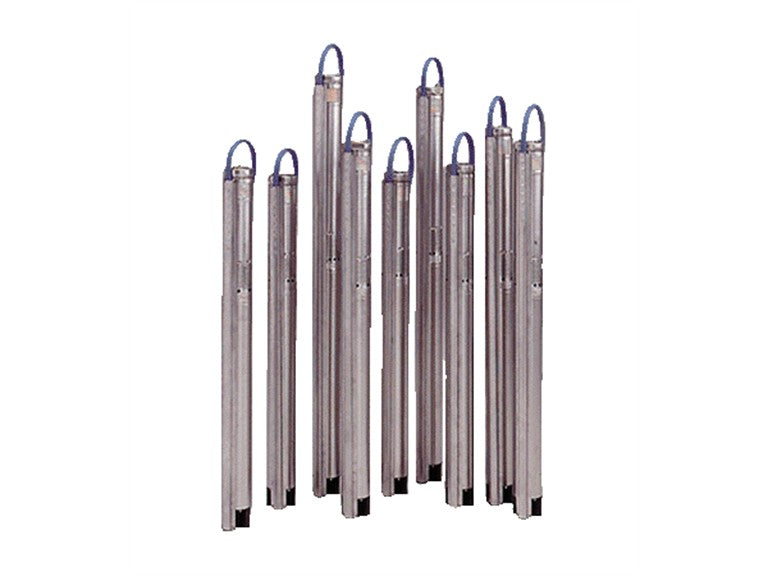

The Grundfos SQ Series 22 GPM 1.5 HP Well Pump is a compact and efficient solution for your water supply needs. Designed for durability and optimal performance, this submersible pump ensures a reliable water source for residential and light commercial applications.

Key Features:

• High Efficiency: Delivers up to 22 gallons per minute with a total dynamic head of 220 feet, ensuring consistent water flow.
• Compact Design: With a 3-inch diameter, it fits into smaller wells where traditional 4-inch pumps cannot.
• Advanced Protection: Equipped with built-in dry-run, overload, and over-temperature protections to extend pump lifespan.
• Soft Start Technology: Reduces starting current and minimizes electrical disturbances, enhancing system longevity.

Product Description:

The Grundfos 22SQ15-220 is engineered to provide dependable water delivery with minimal maintenance. Its stainless steel construction offers robust resistance to corrosion, making it suitable for various water quality conditions. The pump's permanent magnet motor operates efficiently, reducing energy consumption without compromising performance.

Installation is straightforward due to its lightweight and compact form factor. The integrated soft start feature not only protects the pump from electrical surges but also minimizes water hammering, safeguarding your plumbing system. Additionally, the pump's advanced protection mechanisms automatically shut down the unit in adverse conditions, preventing damage and ensuring longevity.

Whether you're upgrading an existing system or installing a new one, the Grundfos 22SQ15-220 offers a reliable and efficient solution for your water pumping requirements.

Specifications:

Specification	Details
Model Number	22SQ15-220
Flow Rate	22 GPM
Horsepower	1.5 HP
Total Dynamic Head	220 ft
Voltage	200-240 VAC
Current Draw	12.3 A
Pump Diameter	3 inches
Material	Stainless Steel
Protection Features	Dry-run, overload, over-temperature
Warranty	2 years
