Grundfos 1HP 200-240V 50-60Hz Constant Pressure Well Pump | 5SQE10-360

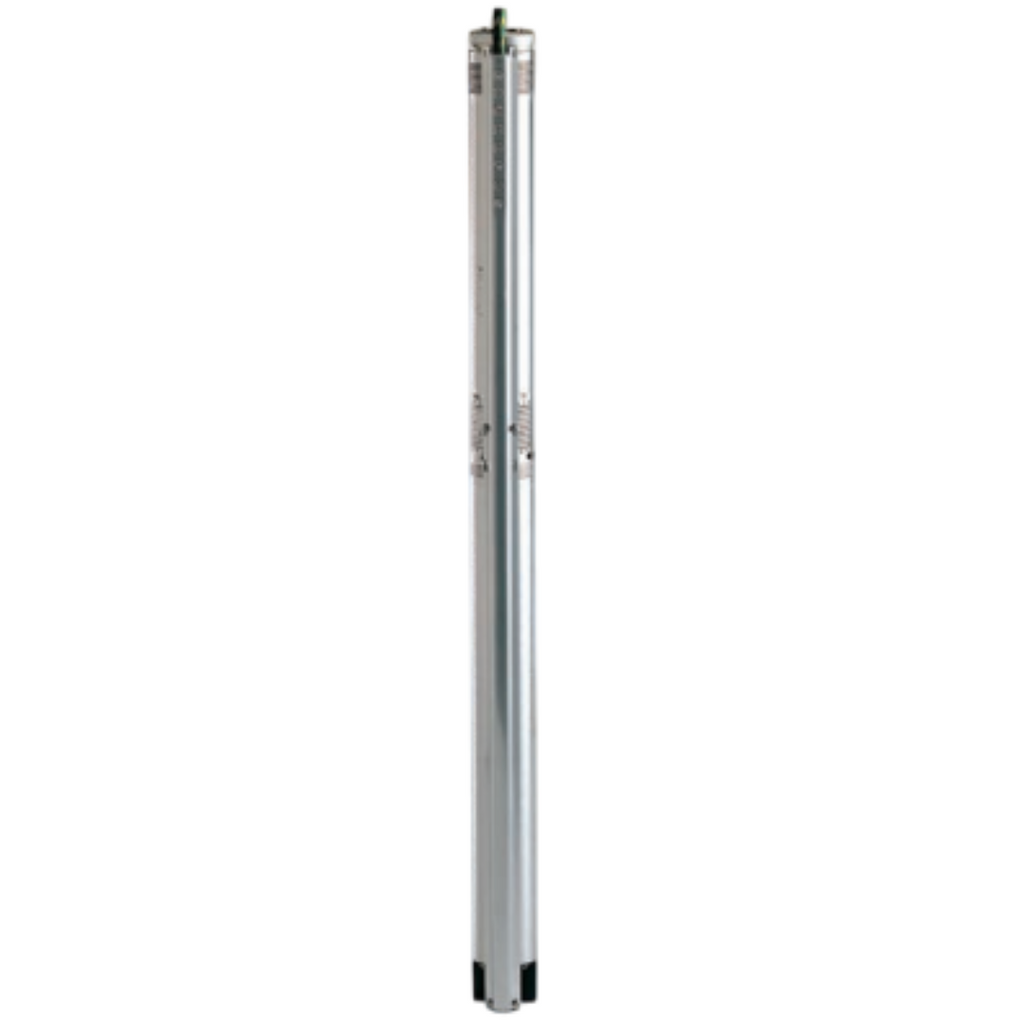

The Grundfos 5SQE10-360 is a 3-inch multi-stage submersible well pump designed to provide Constant pressure for domestic water supply, liquid transfer, irrigation, and environmental applications.

The Grundfos CU302 Constant Pressure Controller is required for this pump to operate as a constant pressure system and is sold separately.

Key Features

• Permanent Magnet Rotor Motor (MSE3) — Delivers optimum efficiency across a wide load range while maintaining consistent constant pressure performance.
• Floating Impeller Design with Tungsten Carbide/Ceramic Bearings — Each stage features its own independent bearing, maximizing durability and reducing wear under continuous operation.
• Comprehensive Built-In Motor Protection — Guards against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature for worry-free operation.
• IP68-Rated Enclosure with Soft Start Technology — Fully submersible motor with soft starting capability reduces mechanical stress and extends overall pump service life.
• High-Head Performance at 442.9 ft Rated Head — Engineered for deeper residential well applications demanding sustained pressure and reliable high-lift capacity.

The 5SQE10-360 is constructed from stainless steel AISI 304 throughout both the pump and motor housing, delivering superior corrosion resistance for long-term submersible installation.

With a rated flow of 4.4 US GPM and a rated head of 442.9 ft, this pump is purpose-built for deeper residential well systems requiring dependable constant pressure delivery at higher power output.

The replaceable end cover with socket and direct-on-line start method make the 5SQE10-360 straightforward to service and commission, reducing installation time and long-term maintenance costs.

Technical Specifications
