Description

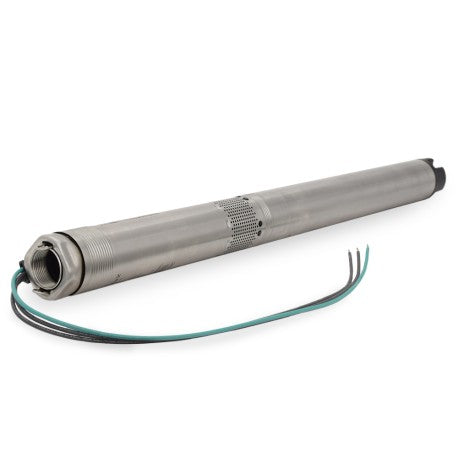

The Grundfos 15 SQE07-180 is a 3-inch multi-stage submersible pump engineered for domestic water supply, liquid transfer, irrigation, and environmental applications.
The Grundfos CU302 Constant Pressure Controller is required for this pump to operate as a constant pressure system and is sold separately.
Key Features:
- Permanent Magnet Rotor Motor: Single-phase MSE3 motor design ensures optimum efficiency across a wide load range for consistent, reliable performance.
- Floating Impeller Design: Each composite impeller operates with its own tungsten carbide/ceramic bearing for enhanced durability and smooth operation.
- Advanced Built-In Protection: Features soft starting and automatic protection against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature.
- IP68 Fully Submersible Enclosure: Rated for complete submersion, making it a dependable choice for deep well and below-grade water supply installations.
- Replaceable End Cover with Socket: Motor is fitted with a field-replaceable end cover, simplifying serviceability and reducing long-term maintenance costs.
The 15 SQE07-180 operates at a rated speed of 10,700 RPM, delivering a rated flow of 13.2 US GPM at a rated head of 229.7 ft. Its direct-on-line starting method and 200-240V single-phase compatibility make it straightforward to integrate into standard residential electrical systems.
Constructed with stainless steel pump and motor housings (AISI 304) and composite impellers, this pump is built to resist corrosion in demanding water supply environments. A maximum operating pressure of 217.56 psi ensures the unit holds up under the pressure demands of deep well applications.
cULus approved and built to ISO9906:2012 3B curve tolerance, the Grundfos 15 SQE07-180 meets the quality and safety benchmarks expected by professional installers and contractors. With a compact 3-inch profile and a minimum borehole diameter requirement of just 2.99 inches, it fits a wide range of well configurations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Number | 96160192 |
| Pump Model | 15 SQE07-180 |
| Weight (Net) | 13.5 lbs |
| Weight (Gross) | 14.6 lbs |
| Rated Power (P2) | 1.54 HP |
| Power Input (P1) | 1.55 kW |
| Power Required by Pump | 2.04 HP |
| Rated Voltage | 1 x 200-240V |
| Mains Frequency | 60 Hz |
| Rated Current | 8.4 A |
| Rated Speed | 10,700 RPM |
| Power Factor | 1.00 |
| Service Factor | 2.05 |
| Motor Type | MSE3 |
| Starting Method | Direct-On-Line |
| Enclosure Class | IP68 |
| Insulation Class | F |
| Rated Flow | 13.2 US GPM |
| Rated Head | 229.7 ft |
| Maximum Operating Pressure | 217.56 psi |
| Liquid Temperature Range | 32 – 95°F |
| Pump Outlet | 1-1/4" NPT |
| Minimum Borehole Diameter | 2.99 in |
| Pump Material | Stainless Steel (AISI 304) |
| Motor Material | Stainless Steel (AISI 304) |
| Impeller Material | Composite (ZYTEL 70G30 HSLR PA6.6-GF30) |
| Cable Length | 4.92 ft |
| Approvals | cULus |
| Curve Tolerance | ISO9906:2012 3B |
