Description

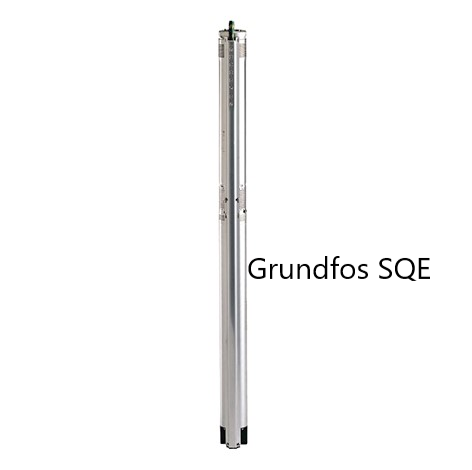

The Grundfos SQ Series 15 GPM 1 HP Submersible Well Pump (Model 15SQ10-250) is engineered to deliver reliable and efficient water supply solutions for residential and light commercial applications. Designed for 3-inch or larger boreholes, this compact pump offers a blend of advanced features and robust construction, ensuring consistent performance and longevity.
Key Features:
- Soft Start Technology: Minimizes electrical and mechanical stress, reducing the risk of water hammer and extending the lifespan of the pump.
- Dry-Running Protection: Automatically halts operation when water levels are insufficient, preventing damage due to dry running.
- Overload and Voltage Protection: Safeguards the motor against voltage fluctuations and overload conditions, ensuring stable and reliable operation.
- Stainless Steel Construction: Corrosion-resistant materials enhance durability, making the pump suitable for various water quality conditions.
The Grundfos 15SQ10-250 is equipped with a 1 HP permanent magnet motor, delivering high efficiency and reliable performance. Its soft start feature ensures a smooth and steady acceleration, reducing wear on the motor and minimizing stress on the entire installation. The built-in dry-running protection extends the pump's life by preventing damage due to lack of water in the well. Additionally, the pump's stainless steel construction ensures durability and resistance to corrosion, making it suitable for various water quality conditions.
This submersible pump is ideal for applications such as groundwater extraction, domestic water supply, small waterworks, and irrigation systems. Its compact design allows for easy installation in narrow boreholes, and the built-in electronics simplify operation, providing a reliable water supply at all times.
Specifications:
Specification | Details |
---|---|
Model Number | 15SQ10-250 |
Flow Rate | 15 GPM |
Horsepower | 1 HP |
Voltage | 200-240 VAC |
Current | 11.2 A |
Total Head Lift | 250 ft |
Pump Diameter | 3 inches |
Discharge Size | 1-1/4 inch NPT |
Material | Stainless Steel |
Weight | 16 lbs |
Dimensions (L x W x H) | 36.1" x 2.9" x 2.9" |
Warranty | 2 Years |
