Description

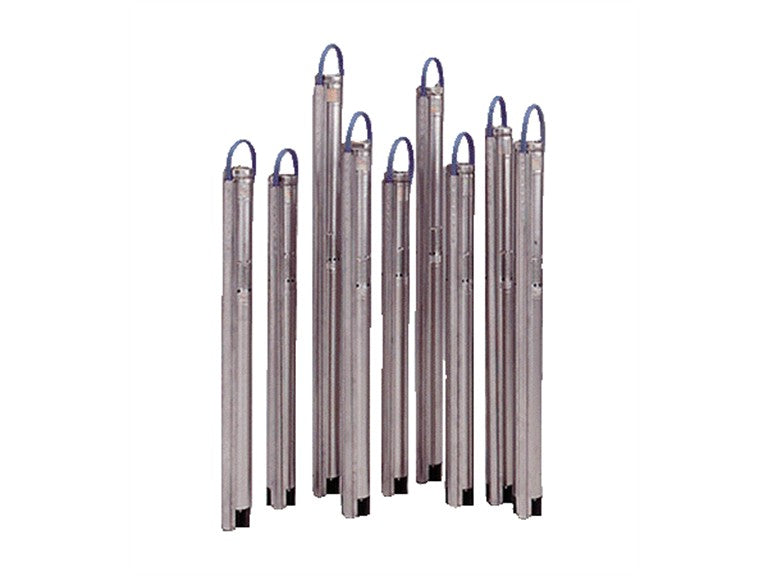

The Grundfos 10SQ05-160 is a compact, high-performance submersible well pump designed to deliver reliable water supply for various applications. With its 3" multistage centrifugal design, it fits seamlessly into boreholes as small as 3 inches in diameter, making it ideal for installations with limited space. Equipped with a 1/2 HP permanent magnet motor, this pump efficiently delivers up to 10 gallons per minute (GPM) at a head of 160 feet, ensuring consistent water flow for domestic water supply, small waterworks, and irrigation systems.
Key Features:
- Compact Design: Fits into boreholes as small as 3 inches, allowing for versatile installation options.
- High Efficiency: The permanent magnet motor ensures optimal performance with reduced energy consumption.
- Built-in Protections: Features dry-running protection, overload protection, and over/under voltage protection to enhance durability and longevity.
- Soft Start Functionality: Reduces mechanical stress and electrical disturbances during startup, extending the pump's lifespan.
The Grundfos 10SQ05-160 is engineered with advanced features to ensure dependable operation. Its built-in dry-running protection safeguards the pump from damage when water levels are low, while the soft start functionality minimizes wear and tear by gradually ramping up the motor speed during startup. The pump's stainless steel construction provides robust durability and resistance to corrosion, ensuring a long service life even in challenging environments. Additionally, the integrated electronics allow for easy installation and operation without the need for external control boxes, simplifying the setup process.
Specifications:
Specification | Details |
---|---|
Model Number | 10SQ05-160 |
Flow Rate | 10 GPM |
Horsepower | 1/2 HP |
Voltage | 200-240 VAC |
Current | 5.2 Amps |
Discharge Size | 1-1/4 inch NPT |
Maximum Head | 160 feet |
Pump Diameter | 3 inches |
Material | Stainless Steel |
Motor Type | Permanent Magnet, 2-Wire |
Protection Features | Dry-running, Overload, Voltage |
Warranty | 2 Years |
