Description

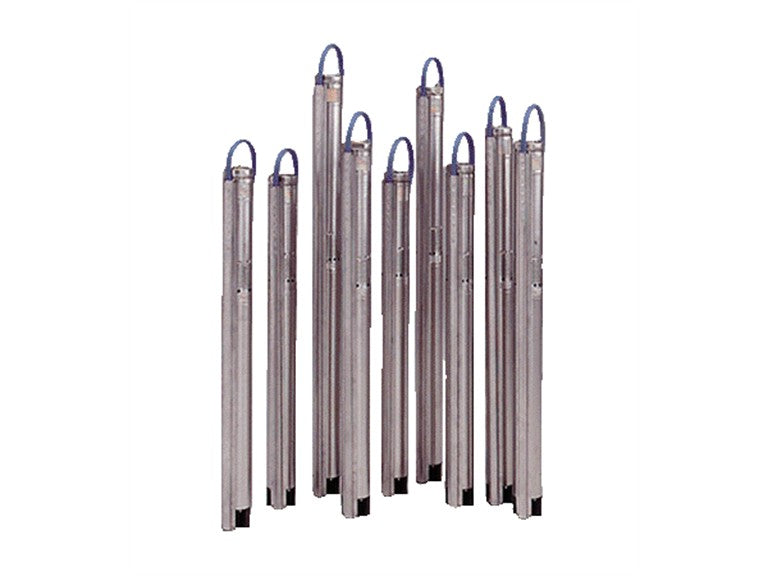

The Grundfos SQ Series 10 GPM 1/2 HP Submersible Well Pump is engineered to deliver reliable and efficient water supply solutions for residential and light commercial applications. Designed for wells with a depth of up to 160 feet, this pump ensures consistent water flow and pressure, meeting the demands of modern households.
Key Features:
- Soft Start Technology: Minimizes electrical and mechanical stress during startup, enhancing the longevity of the pump and reducing the risk of water hammer.
- Built-in Protection Mechanisms: Equipped with safeguards against dry running, overvoltage, undervoltage, and overload conditions, ensuring safe and reliable operation.
- Compact 3" Diameter: Fits into wells with a minimum diameter of 3 inches, offering versatility in installation scenarios.
- High Efficiency Permanent Magnet Motor: Provides superior performance with reduced energy consumption, leading to cost savings over time.
The Grundfos SQ Series pump features an innovative permanent magnet motor, delivering high efficiency and reliable performance. Its soft start functionality reduces starting current, providing smooth acceleration and minimizing wear on the pump components. The built-in protection mechanisms safeguard the pump against common issues such as dry running and voltage fluctuations, ensuring durability and peace of mind.
With its compact 3-inch diameter, the pump is suitable for installation in narrow wells, offering flexibility for various applications. The high-efficiency motor not only ensures consistent water supply but also contributes to energy savings, making it an environmentally friendly choice.
Whether you're upgrading an existing system or installing a new one, the Grundfos SQ Series 10 GPM 1/2 HP Submersible Well Pump provides a dependable solution for your water supply needs.
Specifications:
Specification | Details |
---|---|
Flow Rate | 10 GPM |
Horsepower | 1/2 HP |
Maximum Head | 160 feet |
Voltage | 120 VAC |
Motor Type | Permanent Magnet |
Pump Diameter | 3 inches |
Built-in Protections | Dry Run, Over/Undervoltage, Overload |
Soft Start Feature | Yes |
Material | Stainless Steel |
Warranty | 2 Years |
