Description

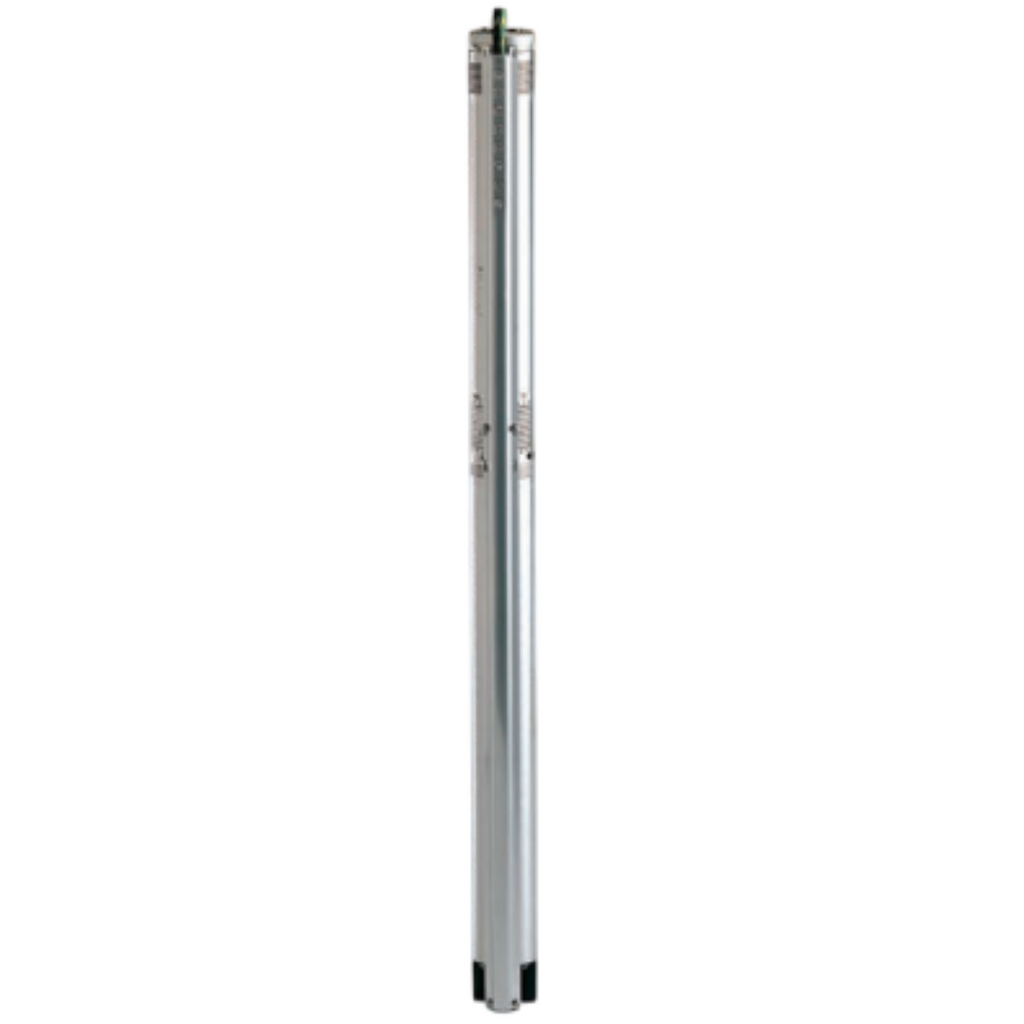

The Grundfos 5SQE05-90 is a 3-inch multi-stage submersible well pump designed to provide Constant pressure for domestic water supply, liquid transfer, irrigation, and environmental applications.
Key Features
- Permanent Magnet Rotor Motor (MSE3) — Delivers optimum efficiency across a wide load range while maintaining consistent constant pressure performance.
- Floating Impeller Design with Tungsten Carbide/Ceramic Bearings — Each stage features its own independent bearing, maximizing durability and reducing wear under continuous operation.
- Comprehensive Built-In Motor Protection — Guards against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature for worry-free operation.
- IP68-Rated Enclosure with Internal Thermal Protection — Fully submersible motor with built-in thermal protection ensures long-term reliability in demanding well environments.
- Built-In Non-Return Valve — Integrated check valve prevents backflow, protecting the pump and maintaining system pressure at all times.
The 5SQE05-90 is engineered from stainless steel AISI 304 throughout both the pump and motor housing, delivering superior corrosion resistance for long-term submersible installation.

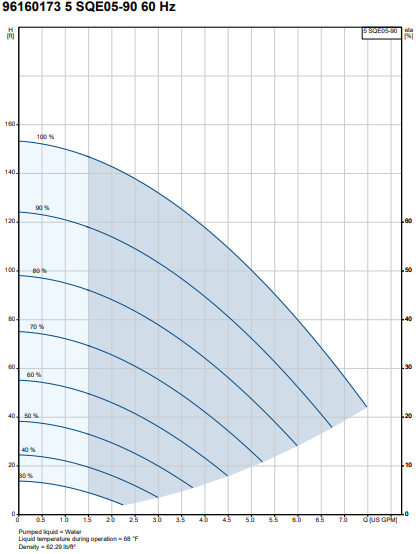

With a rated flow of 4.4 US GPM and a rated head of 111.6 ft, this two-stage pump is perfectly sized for residential constant pressure systems requiring reliable, efficient performance.
Compatible with Grundfos CU 300/CU 301 controllers, the 5SQE05-90 integrates seamlessly into smart water management systems for enhanced monitoring and control capability.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 5 SQE05-90 |
| Product No. | 96160173 |
| Rated Flow | 4.4 US GPM |
| Rated Head | 111.6 ft |
| Stages | 2 |
| Motor Type | MSE3 – Permanent Magnet Rotor |
| Power Input (P1) | 1 kW |
| Rated Power (P2) | 0.939 HP |
| Rated Voltage | 1 x 200–240V |
| Mains Frequency | 60 Hz |
| Rated Current | 5.2A |
| Rated Speed | 10,700 RPM |
| Power Factor | 1.00 |
| Service Factor | 1.85 |
| Start Method | Direct-on-line |
| Enclosure Class | IP68 |
| Insulation Class | F |
| Thermal Protection | Internal |
| Cable Length | 4.92 ft |
| Pump Outlet | 1" NPT |
| Minimum Borehole Diameter | 2.99 in |
| Maximum Operating Pressure | 217.56 psi |
| Liquid Temperature Range | 32–95°F |
| Pump Material | Stainless Steel AISI 304 |
| Motor Material | Stainless Steel AISI 304 |
| Impeller Material | Composite (PA6.6-GF30) |
| Valve | Built-in non-return valve |
| Net Weight | 10.4 lbs |
| Gross Weight | 11.9 lbs |
| Approvals | cULus |
| Country of Origin | Mexico |
