Description

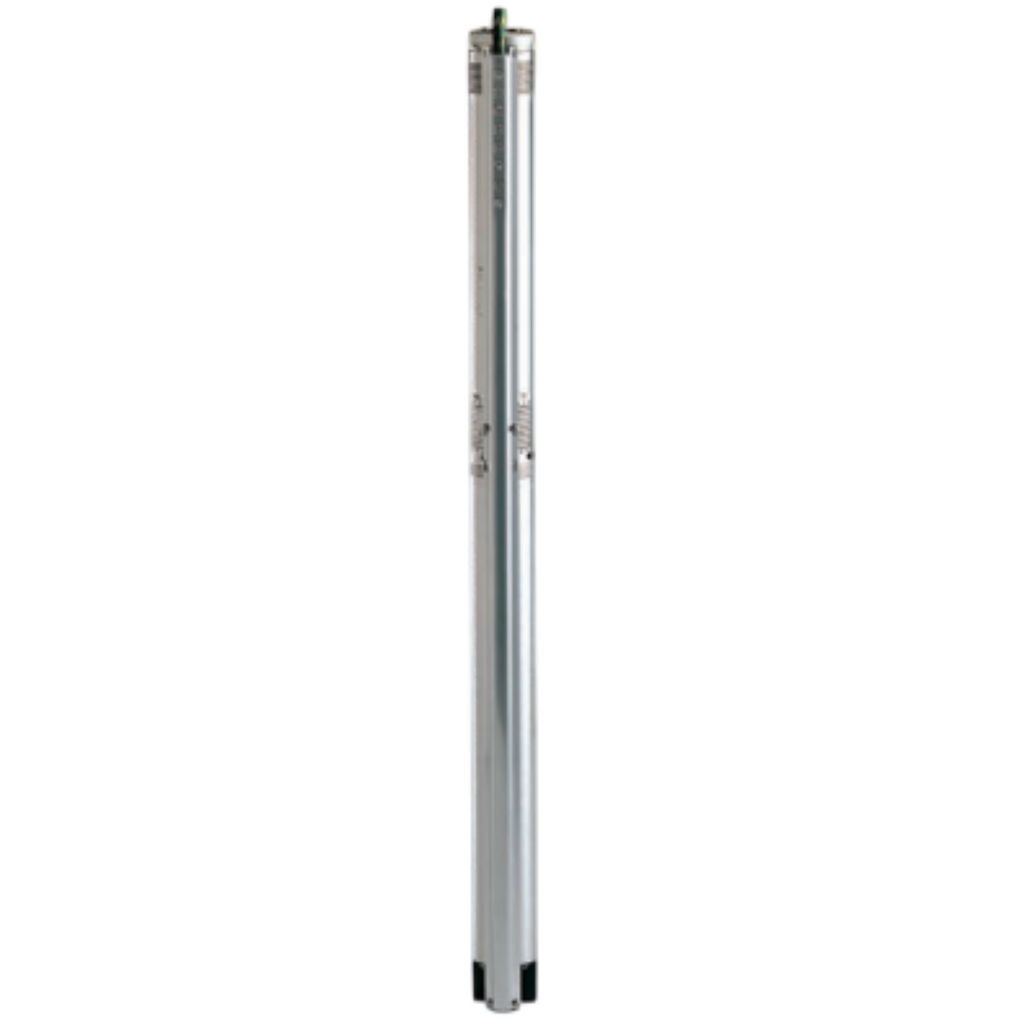

The Grundfos 10SQE05-160 is a 3-inch multi-stage submersible well pump designed to provide constant pressure for domestic water supply, liquid transfer, irrigation, and environmental applications.
The Grundfos CU302 Constant Pressure Controller is required for this pump to operate as a constant pressure system and is sold separately.
Key Features
- Permanent Magnet Rotor Motor (MSE3) — Delivers optimum efficiency across a wide load range while maintaining consistent constant pressure performance.
- Floating Impeller Design with Tungsten Carbide/Ceramic Bearings — Each stage features its own independent bearing, maximizing durability and reducing wear under continuous operation.
- Comprehensive Built-In Motor Protection — Guards against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature for worry-free operation.
- IP68-Rated Enclosure with Soft Start Technology — Fully submersible motor with soft starting capability reduces mechanical stress and extends overall pump service life.
- 3-Stage Multi-Depth Performance — Rated for flow range of 3–15 US GPM across 60–220 ft of head, covering a wide range of residential well depth requirements.
The 10SQE05-160 is constructed from stainless steel AISI 304 throughout both the pump and motor housing, delivering superior corrosion resistance for long-term submersible installation.
With a rated flow of 10 GPM and a rated head of 160 ft, this pump is well suited for domestic constant pressure systems requiring reliable mid-range depth performance at a compact form factor.
The 2-wire design, replaceable end cover with socket, and direct-on-line start method make the 10SQE05-160 one of the easiest pumps in its class to install and commission on site.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10 SQE05-160 |
| Product No. | 96160183 |
| Rated Flow | 10 GPM |
| Rated Head | 160 ft |
| Flow Range | 3–15 US GPM |
| Head Range | 60–220 ft |
| Motor Type | Permanent Magnet (MSE3) |
| Power | 1/2 HP |
| Rated Voltage | 1 x 200–240V |
| Mains Frequency | 60 Hz |
| Rated Speed | 10,500 RPM |
| Start Method | Direct-on-line (2-Wire) |
| Enclosure Class | IP68 |
| Pump Outlet | 1 1/4" NPT |
| Minimum Borehole Diameter | 2.90 in (74 mm) |
| Height (Pump & Motor) | 30.4 in (772 mm) |
| Max Liquid Temperature | 104°F |
| Pump Material | Stainless Steel AISI 304 |
| Impeller Material | Polyamide w/ Tungsten Carbide Bearings |
| Approvals | cULus |
