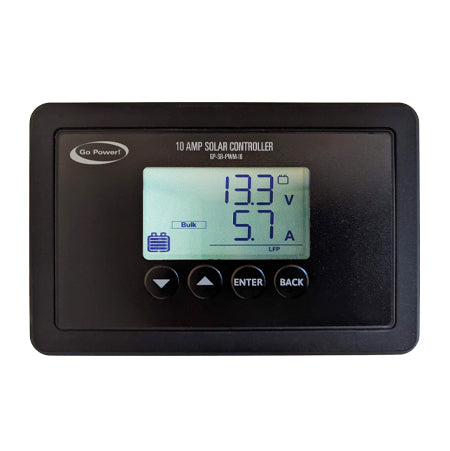

The GP-SB-PWM-10 is a 12-volt, single-bank, photovoltaic charge controller that uses advanced Pulse Width Modulation (PWM) technology. This device is designed to regulate the flow of solar power into your battery bank, ensuring optimal charging while preventing overcharging. Ideal for small solar systems up to 200 watts, it provides a cost-effective solution for maintaining your batteries in top condition, whether you're using lead-acid or lithium batteries.

Key Features:

• 10A PWM technology: Efficiently regulates power from the solar array to the batteries, protecting them from overcharging.
• 4-stage charging: Bulk, Absorption, Float, and Equalize stages maximize battery life and performance.
• LCD display: Real-time display of charging current, battery voltage, and state of charge, for easy monitoring.
• Multiple battery profiles: Supports Sealed, Gel, AGM, Flooded, and LiFePO4 (lithium) batteries, making it versatile across different systems.

This controller is also equipped with built-in protections against reverse polarity, short circuit, overvoltage, and over-temperature conditions, making it highly reliable for outdoor use. Its compact, flush-mount design makes installation simple, and the unit includes heavy-duty terminals to ensure a low-resistance connection. With its temperature compensation feature, the GP-SB-PWM-10 adjusts charging based on ambient temperature, ensuring your batteries are charged optimally in varying conditions.

Key Specifications:

Feature	Specification
Nominal System Voltage	12V
Maximum Solar Array Current	10A
Max Solar Power	200W
Battery Voltage Range	6V – 16V
Max Solar Panel Input Voltage	28V
Operating Temperature	-40 to 60°C (-40 to 140°F)
Dimensions (H x W x D)	4.02 x 5.2 x 1.26 in
Weight	260g (9.2oz)
Warranty	5 years
