Description

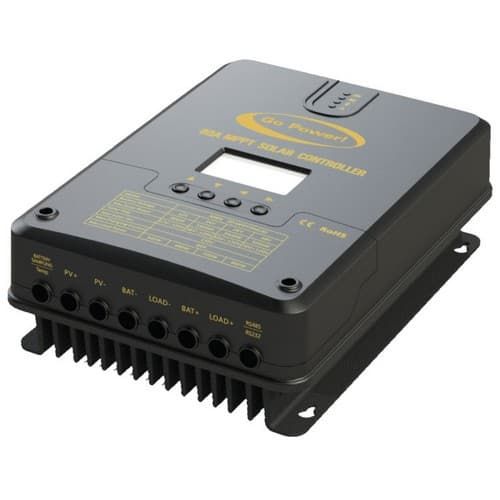

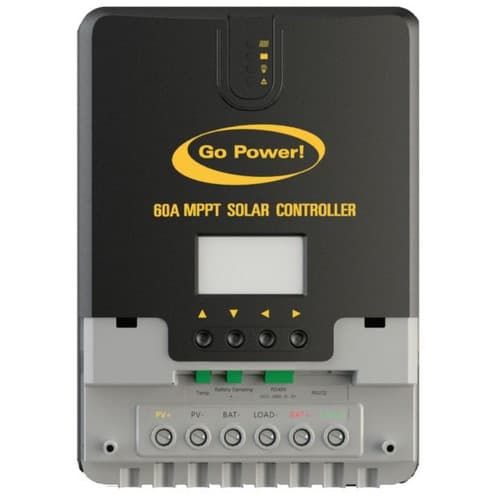

The Go Power GP-MPPT-PRO-60 is a powerful 60-amp MPPT solar charge controller designed to optimize solar energy collection and charging for battery systems in RVs, boats, and off-grid applications. Featuring advanced Maximum Power Point Tracking (MPPT) technology, this controller ensures that your solar panels operate at maximum efficiency, even under varying sunlight conditions.
Key Features:
- Up to 98% Efficiency: Maximizes energy conversion from solar panels, ensuring more power for your batteries.
- 150VDC Input: Supports a maximum PV input voltage of 150VDC, allowing for large solar arrays.
- Multiple Battery Compatibility: Works with lead-acid (sealed, gel, flooded) and lithium battery types.
- Real-Time Display: The built-in backlit digital display shows key performance metrics such as charge current and battery status.
The GP-MPPT-PRO-60 also includes temperature compensation for efficient charging in diverse environments and supports expansion by adding additional controllers to accommodate larger solar arrays. Optional accessories include a remote display and Bluetooth monitoring capabilities for real-time control via the Go Power! Connect app, giving users complete visibility of their system performance.
Key Specifications:
| Feature | Specification |
|---|---|
| System Voltage | 12/24/36/48V (auto-recognition) |
| Max Charge Current | 60A |
| Max Panel Input Voltage | 150VDC |
| Max PV Power Input | 1040W/12V, 2080W/24V, 3120W/36V, 4160W/48V |
| Conversion Efficiency | Up to 98% |
| Temperature Compensation | Yes |
| Dimensions | 11.22 x 8.07 x 3.66 inches |
| Weight | 7.9 lbs |
| Battery Types Supported | Lead Acid (Sealed, Gel, Flooded), Lithium |
| Warranty | 5 years |
