Description

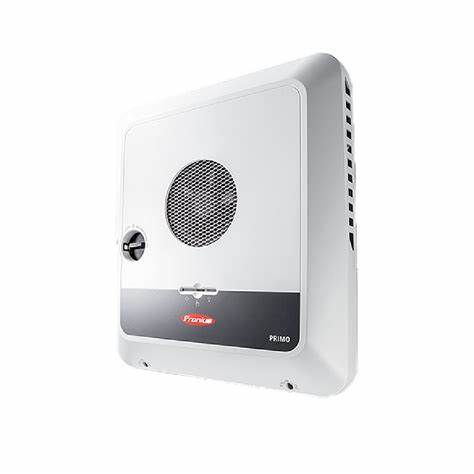

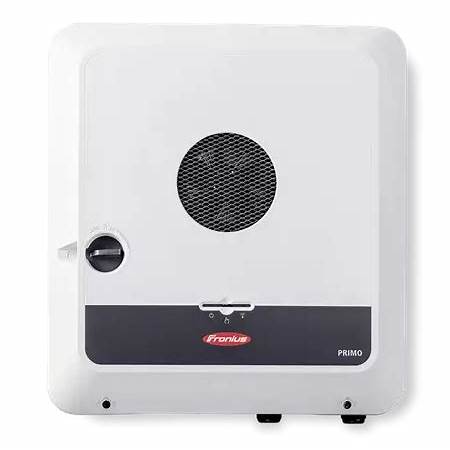

A next-generation hybrid inverter built for homeowners who want outstanding PV efficiency today and resilient backup tomorrow. The Primo GEN24 Plus 7.7 delivers 7.7 kW at 208/240 V with dual MPPTs, a wide DC window, and Fronius SuperFlex stringing that adapts to complex roofs.
Out of the box you get PV Point—a dedicated outlet that powers essential devices directly from the array during daytime outages. Add an approved high-voltage battery and required BOS to enable Full Backup for whole-home or essential loads.
Active Cooling preserves output in hot climates, while integrated data logging, Ethernet/WLAN, and open Modbus/JSON keep commissioning and monitoring simple. With AFCI, RSD-readiness, and an integrated DC switch, the GEN24 Plus is a code-friendly, serviceable backbone for reliable residential systems aiming for low LCOE and high uptime.
Technical Specifications
| Category | Specification |
|---|---|
| AC output (grid) | 7,700 W continuous @ 1-phase 208/240 V, 60 Hz |
| Backup modes | PV Point (socket, PV-only daytime) · Full Backup with approved HV battery & BOS |
| MPPTs / inputs | 2 independent MPPTs; multi-string capable |
| Max DC voltage | 600 V DC |
| Usable MPP range | ~80–480 V (variant dependent) |
| Max input current | up to 22 A per MPPT (model dependent) |
| Max short-circuit current | up to ~36–41 A (per MPPT; check exact table) |
| Efficiency | ~98–99% (series typical) |
| Cooling | Active Cooling (fan-assisted) |
| Protection & safety | AFCI, integrated DC disconnect, RSD-ready; anti-islanding per UL/IEEE |
| Communications | Integrated datalogger; Ethernet/WLAN; Modbus/JSON |
| Enclosure | IP66 (indoor/outdoor) |
| Dimensions / weight | ~595 × 529 × 180 mm; ~26 kg (model dependent) |
