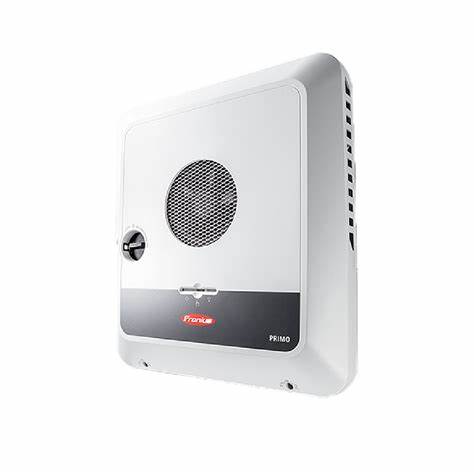

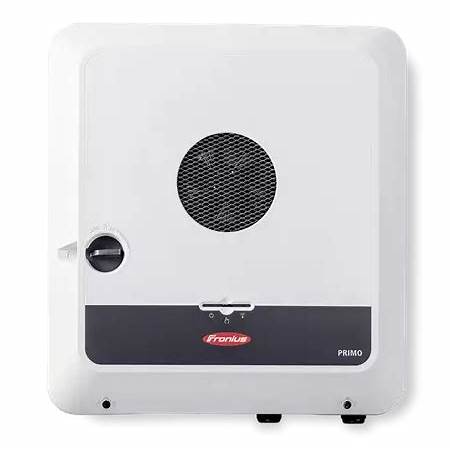

The Primo GEN24 10.0 is a next-gen, single-phase 240 V inverter designed to run solar today and add storage tomorrow. The GEN24 Plus variant is hybrid/battery-ready: it offers two backup modes—PV Point (basic, socket-level backup directly from PV when the sun is shining) and Full Backup (whole/essential-loads backup when paired with an approved high-voltage battery and Fronius components).
Active-cooling keeps power output high even in heat, while SuperFlex Design and dual MPPTs make stringing simple on complex roofs. Commissioning is app-based; monitoring, data logging, Ethernet/WLAN, and open interfaces (Modbus/JSON) come built-in. With UL-listed safety (AFCI, RSD), fast switchover to backup, and IP66 weather protection, the GEN24 Plus is a robust backbone for residential and light C&I sites targeting low LCOE and resilient backup.
Technical Specifications
| Category | Specification |
|---|---|
| AC output (grid) | 10,000 W continuous @ 240 V, 1-phase (208/220/240 V supported) |
| Backup modes | PV Point (basic socket backup); Full Backup with HV battery & required BOS |
| Switchover (typ.) | PV Point ≈ 22 s; Full Backup ≈ 17 s |
| MPPTs / inputs | 2 independent MPPTs; multi-string capable |
| Max PV voltage | 600 V DC (design per datasheet) |
| MPP voltage window | ~80–480 V (variant-dependent) |
| Start/feed-in voltage | ~80 V (typical) |
| Efficiency | Peak/weighted ≈98–99% (series typical for HD-Wave/GEN24) |
| Cooling | Active cooling (fan-assisted) for high-temperature power retention |
| Protection | AFCI, integrated DC switch, RSD-ready; anti-islanding per UL |
| Enclosure | IP66 outdoor/indoor |
| Communications | Integrated datalogger; Ethernet/WLAN; open APIs (Modbus/JSON) |
| Dimensions / weight | ~595 × 529 × 180 mm; ~26 kg |
| Certifications | UL 1741 (SA/SB), IEEE 1547, NEC 690 compliance (with proper RSD) |
