Description

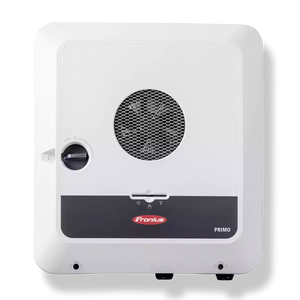

Shaded roofs and uneven strings don't have to mean lost output. The Primo GEN24 6.0 optimizes power at the string level and comes ready for a battery whenever you decide to add one.
Key Features
- Shade Smarts: Dynamic Peak Manager squeezes more output from partially shaded strings, no extra hardware needed.
- Sun-Powered Backup: PV Point runs a dedicated outlet during an outage, no battery required.
- Runs Cooler, Lasts Longer: Active cooling keeps internal parts from overheating over years of use.
- Battery-Ready: A future software upgrade unlocks full battery storage and backup power.
- Remote Access: WLAN and dual Ethernet ports connect straight to Fronius Solar.web.
Two MPP trackers and a 65-600V DC input window mean this inverter isn't picky about your string layout. Mixed roof angles and orientations aren't a problem.
It tops out at 97.6% efficiency and shrugs off weather with a Type 4X housing. Rated from -40°F up to 140°F, so it's just as at home in Phoenix as it is in Fargo.
AFCI, DC disconnect, and reverse polarity protection are all built in. Certified to UL 1741 and NEC 2023, and assembled in Austria.
Technical Specification
| Item | Specification |
|---|---|
| Model | Primo GEN24 6.0 208-240 |
| AC Rated Power | 6,000W |
| Max Output Power | 6,000VA |
| Number of MPPT | 2 |
| DC Input Voltage Range | 65 - 600V |
| MPP Voltage Range (Rated Power) | 200 - 480V |
| Max Usable Input Current | 22A / 12A (MPPT1/MPPT2) |
| Max PV Generator Output | 9,000 Wpeak |
| Nom. AC Output Current | 27.6A (208V) / 25A (240V) |
| Frequency Range | 50/60 Hz (45-66 Hz) |
| Power Factor | 0.8 - 1 ind./cap. |
| Max Efficiency | 97.6% |
| CEC Efficiency | 97.0% |
| Battery Input Voltage Range | 150 - 455V |
| Weight | 33.24 lbs |
| Dimensions | 20.4 x 18.7 x 6.5 in |
| Protection Class | Type 4X |
| Cooling | Active Cooling Technology |
| Ambient Operating Temp | -40°F to 140°F |
| Certifications | UL 1741, UL1998, IEEE 1547, NEC 2023 Article 690 |
