Description

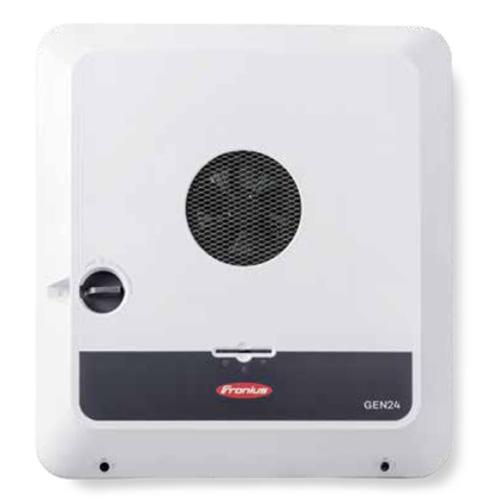

Fronius 5.0kW Primo GEN24 Plus Inverter, 208/240 VAC, Single-Phase, 200–480 VDC MPPT is a versatile residential solar inverter designed for efficient grid-tied operation with added backup-ready capability. As part of the GEN24 Plus platform, it delivers reliable DC-to-AC power conversion while enabling homeowners to prepare for energy resilience and future system expansion.
Designed for single-phase residential applications, the Primo GEN24 Plus 5.0 supports a wide MPPT voltage range that allows flexible PV string design based on roof layout and site conditions. Its transformerless architecture improves efficiency, reduces system weight, and simplifies installation, making it suitable for both new solar installations and residential upgrades where performance and flexibility are priorities.
Key Features:
-
High-Efficiency Power Conversion: Optimized design maximizes usable solar energy and minimizes conversion losses.
-
Wide MPPT Voltage Range: 200–480 VDC input supports flexible photovoltaic string configurations.
-
Single-Phase Residential Output: Compatible with 208/240 VAC home electrical systems.
-
GEN24 Plus Backup Capability: Designed to support backup power functionality when paired with compatible components.
-
Integrated Monitoring Display: Provides real-time visibility into system performance and operating status.
-
Indoor/Outdoor Installation: Rugged enclosure supports a wide range of installation environments.
-
Grid-Compliant Safety Features: Built-in anti-islanding and protection functions for utility compliance.
The Fronius Primo GEN24 Plus 5.0 features a compact, durable enclosure engineered for long-term residential operation. Active cooling and intelligent thermal management help maintain consistent performance across varying environmental conditions, while integrated monitoring simplifies system oversight for both homeowners and installers.
With comprehensive safety protections such as DC and AC surge protection, ground fault monitoring, and anti-islanding safeguards, the Primo GEN24 Plus 5.0 ensures safe and compliant operation. It is an excellent choice for homeowners looking to combine efficient solar production with backup readiness, backed by Fronius engineering and a future-ready inverter platform.
Key Specifications:
| Specification | Details |
|---|---|
| Nominal AC Output Power | 5.0 kW |
| AC Voltage | 208 / 240 VAC, Single Phase |
| AC Frequency | 50 / 60 Hz |
| MPPT Voltage Range | 200 – 480 VDC |
| Max DC Input Voltage | 480 VDC |
| Number of MPPTs | 1 |
| Inverter Topology | Transformerless |
| Installation Type | Indoor / Outdoor |
| Monitoring | Integrated display |
| Weight | 34 lbs (15.4 kg) |
| Manufacturer Warranty | Standard Fronius warranty |
