Description

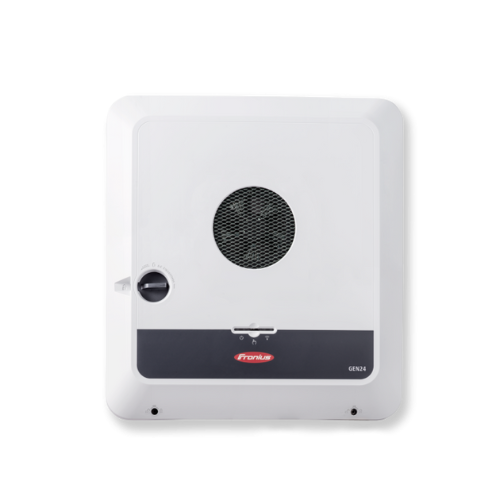

Fronius 10.0kW Primo GEN24 Plus Inverter, 208/240 VAC, Single-Phase, 260–480 VDC MPPT is a powerful residential solar inverter engineered for high-output single-phase systems and designed for efficient grid-tied performance with future backup capability. As part of Fronius’ GEN24 Plus platform, it combines robust DC-to-AC conversion with flexible voltage handling and intelligent system monitoring.
Designed for modern single-phase residential applications, the Primo GEN24 Plus 10.0 supports a wide MPPT voltage range that allows for optimized PV string configurations, tailored to complex roof layouts and varying solar conditions. Its transformerless design improves energy conversion efficiency and reduces overall system weight, making installation straightforward and serviceable.
Key Features:
-
High-Efficiency Power Conversion: Optimized inverter architecture maximizes usable solar energy while minimizing conversion losses.
-
Wide MPPT Voltage Range: 260–480 VDC input supports flexible array design and improved performance under diverse conditions.
-
Single-Phase Residential Output: Compatible with standard 208/240 VAC home electrical systems.
-
GEN24 Plus Backup Capability: Designed to support backup power functions when paired with compatible components.
-
Integrated Monitoring Display: Built-in interface provides real-time visibility into system performance and operational status.
-
Indoor/Outdoor Installation: Rugged enclosure supports a broad range of mounting environments.
-
Grid-Compliant Safety Features: Built-in anti-islanding protection and system safeguards for utility compliance.
The Fronius Primo GEN24 Plus 10.0 features a robust housing and active cooling system engineered for steady performance across varying environmental conditions. Its intelligent thermal management helps maintain consistent energy output and reduces stress on internal components, enhancing long-term reliability.
With comprehensive protection features such as DC and AC surge protection, ground fault monitoring, and anti-islanding safeguards, the Primo GEN24 Plus 10.0 ensures safe and compliant operation in residential applications. It is an excellent choice for homeowners seeking a high-output inverter that balances efficiency, monitoring capability, and the potential for backup-ready expansion.
Key Specifications:
| Specification | Details |
|---|---|
| Nominal AC Output Power | 10.0 kW |
| AC Voltage | 208 / 240 VAC, Single Phase |
| AC Frequency | 50 / 60 Hz |
| MPPT Voltage Range | 260 – 480 VDC |
| Max DC Input Voltage | 480 VDC |
| Number of MPPTs | 1 |
| Inverter Topology | Transformerless |
| Installation Type | Indoor / Outdoor |
| Monitoring | Integrated display |
| Weight | 62 lbs (28.1 kg) |
| Manufacturer Warranty | Standard Fronius warranty |
