Description
The Fortress Power Guardian Gateway is a professional-grade cloud-connected monitoring device engineered to deliver complete battery-level visibility, remote firmware management, live technical support access, and warranty submission capability for all connected Fortress Power battery systems — all from a single companion app available on iOS and Android.
Key Features:
- Automatic Battery Discovery via Wi-Fi — Connects to the Cloud Instantly: The Guardian automatically discovers all connected Fortress Power batteries upon setup, delivering immediate cloud connectivity without manual configuration of individual battery units.
- Comprehensive Battery-Level Monitoring — SOC, Voltage, Current, and Temperature: Provides real-time monitoring of every critical battery parameter including State of Charge, voltage, current, and battery temperature for complete system visibility from anywhere in the world.
- Remote Firmware Updates — Keep Batteries Current Anywhere, Anytime: Update battery firmware remotely through the companion app without requiring a technician on site, ensuring every battery in the system always runs the latest software.
- Live Chat with Technical Support Engineers — Direct from the App: Connect instantly with Fortress Power technical support engineers through live chat directly within the companion app, with the ability to share installation and monitoring data for faster, more accurate issue resolution.
- Warranty Submission and Support Ticket Management from the App: Submit product warranties, open support tickets, and securely share installation data with Fortress Power support engineers — all without leaving the Guardian companion app.
The Fortress Power Guardian Gateway is the essential monitoring backbone for any Fortress Power battery installation. By connecting the entire battery system to the cloud, the Guardian transforms a standalone energy storage deployment into a fully connected, remotely manageable, and professionally supported system that installers and homeowners can monitor and control from any device, anywhere in the world.

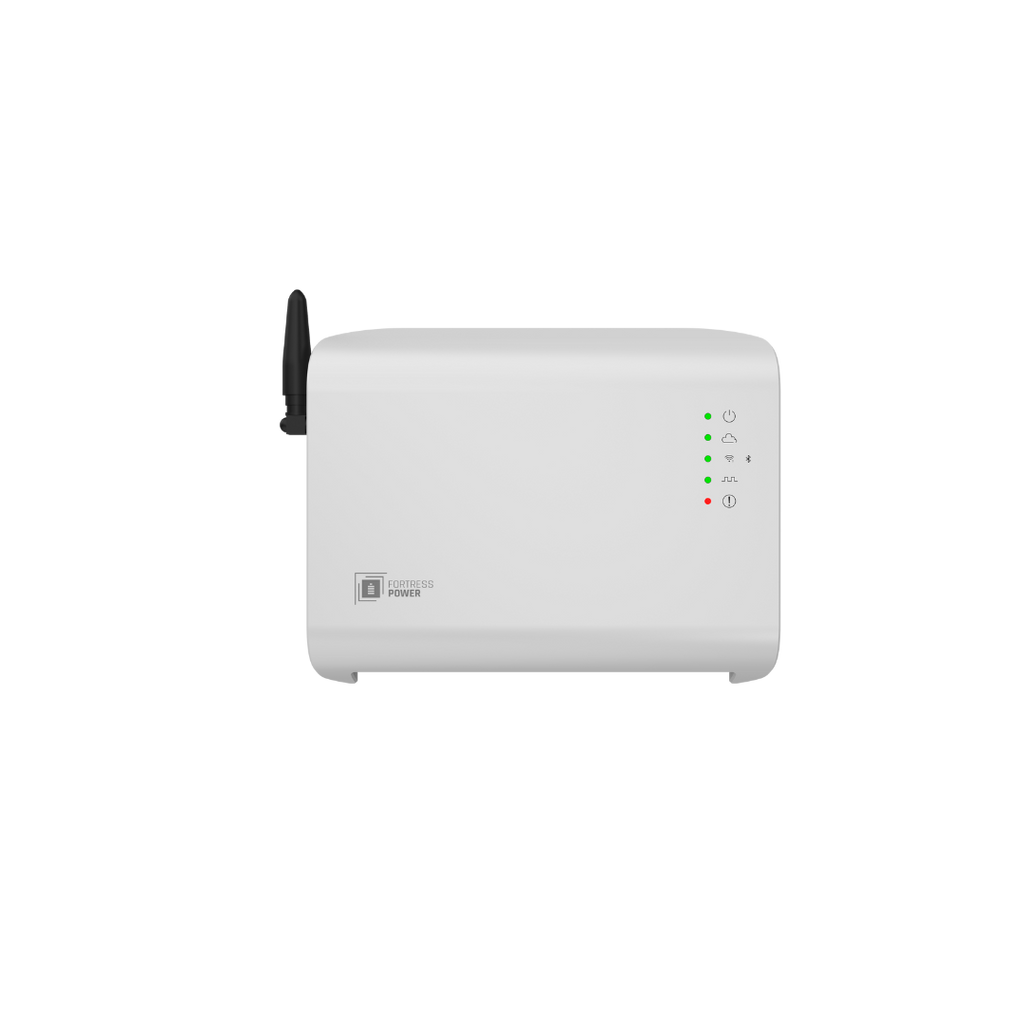

Mounted on the DIN rail inside the DuraRack, FlexTower, or any compatible enclosure, the Guardian's five status LEDs provide at-a-glance system health confirmation covering power status, cloud connection, Bluetooth/Wi-Fi connectivity, serial battery communication, and error signals — ensuring any issue is immediately visible without requiring access to the app. Its compact 0.8 lb form factor and DIN rail mount make installation clean, fast, and completely unobtrusive within any enclosure.
Supporting MODBUS/TCP, MODBUS/RTU, and CAN 2.0 communication protocols, the Guardian is designed to communicate with the full range of Fortress Power battery systems with maximum compatibility and reliability. Available on both iOS and Android, the Guardian companion app delivers professional-grade energy storage management in the palm of your hand.
Technical Specifications
| Specification | Guardian Gateway |
|---|---|
| ELECTRICAL | |
| Power Consumption | 5W — 24V @ 1A Power Supply |
| AC/DC Adapter | 120V / 5A, 24V DC, 5.5mm |
| Supported Communication Types | 1x MODBUS/TCP, 2x MODBUS/RTU, 2x CAN 2.0 |
| Operation Frequency | 2.4GHz |
| PHYSICAL | |
| Weight (Device Only) | 0.8 lbs (0.4 kg) |
| Shipping Package Weight | 2 lbs |
| Dimensions — Device (W x H x D) | 7.25 x 6 x 1.25 in |
| Shipping Package Dimensions (W x H x D) | 14 x 8.5 x 2 in |
| Housing | IP23 |
| Mounting System | DIN Rail Mount |
| STATUS DISPLAY LEDs | |
| LED 1 | Power |
| LED 2 | Cloud Connection |
| LED 3 | Bluetooth / Wi-Fi Connection |
| LED 4 | Serial Communication with Battery |
| LED 5 | Error Signal |
| MONITORING | |
| Battery Parameters | State of Charge, Voltage, Current, Temperature |
| Remote Firmware Updates | Yes |
| Warranty Submission | Yes |
| Live Technical Support Chat | Yes |
| Support Ticket Management | Yes |
| Mobile App | Guardian — iOS and Android |
