Description

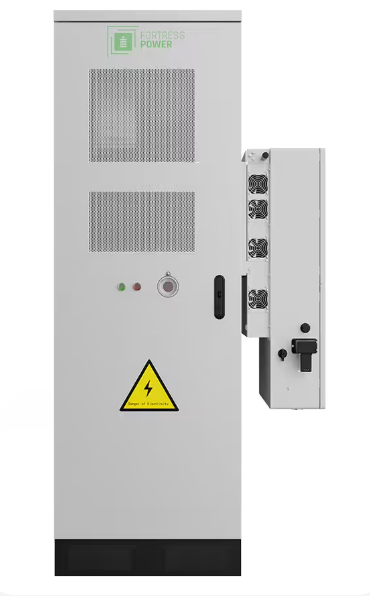

The larger capacity option for indoor commercial installs, this 60kWh cabinet keeps the same LFP chemistry and modular design as its smaller counterpart, built for mechanical rooms and covered spaces.
Key Features
- Indoor-Rated Enclosure: IP20 protection suits mechanical rooms and other covered installation spaces.
- Modular Cabinet Design: Combines with additional units for expanded capacity as project demand grows.
- Tier 1 LFP Chemistry: Lithium Iron Phosphate cells deliver high thermal stability and long-term reliability.
- Advanced BMS: Real-time monitoring, balancing, and protection across the full battery pack.
- Long-Term Warranty: 10-year coverage with 70% capacity retention at 8,000 cycles.
A 12-rack configuration delivers 61.44 kWh of usable nominal energy, built around a 1P192S pack layout at 100Ah nominal cell capacity.
Nominal voltage runs at 614.4 Vdc, operating within a 537.6-691.2 Vdc range to match compatible eSpire Nano inverters.
Discharge and charge current tops out at 100A, matching the 40kWh unit's output ceiling despite the added capacity.
Technical Specification
| Item | Specification |
|---|---|
| Model | FP-Nano-S12-I |
| Rated Battery Capacity | 60 kWh |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Nominal Capacity | 100 Ah |
| Pack Configuration | 1P192S |
| Rack Configuration | 12 |
| Nominal Energy | 61.44 kWh |
| Nominal Voltage | 614.4 Vdc |
| Operating Voltage Range | 537.6 - 691.2 Vdc |
| Max Discharge/Charge Current | 100 A |
| Enclosure Rating | IP20, Indoor |
| Operating Temperature | -4°F to 122°F |
| Warranty | 10 Years, 70% Retention at 8,000 Cycles |
