Description

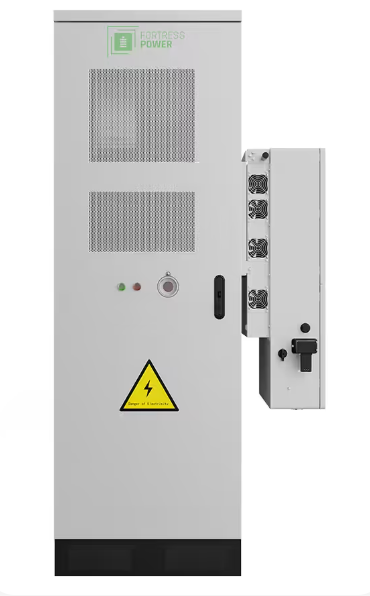

Double the output of the 30kW model in the same outdoor-rated footprint — the 60K variant handles larger commercial loads while keeping solar and battery integration in a single unit.
Key Features
- High-Capacity Output: Delivers a steady 60kW of continuous AC power on 480 VAC three-phase, four-wire service.
- Quad MPPT Design: 4 MPPT inputs support up to 8 PV strings for flexible solar array configuration.
- Outdoor-Rated Enclosure: NEMA 4X rating withstands harsh outdoor conditions without a separate housing.
- Parallel Scalability: Supports paralleling multiple units for expanded commercial power capacity.
- Integrated RSD Transmitter: Built-in APsmart rapid shutdown transmitter simplifies code compliance.
With 4 MPPT trackers and a 150-850V operating window, this inverter handles up to 100kW of usable PV input for larger commercial arrays.
A 97.8% efficiency rating holds steady across both inverter and DC-DC round trip performance, keeping conversion losses to a minimum.
Rated for -4°F to 122°F operation, it's backed by a 10-year warranty covering 8,000 cycles at 70% capacity retention.
Technical Specification
| Item | Specification |
|---|---|
| Model | FP-Nano-60K-N |
| Rated Output Power | 60 kW |
| Rated Input/Output Voltage | 480 Vac, 3P4W |
| Rated Current | 72.2 A |
| Max Current Passthrough | 144.4 A |
| Backup Switch Time | <10ms |
| MPPT Number / Max Strings | 4 / 8 |
| Operating MPPT Voltage Range | 150-850 V |
| Max Usable PV Input Power | 100 kW |
| Inverter Efficiency | 97.8% |
| Enclosure Rating | NEMA 4X / IP55 (IP20 indoor option) |
| Noise Level | ≤75dB @ 3.28 ft |
| Operating Temperature | -4°F to 122°F |
| Max Parallel Units | Up to 6 (TBC) |
| Communication | CAN, RS485, Ethernet (optional Wi-Fi, Cellular, LAN) |
| Certifications | UL1973, UL9540A, UL9540, UL1741, FCC Part 15, IEEE 1547 |
| Warranty | 10 Years, 70% Retention at 8,000 Cycles |
| Weight | 492 lbs (2 boxes per pallet, 40"x30"x40") |
