Description

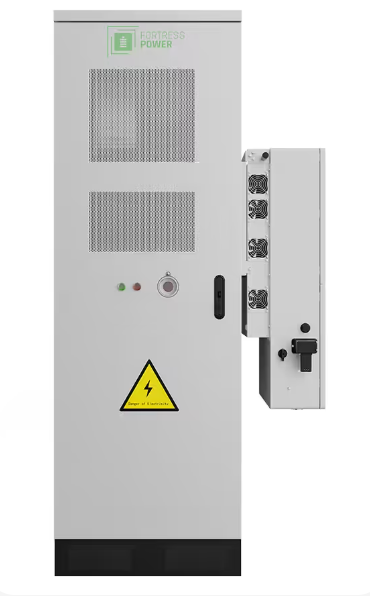

Modular by design, this 40kWh battery cabinet scales commercial energy storage up to 5 units in parallel, all rated for outdoor deployment.
Key Features
- Outdoor-Rated Enclosure: IP55 protection allows direct outdoor installation without extra housing.
- Modular Cabinet Design: Scales from a single 40kWh unit up to 5 units in parallel for larger capacity needs.
- Tier 1 LFP Chemistry: Lithium Iron Phosphate cells deliver high thermal stability and long-term reliability.
- Advanced BMS: Real-time monitoring, balancing, and protection across the full battery pack.
- Long-Term Warranty: 10-year coverage with 70% capacity retention at 8,000 cycles.
Nominal voltage sits at 409.6 Vdc, with an operating range of 358.4-460.8 Vdc across a 1P128S pack configuration.
Built on an 8-rack configuration, this unit delivers 40.96 kWh of usable nominal energy at a 100Ah nominal cell capacity.
Maximum discharge and charge current reaches 100A, supporting demand charge management and peak shaving applications.
Technical Specification
| Item | Specification |
|---|---|
| Model | FP-Nano-S8-O |
| Rated Battery Capacity | 40 kWh |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Nominal Capacity | 100 Ah |
| Pack Configuration | 1P128S |
| Rack Configuration | 8 |
| Nominal Energy | 40.96 kWh |
| Nominal Voltage | 409.6 Vdc |
| Operating Voltage Range | 358.4 - 460.8 Vdc |
| Max Discharge/Charge Current | 100 A |
| Enclosure Rating | IP55, Outdoor-Rated |
| Operating Temperature | -4°F to 122°F |
| Max Parallel Units | 5 |
| Warranty | 10 Years, 70% Retention at 8,000 Cycles |
