Description

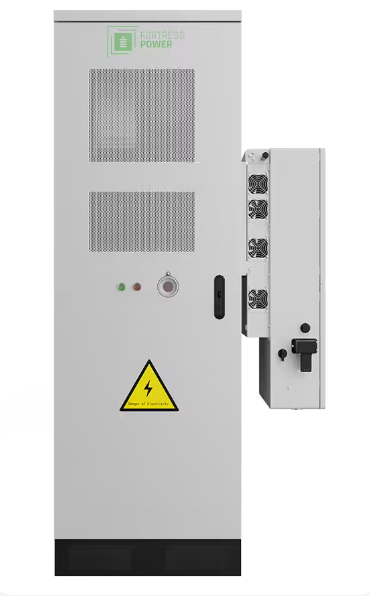

Grid-supporting and battery-ready, this 30kW inverter powers commercial energy storage systems with hybrid solar and battery integration, built for outdoor deployment.
Key Features
- Flexible AC Output: Delivers 26, 27.5, or 30kW depending on configuration, on 208/220/240 VAC three-phase power.
- Triple MPPT Design: 3 MPPT inputs support up to 6 PV strings for flexible solar array configuration.
- Outdoor-Rated Enclosure: NEMA 4X rating withstands harsh outdoor conditions without a separate housing.
- Parallel Scalability: Up to 6 units can be paralleled for expanded commercial power capacity.
- Fast Backup Switching: Backup switch time under 10ms keeps critical loads running through grid outages.
Solar input runs through 3 MPPT trackers with a 150-850V operating range, supporting up to 60kW of usable PV input power per inverter.
Inverter efficiency reaches 97.8%, with matching DC-DC round trip efficiency for minimal energy loss during charge and discharge cycles.
Built for reliability, this unit operates from -4°F to 122°F and carries a 10-year warranty rated for 8,000 cycles at 70% capacity retention.
Technical Specification
| Item | Specification |
|---|---|
| Model | FP-Nano-30K-L |
| Rated Output Power | 26 / 27.5 / 30 kW |
| Rated Input/Output Voltage | 208/220/240 Vac, 3P4W |
| Rated Current | 72.2 A |
| Max Current Passthrough | 144.4 A |
| Backup Switch Time | <10ms |
| MPPT Number / Max Strings | 3 / 6 |
| Operating MPPT Voltage Range | 150-850 V |
| Max Usable PV Input Power | 60 kW |
| Inverter Efficiency | 97.8% |
| Enclosure Rating | NEMA 4X / IP55 (IP20 indoor option) |
| Noise Level | ≤75dB @ 3.28 ft |
| Operating Temperature | -4°F to 122°F |
| Max Parallel Units | 6 |
| Communication | CAN, RS485, Ethernet (optional Wi-Fi, Cellular, LAN) |
| Certifications | UL1973, UL9540A, UL9540, UL1741, FCC Part 15, IEEE 1547 |
| Warranty | 10 Years, 70% Retention at 8,000 Cycles |
| Weight (Shipping, 2 Boxes/Pallet) | 492 lbs |
