Description

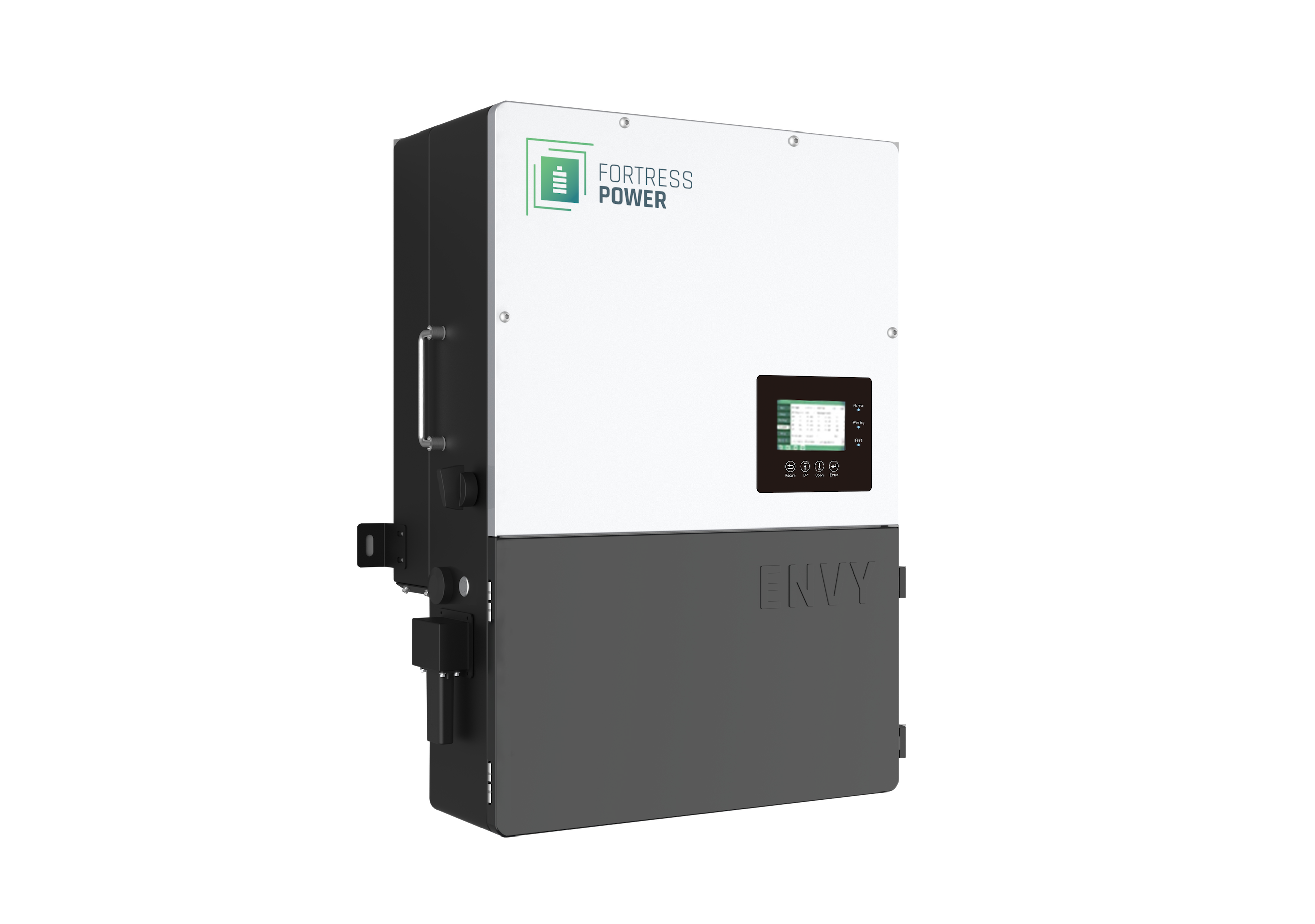

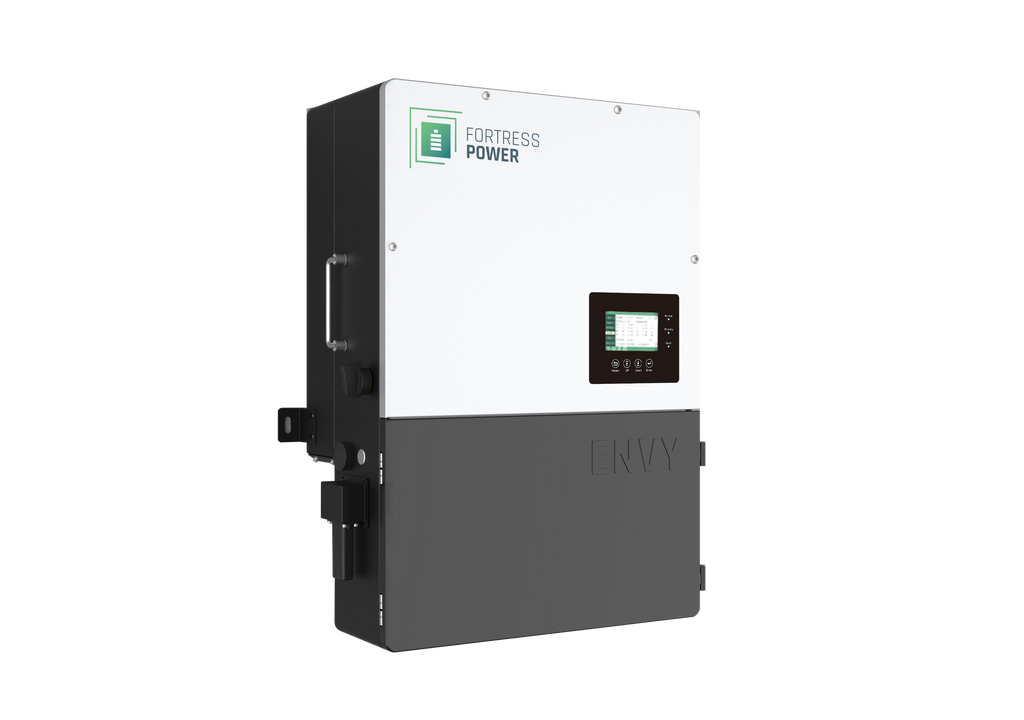

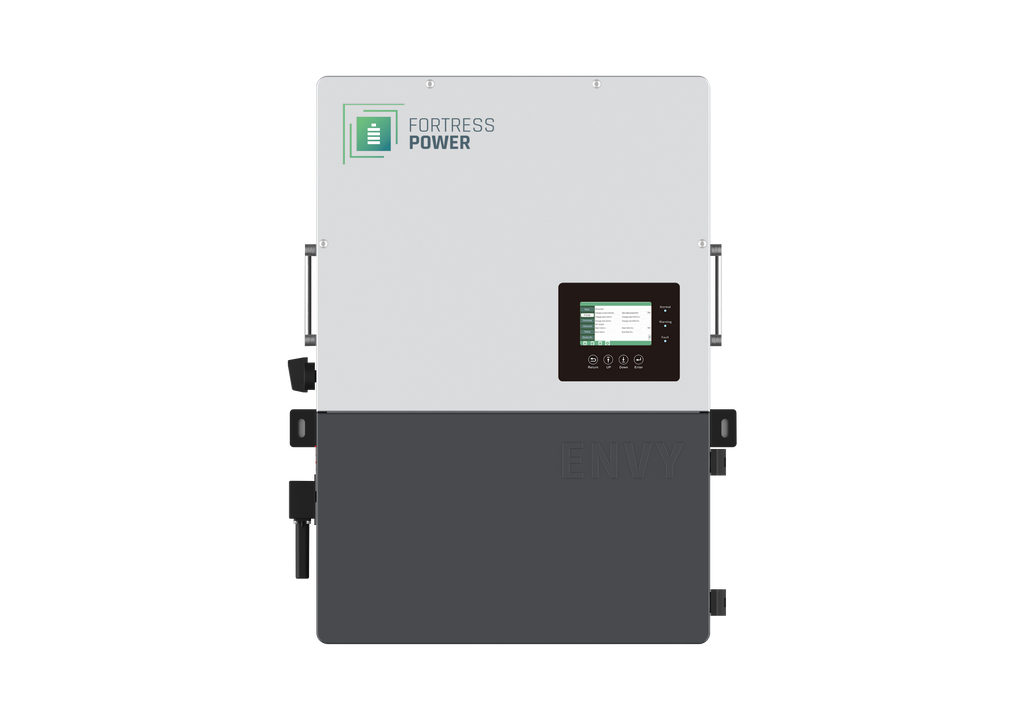

The Fortress Power Envy 8K is a whole-home solar storage inverter engineered for maximum versatility across backup, off-grid, grid-tied, and zero-export applications.
Key Features
- Dual MPPT with 13kW PV Input Capacity: Two independent MPPT channels each handle up to 6,000W, supporting large solar arrays with a 100–600V DC input range.
- Built-In APsmart Rapid Shutdown: Integrated RSD transmitter and button quickly de-energizes the PV array to protect first responders, with Tigo transmitter compatibility as well.
- IP65 / NEMA 4X Rated Enclosure: Fully rated for both indoor and outdoor installation, offering superior protection against dust, moisture, and harsh environmental conditions.
- Built-In AC and DC Breakers: Integrated 63A AC breakers for grid, load, and generator connections plus a 250A DC battery breaker eliminate the need for external disconnect hardware.
- Scalable to 80kW: Up to 10 units can be paralleled for a combined output of 80kW, making the Envy 8K a powerful foundation for whole-home and light commercial microgrids.
The Envy 8K delivers 8,000W of continuous AC output at 240V with a 16kW peak surge capacity for 500ms, handling the heaviest motor-start loads in whole-home applications without interruption. Its AC passthrough capability supports up to 21,000W from grid or generator to connected loads, and the dedicated 50A auto-start generator port with 12kW generator input capacity ensures seamless backup power integration. The color LCD touchscreen provides intuitive on-site control with local and remote monitoring via the companion app.
With support for 9 distinct application modes — including time-of-use, peak shaving, net metering, zero export, and virtual power plant — the Envy 8K adapts to virtually any utility interconnection or energy management strategy. AC, DC, and combined AC/DC coupling options provide the flexibility to integrate existing solar assets or design new systems from the ground up. Certified to UL1741, UL1741SB, IEEE1547A, and Rule 21, the Envy 8K meets the most demanding utility interconnection requirements across all major US markets.
Technical Specification
| Specification | FP-ENVY-8K |
|---|---|
| Max PV Input Power | 13,000W |
| Max PV Power to Battery & AC Outputs | 12,000W |
| Max DC Input Power per MPPT | 6,000W / 6,000W |
| DC Input Voltage Range | 100 – 600V (550V Max Recommended) |
| Nominal DC Input Voltage | 360V |
| Full Power MPPT Voltage Range | 170 – 500V |
| Max DC Input Current | 25A / 25A |
| MPPT Channels / Strings per MPPT | 2 / 2 |
| Continuous AC Output to Grid | 8,000W @ 240V |
| Continuous AC Load w/ Grid or Generator | 21,000W AC Passthrough / 12,000W GEN |
| Nominal Output Voltage | 120V / 240V |
| Max Continuous AC Current | 33.3A @ 240V |
| Nominal AC Frequency | 50Hz / 60Hz |
| Max Off-Grid Output Power | 8,000W |
| Peak Power | 16kW / 500ms |
| Switching Time | <20ms |
| Dedicated Generator Port | 50A / 12kW (Auto-Start) |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40 – 60V |
| Max Charging/Discharging Current | 167A |
| Max Charging/Discharging Power | 8,000W |
| Compatible Battery Types | eVault Max, eFlex, LFP-10 MAX, Other Lithium (Open-Loop), Lead Acid |
| MPPT Efficiency | 99.9% |
| Max Efficiency | 97.5% |
| CEC Efficiency | 96.5% |
| Anti-Islanding Protection | Yes |
| AFCI | Yes |
| SPD Protection | Yes |
| RSD | Built-in APsmart Transmitter (Tigo Compatible) |
| Ingress Protection | NEMA 4X, IP65 |
| Communication | RS485 / WiFi / CAN |
| Display | Color Touch LCD |
| Ambient Temperature Range | -13°F – 140°F (-25°C – 60°C) |
| Cooling | Fan |
| Dimensions (H×W×D) | 750 × 520 × 285mm (29.5 × 20.5 × 11.23 in) |
| Weight | 110 lbs (50 kg) |
| Certifications | UL1741, UL1741SB, IEEE1547A, Rule 21, ISO-NE, FCC Part 15 Class B, HECO, CEC, Luma |
| Warranty | 10 Years |
