Description

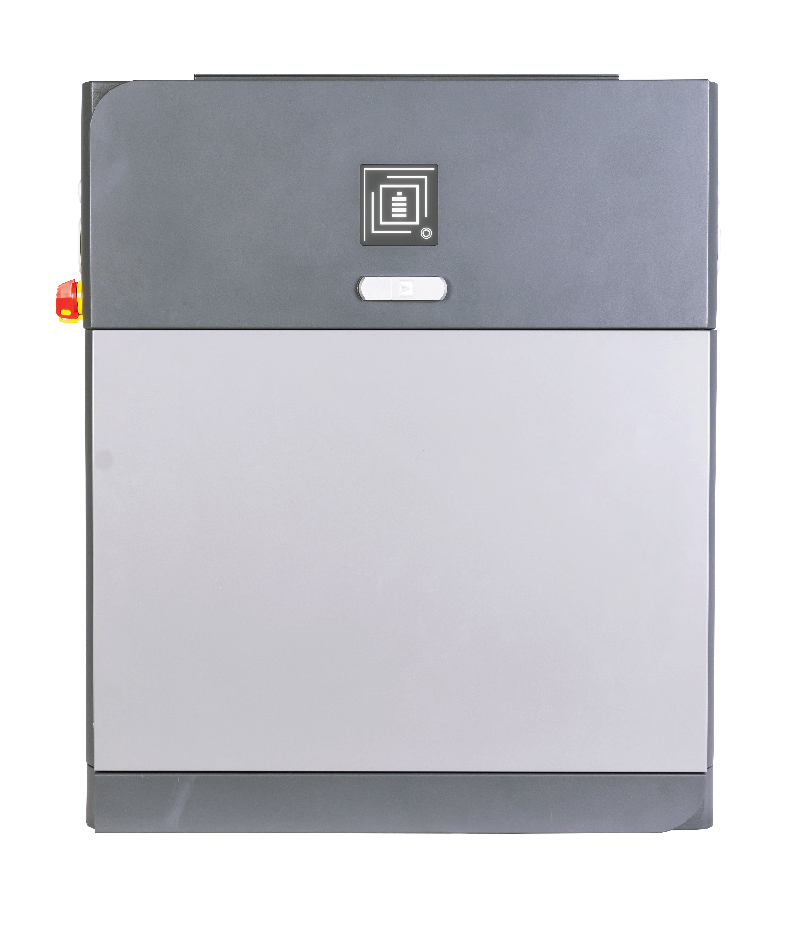

The Fortress Power eForce 9.6kWh Complete Starter Kit is a fully integrated, plug-and-play energy storage solution that combines the 9.6kWh LFP battery module with the eWay wireway and steel mounting base — delivering everything needed for a clean, professional, code-compliant whole-home energy storage installation in a single package.
Key Features:
- 9.6kWh of Premium LFP Energy Storage — Expandable Up to 268.8kWh: Start with a single 200Ah module and scale vertically to 28.8kWh per stack or expand laterally with up to 16 parallel units as energy demands grow.
- Integrated eWay with 750A Busbar, Battery Combiner, and Emergency Disconnect: The included eWay wireway delivers factory-built AC/DC cable management, a 750A busbar, lockable power disconnect, Guardian antenna port, and real-time LED status indicator in one clean enclosure.
- Everything Included — Battery Cables, Wire Management, and Floor Mount: This kit ships complete with battery cables, battery combiner, wire management, and the steel floor mount base — no additional accessories required for a full installation.
- Quick-Plug Wireless Stacking Technology — Zero Inter-Module Cables: Battery terminals click directly into place between modules, eliminating inter-stack cabling and dramatically reducing installation time and labor costs.
- Industry-Leading 15-Year Warranty When Paired with Envy Inverter: When installed as a complete system with the Fortress Power Envy inverter and Guardian Gateway, this kit qualifies for Fortress Power's industry-leading 15-year warranty coverage.
The Fortress Power eForce 9.6kWh Starter Kit is the ideal entry point for homeowners and installers building a whole-home energy storage system from the ground up. The eForce module's Tier-1 prismatic 15-cell LFP chemistry delivers 8,000 cycles of proven performance, while the eWay and base provide the professional infrastructure foundation that makes every installation faster, cleaner, and built to last.
Designed for both on-grid and off-grid applications, this kit supports backup power, zero export, net metering, time-of-use optimization, peak shaving, and smart load management right out of the box. With RS485, Wi-Fi, and CAN communication and a SGIP-rated efficiency of 92% with any paired Envy inverter, this kit delivers maximum system performance from day one.
Technical Specifications
| Specification | eForce 9.6kWh + eWay and Base Kit |
|---|---|
| KIT CONTENTS | |
| Battery Module | 1x eForce 9.6kWh Module |
| Wireway and Base | 1x eForce eWay and Base |
| Battery Combiner | Included |
| Battery Cables | Included |
| Wire Management | Included |
| Floor Mount | Included |
| EFORCE 9.6 BATTERY MODULE | |
| Cell Type | Tier-1 Prismatic 15-Cell LFP |
| Nominal Energy | 9.6 kWh |
| Nominal Capacity | 200 Ah |
| Nominal Voltage | 48V |
| Re-charge Voltage | 46V |
| Cut-off Voltage | 42V |
| Operating Voltage Range | 39–54V |
| Bulk/Absorption Charge | 51.5V |
| Closed-Loop Charge/Discharge | 120/160 A |
| Open Loop Charge/Discharge | 100/100 A |
| Max Charge/Discharge | 195/195 A |
| Surge Discharge Power (10s) | 14,400W |
| Maximum Short-Circuit | 3000A, 5ms |
| SGIP-Rated Efficiency with Envy | 92% |
| Cycle Life @ EOL 70% | 8,000 Cycles |
| Maximum Units in Parallel | 16 |
| Weight | 269 lbs |
| Dimensions (W x D x H) | 30.89 x 9.08 x 33.79 in |
| Ingress Protection | IP65 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Communication | RS485 / Wi-Fi / CAN |
| Mounting Options | Ground-Mount, Floor Standing, Wall-Mounted (Separate Accessory) |
| Warranty | 10 Years Standard / 15 Years with Envy Inverter + Guardian Gateway |
| eWAY AND BASE | |
| Integrated Busbar Rating | 750A |
| Power Disconnect | Lockable, Taggable |
| Guardian Antenna Port | Included |
| Status Interface | Backlit LED Status Indicator |
| AC/DC Cable Management | Integrated Pre-Aligned Cable Pathways |
| Conduit Ports | Multiple Diameter Knockout Ports |
| Emergency Switch | Included |
| Base Construction | Durable Steel Platform |
| Max Stacked Modules Supported | Up to 3 eForce Modules |
| Compatible Inverters | Envy 8kW, Envy 10kW, Envy 12kW |
| CERTIFICATIONS | |
| Safety Standards | UL1973, ANSI/CAN/UL9540:2023, UL9640A |
| Listings | CEC, LUMA, oGPE |
| Transportation | UN38.3 |
