Description

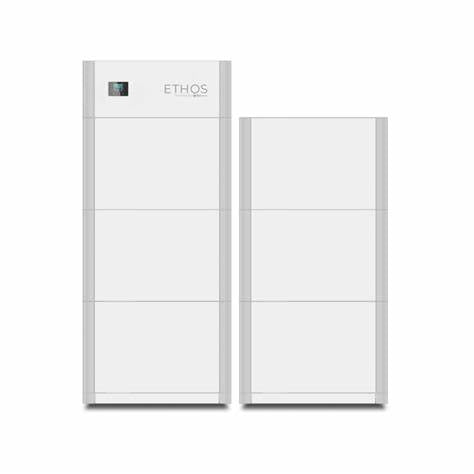

The Ethos 30.7 kWh Stackable Battery System is a premium, high-capacity energy storage solution engineered for large residential and commercial power applications. Built from six 5.12 kWh modules, this configuration provides over 30 kWh of usable energy — ideal for full-home backup, large solar systems, and microgrids requiring extended autonomy and scalability.
Key Features
-
Massive 30.7 kWh Capacity: Six 5.12 kWh modules combined for exceptional energy storage.
-
Advanced LiFePO₄ Technology: Delivers superior safety, reliability, and long cycle life.
-
Smart Power Management: Integrated BMS with CANBus / RS485 communication ensures intelligent control.
-
Pre-Engineered Stack System: Factory-tested with control box and pre-terminated cables for simple setup.
-
Industrial-Grade Protection: IP65-rated aluminum housing suitable for indoor or semi-outdoor use.
Product Overview
The Ethos 30.7 kWh Stackable Battery System combines six Ethos 51.2 V / 100 Ah LiFePO₄ modules in parallel, offering a robust and scalable solution for demanding energy needs. Its modular design provides exceptional flexibility — you can start small and expand later as your system grows.
Each Ethos module includes its own smart Battery Management System (BMS) to ensure real-time monitoring, cell balancing, and protection against over-voltage, over-current, and temperature extremes. When stacked, the included Ethos Control Box manages communication between modules and your inverter, providing a clean plug-and-play installation experience.
With over 95 % round-trip efficiency and a cycle life of up to 8,000 cycles at 80 % depth of discharge, the Ethos 30.7 kWh delivers exceptional long-term performance. Its IP65 enclosure ensures protection from dust and moisture, allowing for flexible mounting in protected outdoor or indoor environments.
Designed for energy independence, this high-capacity stack supports residential microgrids, off-grid cabins, small businesses, and large solar arrays. The Ethos line is also certified to major international safety standards, ensuring reliability and compliance.
Technical Specifications
| Specification | Details |
|---|---|
| Configuration | 6 × Ethos 5.12 kWh Modules |
| Nominal Voltage | 51.2 V |
| System Voltage | 48 V nominal |
| Total Capacity | 30.72 kWh (600 Ah) |
| Cell Configuration | 16S × 6P |
| Charging Voltage Range | 55.6 – 57 V |
| Maximum Charge Voltage | 57 V |
| Operating Voltage Range | 48 – 57 V |
| Suggested Low Voltage Cutoff | 48 – 50.8 V |
| Maximum Continuous Discharge Current | 250 A |
| Peak Discharge Current | 300 A (≤ 5 s) |
| Maximum Charge Current | 200 A |
| Round-Trip Efficiency | ≥ 95 % |
| Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | 4,000 – 8,000 cycles @ 80 % DoD |
| Communication | CANBus / RS485 |
| Enclosure Rating | IP65 |
| Charge Temperature Range | 0 °C – 45 °C (32 °F – 113 °F) |
| Discharge Temperature Range | –20 °C – 60 °C (–4 °F – 140 °F) |
| Storage Temperature (SOC > 50 %) | –20 °C – 45 °C (–4 °F – 113 °F) |
| Dimensions (Approx.) | 170 × 674 × 2280 mm (6.7 × 26.5 × 89.8 in) |
| Weight (Approx.) | ≈ 270 kg (595 lbs) |
| Certifications | UL9540A, UL1973, UN38.3 |
| Design Life / Warranty | 10 + years / 10-year warranty |
Included in Kit
ETHOS 30.7 kWh (6 Module)
Included in Kit:
-
(6) FETHS-48051-G1 – 5.12 kWh Ethos Battery Modules
-
(1) CNT060 – Ethos Control Box
-
(1) CNT081 – Ethos Base (Base Only)
-
(2) CBL089 – Ethos Stack-to-Stack Power Cable Pair 4.9 ft (1500 mm)
-
(1) CBL090 – Ethos Stack-to-Stack Comm Cable 4.9 ft (1500 mm)
Applications
-
Whole-home backup and energy independence
-
Large off-grid residential or commercial systems
-
Renewable integration and load shifting
-
Hybrid solar and battery storage projects
-
Microgrid and community power systems
