Description

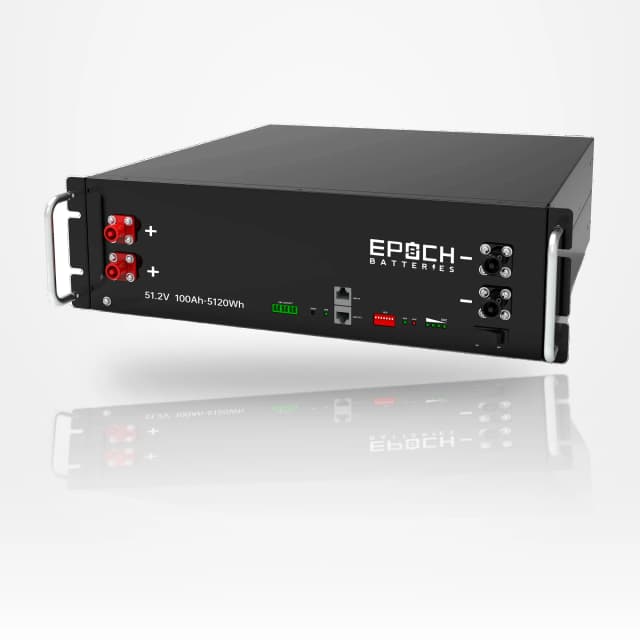

Power your solar, off-grid, or backup system with the Epoch SR48100H server rack LiFePO4 battery. Self-heating and rack-mount design deliver reliable performance in demanding installations.
Key Features
- High Capacity: Delivers 100Ah and 5.12kWh of nominal energy for robust 48V power.
- Self-Heating Technology: Automatically warms cells to enable charging in cold conditions.
- Wide Compatibility: Works with major inverter brands including Victron, SMA, and Deye.
- Long Cycle Life: Rated for 6,000+ cycles for years of dependable service.
- Flexible Installation: Rack, wall, floor, or stack mounted to fit any setup.
This LiFePO4 battery delivers a stable 51.2V nominal output in a compact 3U rack format. Its plug-and-play terminals simplify installation into new or existing systems.
Designed for flexibility, the battery charges from -10°C to 50°C and discharges down to -20°C with communication. It's suited for year-round use in varying climates.
Whether building a solar bank or backup power system, this battery supports up to 32 units in parallel. It's a scalable, low-maintenance foundation for growing energy needs.
Technical Specification
| Item | Specification |
|---|---|
| Model | SR48100H |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Usable Energy | 4.92kWh |
| Internal Resistance | ≤30mΩ |
| Charge Voltage | 56.0V |
| Float Voltage | 54.6V |
| Max Charge Current | 70A |
| Max Discharge Current | 100A |
| Peak/Surge Current | 200A (15s) |
| Cycle Life | ≥6,000 cycles |
| Communication | CAN/RS485 |
| Parallel Connection | Up to 32 in parallel |
| Terminal | Plug & Play |
| IP Rating | IP20 |
| Weight | 101.4 lbs |
| Dimensions | 17.4 x 18.1 x 5.2 in (3U) |
| Charge Temperature | -10°C to 50°C (with communication) |
| Discharge Temperature | -20°C to 50°C (with communication) |
| Self-Discharge Rate | ≤3%/month |
