Description
The Eno Scientific Well Sounder 2010 Pro delivers fast, accurate static water level measurements in wells, piezometers, and boreholes using advanced sonic technology.
Key Features:
- Automatic Temperature Compensation — Built-in probe compensation ensures accurate readings across varying field conditions.
- Integrated Data Logger — Logs data manually or automatically at intervals from 1 second to 60 minutes, storing up to 25 million time-stamped points.
- Extended 2 GB Non-Volatile Memory — Captures and retains massive datasets in CSV-compatible format, sortable by well ID via USB.
- Power Save Mode — Extends battery life up to 21 days in the field without external power.
- Interference Filtering — Configurable to ignore known well defects, delivering clean and reliable measurement results.
The Well Sounder 2010 Pro is engineered for professionals who demand precision in groundwater monitoring. It measures static water depths from 9 to 7,000 ft with a resolution of 0.05 ft.
Deployment couldn't be simpler — place the sensor into the well vent opening and readings appear within seconds. The 2 x 16 character LCD displays results in English or Metric units.

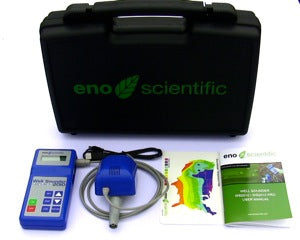

Backed by a rugged, field-ready design, this unit operates in temperatures from -10°F to 110°F. It comes complete in a heavy-duty carry case with everything needed for immediate use.
Technical Specifications
| Specification | Details |
|---|---|
| Measurement Units | English (decimal ft. or ft. & in.), Metric |
| Resolution | 0.05 ft. (1 cm) |
| Accuracy | 0.1 ft. (3 cm) |
| Range | 9 to 7,000 ft. (3 to 2,133 m) |
| Update Time | ~1 sec @ 500 ft. / ~4 sec @ 2,000 ft. |
| Time to First Fix | ~4 sec @ 500 ft. (150 m) |
| Memory | 2 GB non-volatile flash (25 million data points) |
| Auto Logging Rate | 1 second to 60 minutes per sample |
| Manual Logging | On key press |
| Internal Power | 6 AA Alkaline batteries |
| Battery Life | Up to 80 hours continuous / 21 days power saver |
| External Power (Optional) | 6.5 to 12 VDC at 80 mA max (do not exceed 16V) |
| Real Time Clock | Li-Ion 3V battery CR2032 |
| Operating Temperature | -10°F to 110°F (-20°C to 45°C) |
| Humidity | 10 to 90% non-condensing |
| Display | 2 x 16 character LCD |
| Max Well Diameter | 12" (unless sounding tube is used) |
| Meter Dimensions | 3.5" x 7.5" x 1.5" |
| Meter Weight | 0.875 lbs (14 oz.) |
| Probe Dimensions | 6" x 3" x 3" |
| Probe Tip Diameter | 5/8" (1.7 cm) |
| Cable Length | 70" (1.8 m) |
| Cable Weight | 0.813 lbs (13 oz.) |
| Shipping Dimensions | 13" x 17" x 5" |
| Shipping Weight | 5 lbs |
| Serial Port | Bi-directional 300–57,600 baud, 8 data bits, 1 stop bit |
| USB Port | File system access (mass storage device) |
| Flow Meter Input | Pulse counting (with adapter) |
