Description

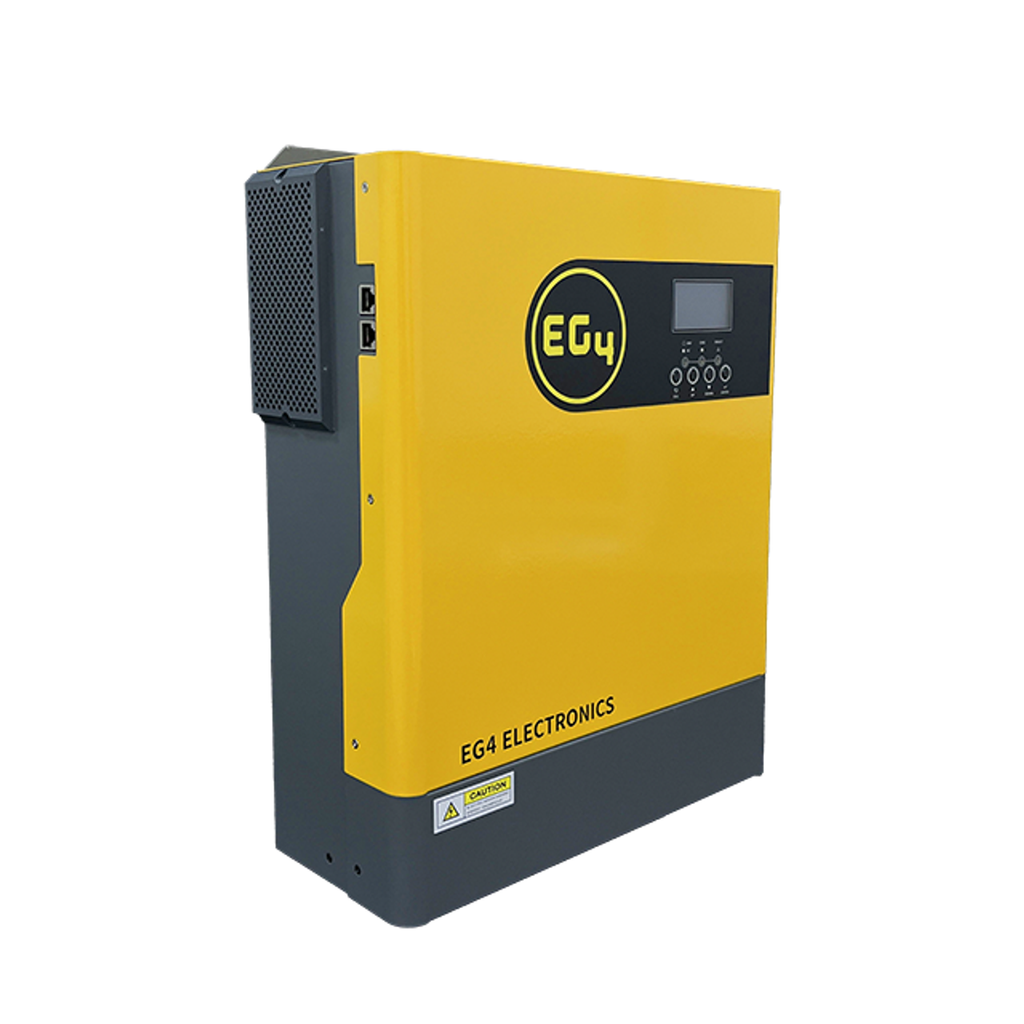

The EG4 3000EHV-48 is a versatile, all-in-one off-grid inverter/charger designed for residential and mobile solar applications. Combining a 3000W pure sine wave inverter, 5000W MPPT solar charge controller, and intelligent battery charger, this unit delivers reliable and efficient power management in a compact form factor.
Key Features
- Pure Sine Wave Output: Delivers clean and stable 3000W continuous power, suitable for sensitive electronics.
- High PV Input Voltage: Supports up to 500VDC, reducing wiring costs and eliminating the need for a combiner box.
- Scalable Parallel Operation: Connect up to 12 units for increased capacity in single-phase, split-phase, or three-phase configurations.
- Integrated MPPT Controller: Built-in 5000W MPPT controller with 97% efficiency optimizes solar charging.
- Comprehensive Protection: Features overload, over-temperature, and short-circuit protection for enhanced safety.
Ideal for off-grid homes, cabins, RVs, and small commercial setups, the EG4 3000EHV-48 ensures uninterrupted power supply with its robust design and advanced features. Its user-friendly LCD interface allows for easy configuration of charging parameters, input priorities, and system settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3000EHV-48 |
| Rated Power | 3000W / 3kVA |
| Output Voltage | 110/120VAC ±5% |
| Output Frequency | 50Hz / 60Hz (Auto Detection) |
| Surge Capacity | 6000W (5 seconds) |
| Efficiency | 94% (Battery to Inverter), 97% (PV to Inverter) |
| PV Input Voltage Range | 120VDC â 450VDC |
| Max PV Input Power | 5000W |
| Max PV Open Circuit Voltage | 500VDC |
| Max Charging Current (PV) | 80A |
| Battery Voltage | 48VDC |
| Max AC Charging Current | 60A |
| Max PV+AC Charging Current | 80A |
| Transfer Time | 10ms (UPS Mode), 20ms (Appliance Mode) |
| Parallel Capability | Up to 12 Units |
| Dimensions (H x W x D) | 17.6â x 11.6â x 4.1â (44.7 x 29.5 x 10.4 cm) |
| Weight | 21.6 lbs (9.8 kg) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (non-condensing) |
| IP Rating | IP21 |
| Warranty | 3 Years |
