Description

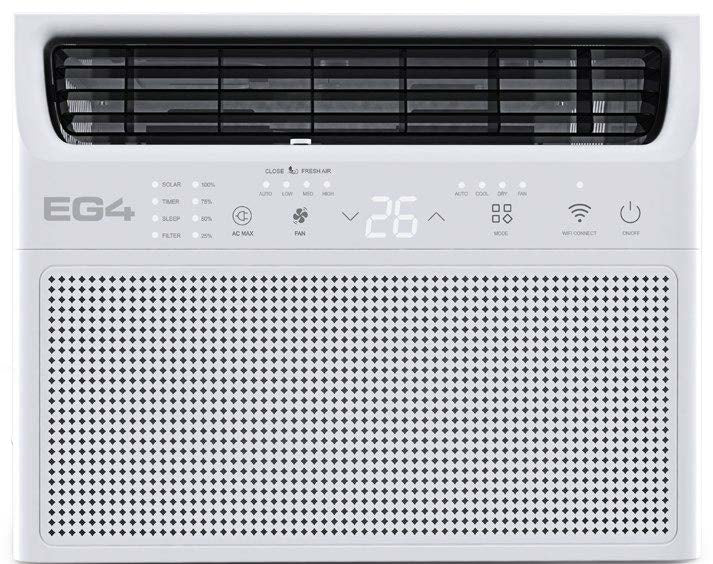

Grid down doesn't have to mean sweating it out. This window unit runs directly on solar power through an integrated MPPT, switching to grid power only when needed.
Key Features
- Dual Power Source: Integrated MPPT runs the unit directly on solar, with 120V AC as backup.
- Solar-Priority Logic: Programming favors solar input first, cutting utility costs during daily operation.
- Easy Installation: Fits standard double-hung windows and plugs into a normal outlet in minutes.
- App-Controlled: Solar Aircon app or included remote manages settings and monitors performance.
- Reliable Cooling: Delivers 12,000 BTU/h, enough for rooms up to 600 sq ft.
Rated at 1150W AC input power, this unit pulls up to 1700W maximum. A 1400W recommended solar array keeps it running efficiently off-grid.
Solar input runs through a single MPPT with a 75-350VDC voltage range. Maximum PV current tops out at 15A, with an open circuit voltage limit of 380VDC.
Built around R32 refrigerant, this unit operates in outdoor temperatures from 50°F to 131°F. It's backed by a 5-year warranty for long-term peace of mind.
Technical Specification
| Item | Specification |
|---|---|
| Model | DAWA1-ACDC1-12KR2(US) |
| Cooling Capacity | 12,000 BTU/h |
| Operating Range | 2,500 - 12,000 BTU/h |
| AC Input Voltage | 120V |
| AC Input Power | 1150W |
| Maximum Input Power | 1700W |
| Rated AC Current | 10.2A |
| AC Breaker Size | 20A |
| EER / CEER | 10.4 BTU/h / 14.2 |
| Recommended Solar Power | 1400W |
| Available MPPTs | 1 |
| Solar Input Voltage Range (VMP) | 75 - 350 VDC |
| Maximum PV DC Input (VOC) | ≤380 VDC |
| Maximum PV Current (ISC) | ≤15A |
| Refrigerant | R32 |
| Weight | 66 lbs |
| Dimensions (H x W x D) | 15" x 19" x 25" |
| Operating Noise | 52-56 dBA |
| Warranty | 5 Years |
