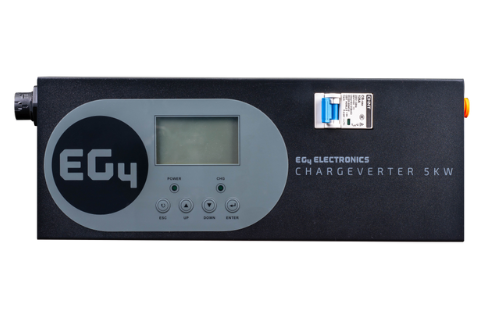

Introducing the EG4 Chargeverter-GC, a robust 48V battery charger engineered to deliver efficient and reliable charging solutions for both on-grid and off-grid energy storage systems. With its impressive 100A charging capacity, this charger ensures rapid replenishment of your battery bank, making it an indispensable component for maintaining uninterrupted power supply.
Key Features:
-
High Charging Capacity: Capable of delivering up to 100A, the Chargeverter-GC can charge a 5.12kWh battery in approximately one hour, ensuring your energy storage is swiftly ready for use.
-
Versatile AC Input Compatibility: Designed to operate with 120V, 208V, or 240V AC inputs, this charger offers flexibility to suit various power sources, including generators and grid connections.
-
Advanced Generator Integration: Equipped with dry contacts for generator start/stop control based on battery voltage or state of charge (SOC), the Chargeverter-GC optimizes generator usage, enhancing fuel efficiency and reducing wear.
-
Protective Charging Mechanism: The charger safeguards your system against poor-quality sine waves from lower-budget generators, ensuring the longevity and reliability of your energy storage components.
The EG4 Chargeverter-GC stands out with its user-friendly design and advanced features. Its adjustable charging current (0-100A) and voltage (43-57VDC) allow for tailored charging profiles to meet specific battery requirements. The built-in RS485 communication port facilitates seamless integration with EG4 batteries, enabling closed-loop communication for precise charging based on battery SOC.
Installation is straightforward, thanks to the included mounting brackets and cables, allowing for quick setup and immediate operation. Whether you're managing energy storage in unpredictable weather conditions or seeking a reliable charging solution for your off-grid setup, the EG4 Chargeverter-GC offers the performance and versatility needed to keep your power systems running smoothly.
Specifications:
| Specification | Details |
|---|---|
| Nominal Battery Voltage | 48VDC |
| Adjustable Charge Current | 0-100A |
| Adjustable Charge Voltage | 43-57VDC (Default at 54VDC) |
| Maximum Output Power | 5120W at 240VAC |
| AC Input Voltage Range | 90-264VAC |
| Maximum Input Current | 26A at 240VAC, 28A at 120VAC |
| Communication Port | RS485 (RJ45) |
| Dry Contacts | Generator start/stop control (NO, NC, C) |
| Dimensions (H x W x D) | 5” x 13.2” x 4.9” (127mm x 335mm x 124mm) |
| Weight | 13 lbs. (5.9 kg) |
| Warranty | 3 years (indoor use only) |
