Description

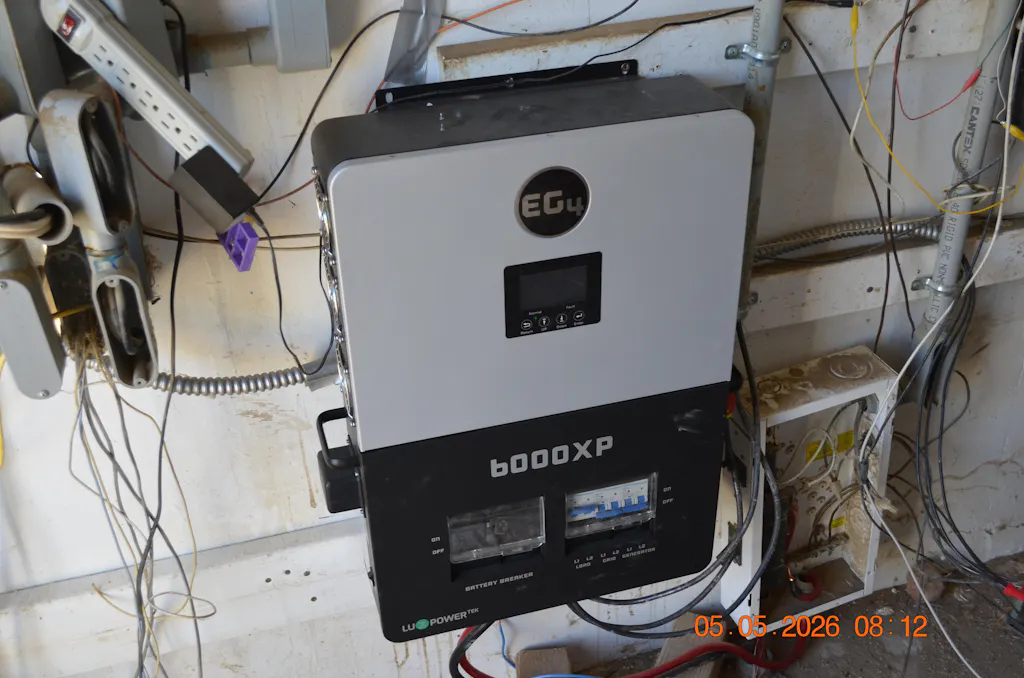

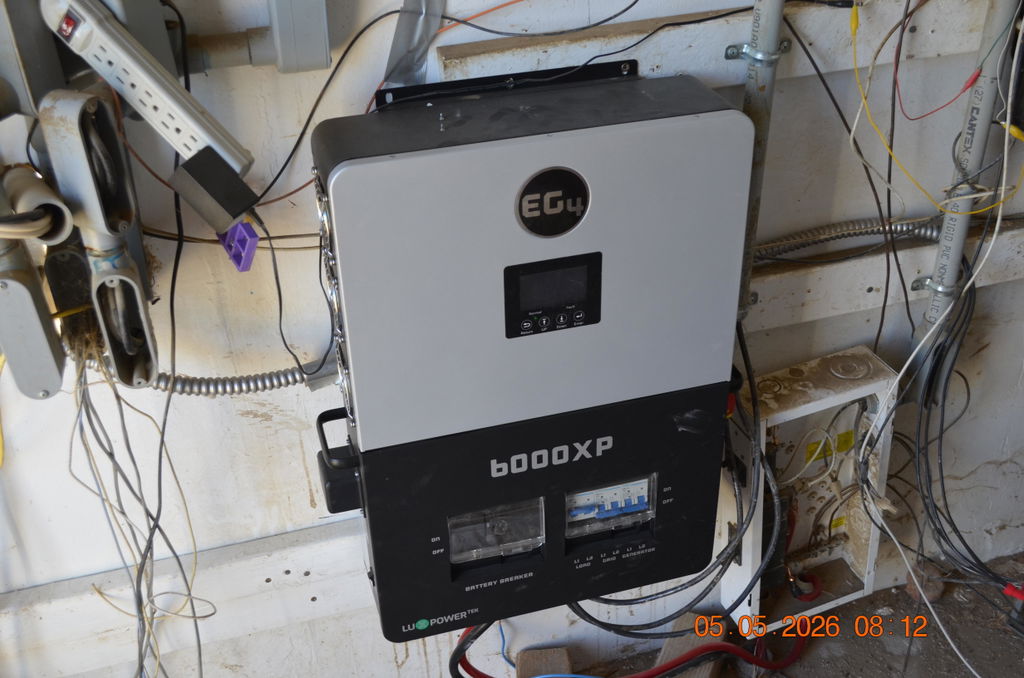

The EG4 6000XP Hybrid Inverter is a next-generation 48 V split-phase inverter/charger designed for both residential and light commercial energy systems. Engineered with advanced MPPT technology, parallel capability, and full hybrid functionality, it provides seamless integration for solar, battery, and generator backup.
This inverter delivers 6,000 W of continuous AC output, handles surges up to 12 kW, and accepts up to 8,000 W of PV solar input. With two independent high-voltage MPPTs, it maximizes energy harvest while providing flexible solar array configurations. The EG4 6000XP is both scalable and intelligent: users can parallel up to 16 units for 96 kW of total output, making it adaptable for larger projects.
Built for reliability, it features a 10 ms transfer time for uninterrupted power to sensitive equipment, a user-friendly EG4 monitoring app and web portal, and full compliance with UL1741 safety standards. Its rugged design and 5-year warranty ensure long-lasting performance in demanding applications.
Key Features
-
6 kW Continuous Output – Reliable split-phase AC power for residential and light commercial loads.
-
High Solar Input – Dual MPPTs support up to 8,000 W PV, 100–480 VDC range.
-
Scalable Design – Parallel up to 16 units for a maximum of 96 kW total output.
-
Fast Transfer Time – 10 ms switching keeps sensitive devices online.
-
High Surge Capacity – Up to 12,000 W surge for short-duration peak loads.
-
Smart Monitoring – Access performance data via EG4 app or web portal.
-
Flexible Battery Support – Works with 48 V lithium or lead-acid battery banks.
-
UL1741 Certified – Meets strict North American inverter safety and performance standards.
-
Compact & Lightweight – Only ~53 lbs, easy to mount and service.
-
5-Year Warranty – Manufacturer-backed for peace of mind.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EG4 6000XP Hybrid Inverter |
| Battery Voltage | 48 V nominal (Lithium & Lead-acid supported) |
| AC Output Power | 6,000 W continuous, 120/240 V split-phase |
| Maximum Solar Input | 8,000 W (4,000 W per MPPT) |
| MPPT Voltage Range | 100–480 VDC (nominal ~320 VDC) |
| Max PV Current | 17 A per MPPT (25 A short circuit) |
| Parallel Capability | Up to 16 units (96 kW total output) |
| Transfer Time | 10 ms |
| Surge Capacity | ~12,000 W (3.5 sec), ~134A |
| Monitoring | EG4 monitoring app & web interface |
| Certifications | UL1741 |
| Dimensions | 18 × 25.5 × 5.25 in (457 × 648 × 132 mm) |
| Weight | 52.9 lbs (24 kg) |
| Warranty | 5 Years |
