Description

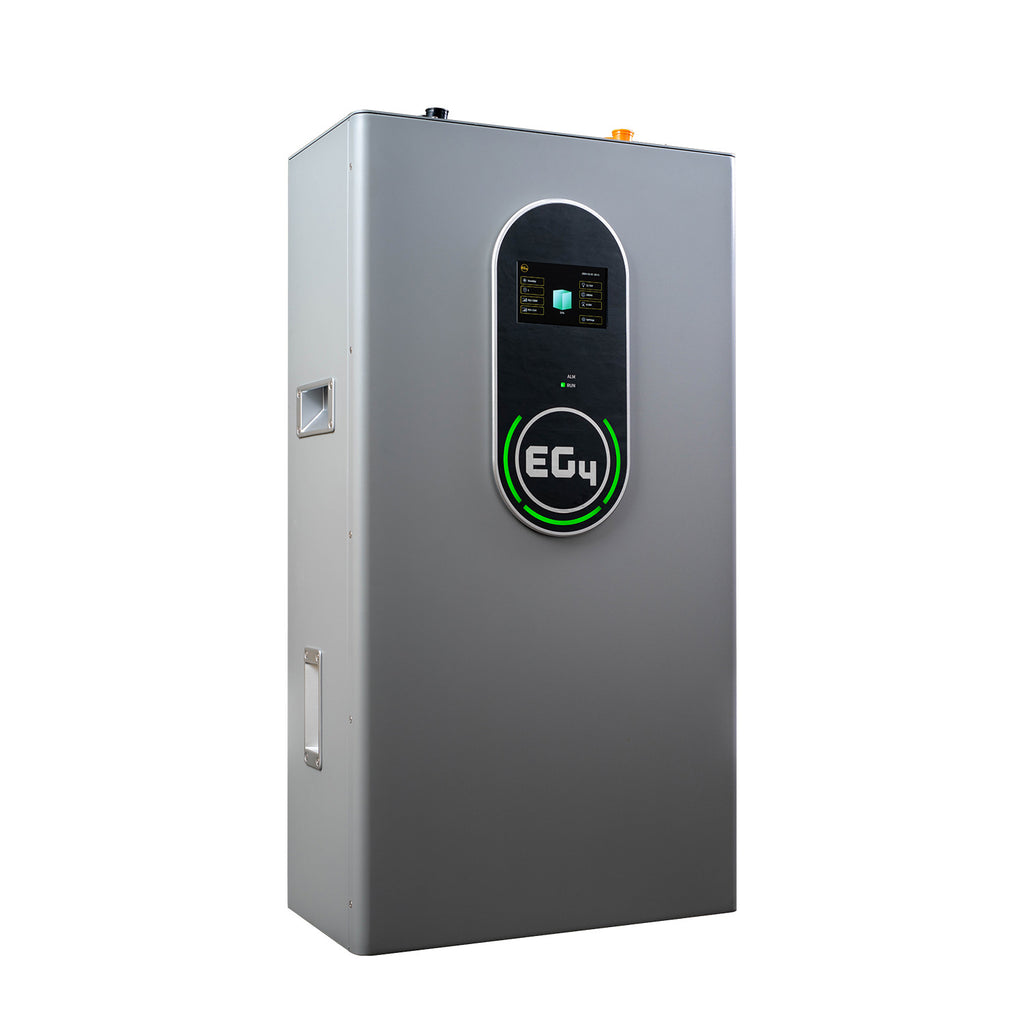

Elevate your energy storage solutions with the EG4 WallMount Indoor Lithium Battery. Designed for residential applications, this 48V 280Ah battery offers a substantial 14.3kWh capacity, ensuring reliable power for your home.
Key Features:
- High Capacity: 14.3kWh storage with a 48V 280Ah configuration.
- Advanced Safety: Integrated Battery Management System (BMS) with dual fire arrestors.
- User-Friendly Interface: On-board LCD touchscreen for real-time monitoring.
- Durable Design: Over 8,000 cycles at 80% Depth of Discharge (DoD).
Product Description:
The EG4 WallMount Indoor Lithium Battery is engineered to meet the demands of modern energy storage. Its 14.3kWh capacity, combined with a 48V 280Ah configuration, provides ample power for various residential needs. The integrated Battery Management System (BMS) ensures optimal performance and safety by monitoring cell voltage, current, and temperature in real-time. Dual on-board fire arrestors offer additional protection against thermal events.
An intuitive on-board LCD touchscreen allows for easy monitoring and control, facilitating seamless integration with inverters from brands like EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye. The battery's robust design supports over 8,000 cycles at 80% DoD, translating to a lifespan exceeding 15 years. Its integrated self-heating feature ensures reliable operation even in colder climates.
For enhanced safety, the battery includes an innovative emergency stop function, enabling rapid shutdown when necessary. The design also features integrated 600A busbars with multiple terminals, simplifying the process of paralleling batteries or connecting multiple inverters.
Specifications:
Specification | Details |
---|---|
Voltage | 51.2V |
Capacity | 280Ah |
Total Energy | 14.3kWh |
Charging Voltage | 56.0V (±0.8V) to 56.2V (±0.2V) |
Float Voltage | 54V (±0.2V) |
Charging Current | Up to 200A (continuous) |
Discharging Current | Up to 200A (continuous) |
Cycle Life | >8,000 cycles at 80% DoD |
Design Life | Over 15 years |
Weight | 282.2 lbs (128 kg) |
Certifications | UL1973, UL9540A |
Operating Temperature | Charge: 32°F to 113°F (0°C to 45°C) |
Discharge: -4°F to 122°F (-20°C to 50°C) | |
Storage Temperature | -4°F to 122°F (-20°C to 50°C) |
Ingress Protection | IP20 |
