Description

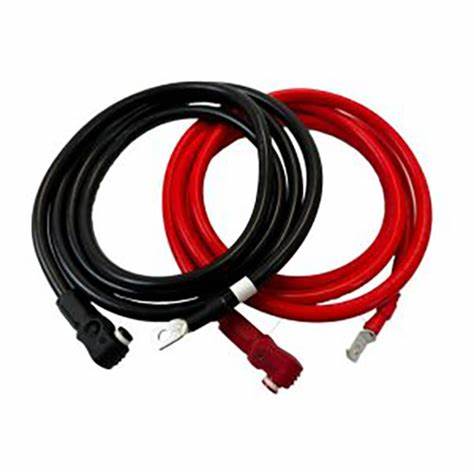

Pre-terminated, heavy-gauge DC cables for fast, code-friendly battery-to-inverter hookups. The 950-0070 kit ships with four leads—2× positive and 2× negative—so you can land dual conductors at the inverter or external busbar to minimize voltage drop and heat on high-current systems.
Purpose-built for Discover HELIOS (and compatible LV inverters), the set uses SurLok-style battery connectors and crimped ring lugs on the inverter side for clean dress, repeatable torque, and reliable service. Color-coded jackets, length-matched pairs, and UL-compliant construction keep commissioning quick and inspections straightforward.
Key Features
-
Four-lead kit (2+/2–): Parallel conductors reduce resistance on high-amp runs.
-
Pre-terminated: SurLok-type battery ends, ring lugs at inverter/busbar end for rapid installs.
-
UL-compliant build: Heavy-duty copper conductors with abrasion-resistant insulation.
-
Optimized length: Balanced, equal-length pairs for tidy routing and predictable voltage drop.
-
System ready: Designed for HELIOS; also usable with other 48 V LFP racks that accept SurLok-style terminations.
Technical Specifications
| Category | Specification |
|---|---|
| Kit contents | 4 cables total: 2× positive, 2× negative |
| Conductor size | 2/0 AWG (70 mm²) |
| Length (each) | 1.0 m (≈39.4 in) |
| Terminations | Battery side: SurLok-style connectors · Inverter side: ring lugs (M10 class; model dependent) |
| Use case | Battery → inverter or battery → external DC busbar |
| Compatibility | Discover HELIOS ESS and similar LV inverter/chargers |
| Application | High-current DC transfer; minimizes voltage drop and heat |
| Notable kit ID | 950-0070 (Battery-to-Inverter Cable Set) |
