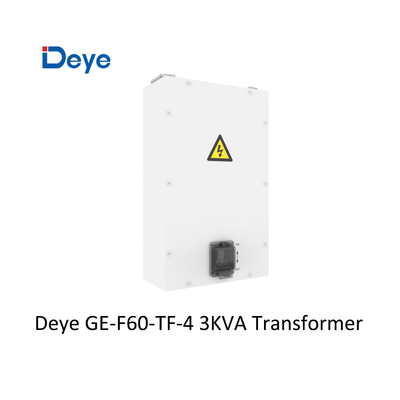

Deye GE-F60-TF-4 3KVA Control Transformer | For GE-F60 ESS Cabinet

The Deye GE-F60-TF-4 is a 3KVA control transformer module designed exclusively for installation inside or alongside the GE-F60 ESS cabinet, providing essential voltage transformation and isolation between internal battery and inverter circuits and control systems.

Key Features

• 3KVA Rated Control Transformer — Provides critical voltage transformation and circuit isolation between the GE-F60 battery and inverter systems for safe and reliable energy management operation.
• Flexible Mounting Positions — Engineered for internal or external cabinet installation with support for both left-side and right-side cabinet mounting configurations for clean professional deployment.
• Integrated Terminal Line & Transformer Assembly — Ships with internal transformer and terminal line block pre-assembled for straightforward wiring connection to neutral, phase, and ground lines.
• Compatible with Sol-Ark 30K and 60K Inverters — Purpose-built for the Deye GE-F60 ESS platform and compatible with Sol-Ark 30K and 60K commercial inverter systems.
• Simple 4-Step Mechanical Installation — Triangle steel bracket design with M6 hardware enables fast, secure attachment to the GE-F60 cabinet wall or enclosure top without specialized tooling.

The Deye GE-F60-TF-4 transformer module is a required accessory for GE-F60 energy storage systems that need voltage isolation and transformation between the high-voltage battery circuits and the ESS control systems. Its compact wall-mount enclosure integrates cleanly into the GE-F60 cabinet footprint without occupying additional floor space.

Supporting both internal and external cabinet installation, the TF-4 offers maximum flexibility for system designers and installers working within tight mechanical constraints. The supplied toothed bushing protects cable routing through the IN and OUT ports during internal cabinet installation, preventing cable damage during commissioning.

Wiring connects via neutral line, phase line L1, L2, or L3, and ground to the GE-F60 cabinet terminal block, with a built-in breaker switch for controlled power-on and power-off. The GE-F60-TF-4 is the approved and only compatible transformer solution for the Deye GE-F60 ESS platform.
