Description

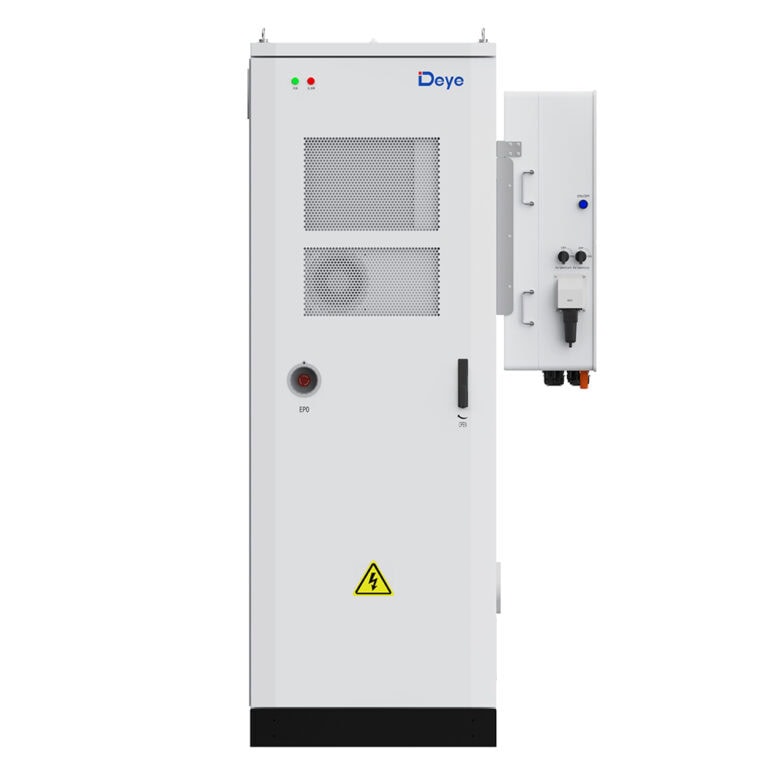

The Deye GE-F60 is a fully integrated 61.44 kWh floor-mounted Lithium Iron Phosphate Battery Energy Storage System featuring EMS, hybrid inverter, and BMS technology in a single IP55-rated enclosure with built-in aerosol fire suppression.
Key Features
- 61.44 kWh LiFePO4 System Energy | 12 Battery Modules — High-density Lithium Iron Phosphate chemistry with 90% depth of discharge, 1C/1C high-rate cyclic charge and discharge capability, and over 6,000 cycle life for demanding commercial applications.
- Integrated EMS, Hybrid Inverter & BMS Technology — All-in-one architecture with power supply redundancy design, black start function support, and full off-grid operation capability for maximum energy independence and resilience.
- Built-In Aerosol Fire Suppression System — Battery pack and system enclosure feature an integrated aerosol fire extinguishing solution with combustible gas sensors, smoke detectors, heat detectors, and active exhaust ventilation for comprehensive fire safety.
- IP55-Rated Enclosure | Air Conditioner Cooling — Industrial-grade sealed enclosure with integrated air conditioning cooling keeps battery temperature below 40°C during rated power operation for sustained high-performance output.
- Expandable to 360 kWh | Up to 10 Units in Parallel — Supports battery expansion up to a maximum of 360 kWh per system, with up to 10 inverter units connectable in AC parallel for a maximum combined output of 500 kW / 600 kWh.
The Deye GE-F60 is engineered for commercial and industrial facilities requiring a self-contained, high-capacity energy storage solution with advanced safety systems built directly into the cabinet. Compatible with Sol-Ark 30K and 60K inverters, the GE-F60 eliminates the need for separate system components and reduces installation complexity significantly.
Featuring active combustible gas emission fans, water immersion sensors, travel switches, and an aerosol fire suppression device, the GE-F60 delivers a level of safety architecture well beyond standard commercial battery systems. The floor-mounted cabinet with integrated air conditioning ensures the battery operates within optimal thermal parameters even during sustained high-rate charge and discharge cycles.
Scalable from a single 61.44 kWh standalone unit up to a maximum 360 kWh single-system or 600 kWh multi-inverter parallel configuration, the GE-F60 is the ideal platform for facilities requiring phased capacity growth. Certified to CE, IEC62619, IEC62040, and UN38.3 and backed by a 10-year warranty for long-term commercial deployment confidence.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GE-F60 |
| Kit Includes | Deye F60 Cabinet, 60 kWh Battery Bank with IP55 Enclosure, Cooling System, Fire Suppression System |
| Compatible Inverters | Sol-Ark 30K and 60K |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Battery Module Qty in Series | 12 Modules |
| Module Energy | 5.12 kWh |
| Module Nominal Voltage | 51.2V |
| Module Capacity | 100 Ah |
| System Nominal Voltage | 614.4V |
| System Operating Voltage | 480V – 700V |
| System Energy | 61.44 kWh |
| System Usable Energy | 55.29 kWh |
| Rated DC Power | 61.44 kW |
| Recommended Charge/Discharge Current | 50A |
| Nominal Charge/Discharge Current | 100A |
| Peak Discharge Current (2 min) | 125A |
| Cooling Method | Air Conditioning |
| IP Rating | IP55 |
| Operating Temperature | Charge: 32°F to 131°F / Discharge: -4°F to 131°F |
| Storage Temperature | 32°F to 95°F |
| Relative Humidity | 5% – 85% RH |
| Max Altitude | 6,562 ft (2,000 m) |
| Cycle Life | >6,000 Cycles (25°C ±2°C, 0.5C/0.5C, 70% EOL) |
| Communication | CAN2.0 / RS485 |
| Status Indicator | Yellow: High Voltage Power On / Red: System Alarm |
| Fire Suppression | Integrated Aerosol Fire Suppression System |
| Safety Sensors | Combustible Gas Sensor, Smoke Detector, Heat Detector, Water Immersion Sensor |
| Installation | Floor-Mounted |
| Max System Expansion | 360 kWh (Single System) / 600 kWh (10 Units Parallel) |
| Dimensions (W x D x H) | 780 x 1056 x 2235 mm |
| Weight | 2,645.5 lbs (1,200 kg) |
| Warranty | 10 Years |
| Certifications | CE, IEC62619, IEC62040, UN38.3 |
