Description

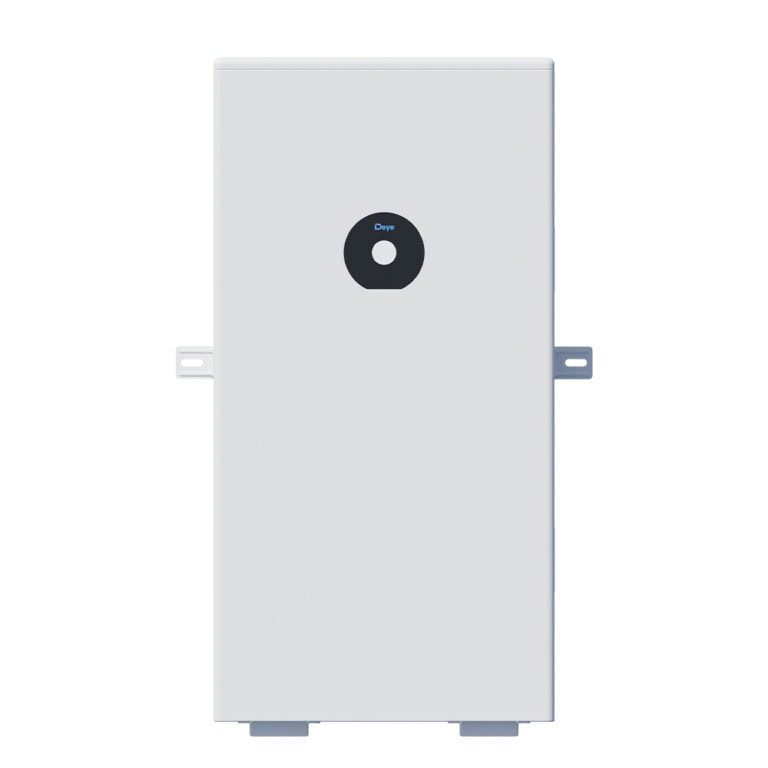

Wall-mounted or floor-mounted, this 16kWh LFP battery module networks automatically with no DIP switches, scaling up to 32 units in parallel for growing energy needs.
Key Features
- Auto-Networking Design: Battery modules connect automatically with no manual DIP switch configuration required.
- Highly Scalable: Parallels up to 32 units standard, or 64 units using a CAN-Bridge.
- Dual Monitoring Options: Supports Deye Cloud remote monitoring or local Bluetooth app control.
- Weatherproof & Wide Range: IP65 rated with operation from -20°C to 55°C for flexible installation sites.
- Flexible Mounting: Flat design supports both wall-mounted and floor-mounted installation.
Built on LiFePO4 chemistry, this module delivers 16kWh of usable energy at a 51.2V nominal voltage, supporting 100% depth of discharge.
Output power reaches 10.2kW mqax, with continuous discharge current up to 200A and a 240A peak for 10-second bursts under heavy load.
Backed by a 10-year warranty and 50 MWh energy throughput rating, this unit is rated for over 8,000 cycles at 70% end-of-life capacity.
Technical Specification
| Item | Specification |
|---|---|
| Model | SE-F16 Max-6 |
| Battery Chemistry | LiFePO4 |
| Rated Capacity | 314 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 - 57.6 V |
| Nominal / Usable Energy | 16 kWh |
| Max Output Power | 10.2 kW |
| Charge Current (Max Continuous / Peak) | 160A / 280A (10 sec) |
| Discharge Current (Max Continuous / Peak) | 200A / 240A (10 sec) |
| Recommended Depth of Discharge | 100% DOD |
| Scalability | Up to 32 units in parallel (64 with CAN-Bridge) |
| Ingress Protection | IP65 |
| Operating Temperature | Charge: -20°C to 55°C / Discharge: -20°C to 55°C |
| Cycle Life | ≥8,000 cycles (25°C, 70% EOL) |
| Communication | CAN2.0, RS485, Bluetooth |
| Certifications | UN38.3, UL1973, UL9540A, UL9540-DC, FCC |
| Energy Throughput | 50 MWh |
| Warranty | 10 Years |
| Weight | 264.6 lbs (120 kg) |
| Dimensions (W x H x D) | 18.27" x 35.98" x 9.63" (464 x 914 x 244.5 mm) |
