Description

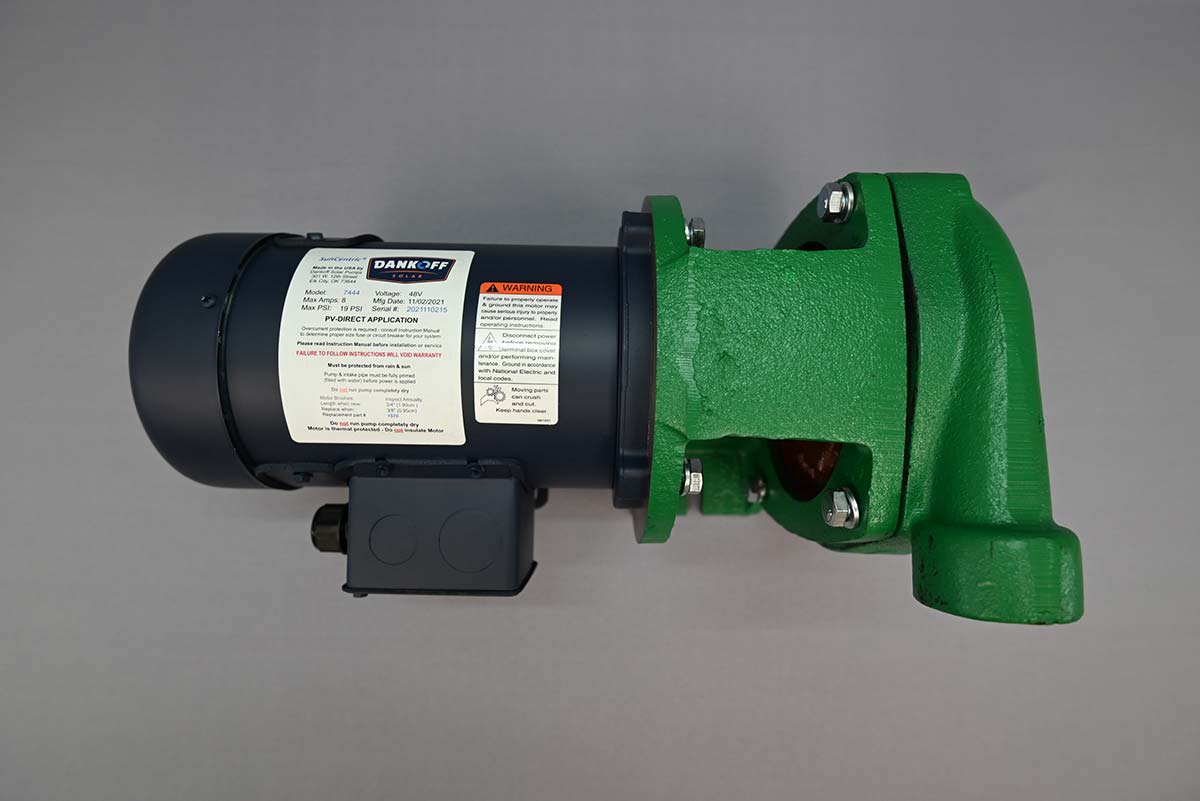

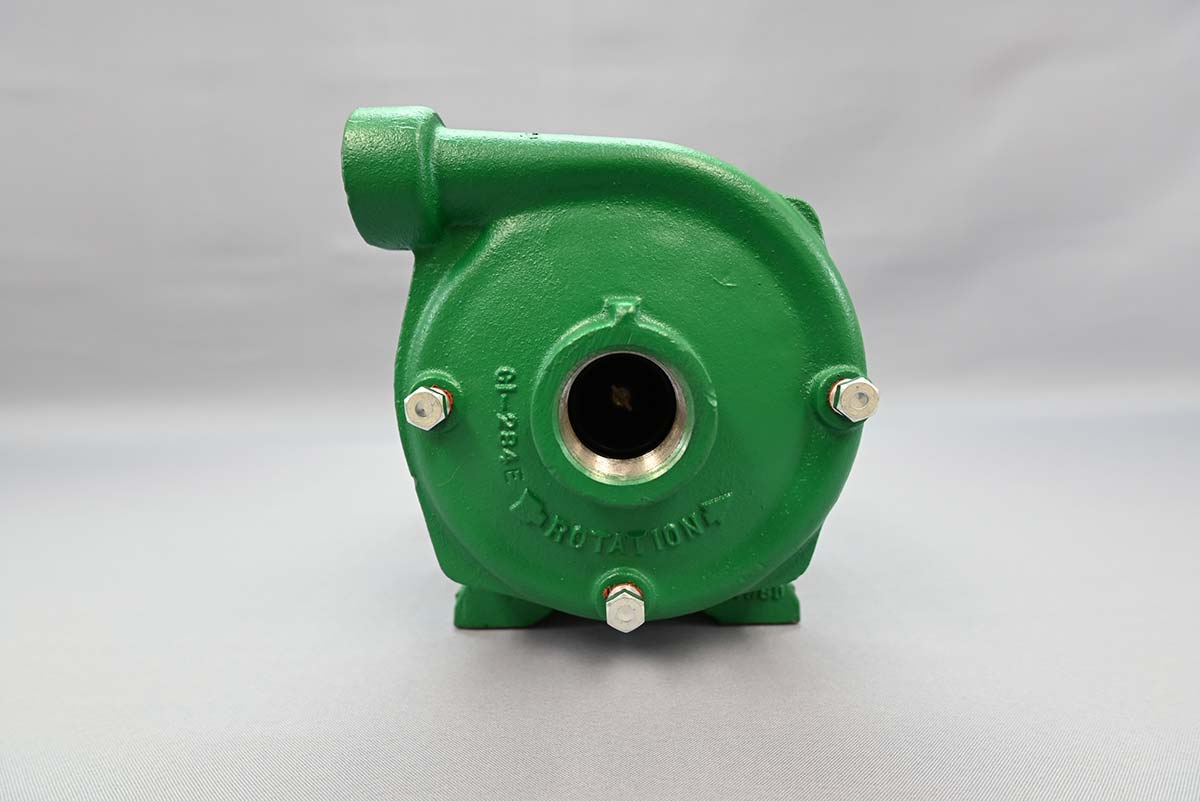

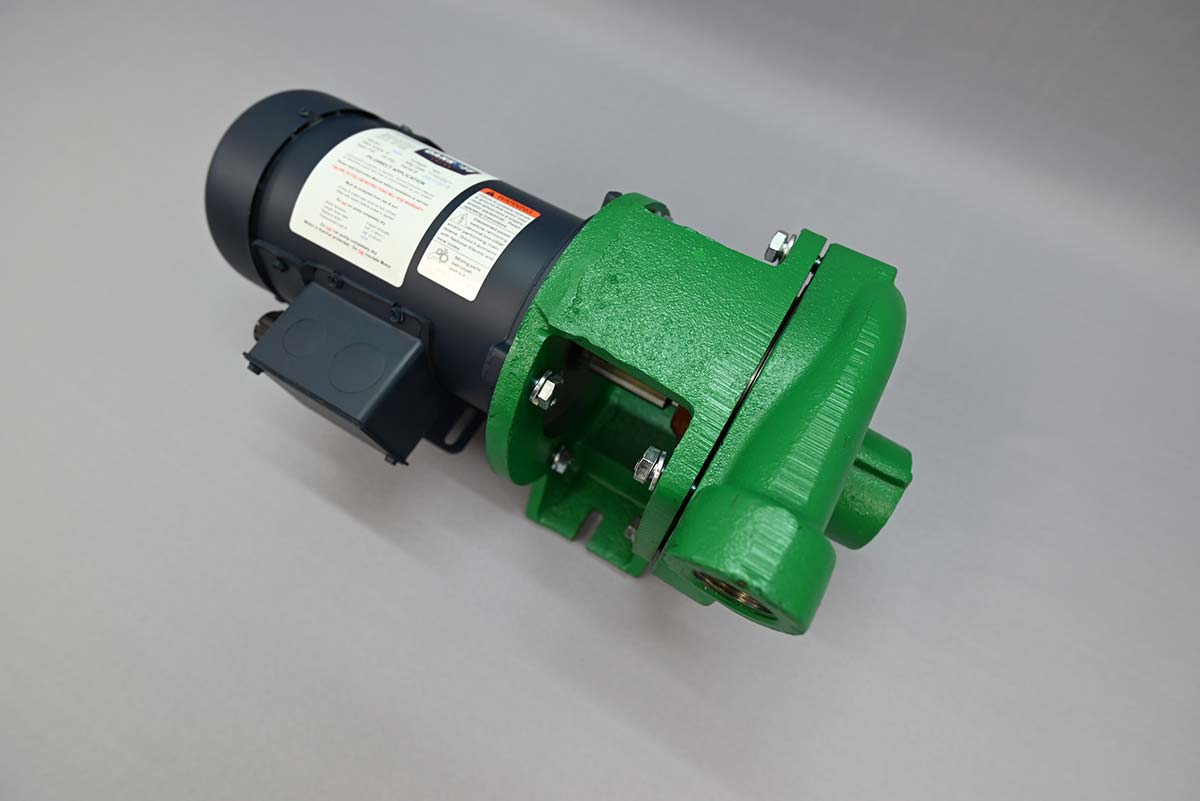

The Dankoff Solar SunCentric 7425 24V Battery Pump is a high-performance centrifugal pump designed for efficient water movement in off-grid applications. Powered by a 24V battery system, it delivers reliable water flow from shallow sources, making it ideal for irrigation, livestock watering, and domestic water supply.
Key Features:
- High Flow Rate: Capable of pumping up to 54 gallons per minute (GPM) at 5 feet of Total Dynamic Head (TDH), ensuring ample water supply for various needs.
- Robust Construction: Built with a cast iron pump body and a glass-filled polycarbonate impeller, offering durability and longevity.
- Efficient Power Usage: Operates at 346 watts with a current draw of 14.4 amps, optimizing energy consumption for off-grid systems.
- Low Maintenance: Designed for minimal upkeep, with replaceable wear parts that typically last between 5 to 10 years.
The SunCentric 7425 is engineered to handle a maximum suction lift of 10 vertical feet at sea level, with adjustments for higher elevations. Its efficient design allows for a total dynamic head of up to 90 feet, accommodating various installation requirements. The pump's materials are selected for durability, including a cast iron body and a carbon/ceramic seal, ensuring reliable performance over time. Additionally, the pump is tolerant of dirt and does not require filtration, simplifying installation and maintenance.
For optimal performance, it's recommended to place the pump close to the water source to minimize suction lift and reduce the risk of cavitation. Proper sizing of intake pipes and electrical wiring is crucial to maintain efficiency and prevent performance loss. The SunCentric 7425 is designed for easy field repair using standard tools, and its motor brushes have an estimated lifespan of 12,000 peak hours, translating to approximately 5 to 8 years of service.
This pump is an excellent choice for those seeking a reliable, efficient, and low-maintenance solution for water pumping needs in remote or off-grid locations.
Specifications:
| Specification | Details |
|---|---|
| Model Number | 7425 |
| Voltage | 24V DC |
| Power Consumption | 346 Watts |
| Current Draw | 14.4 Amps (15.9 Max Amps) |
| Flow Rate | 54 GPM @ 5' TDH / 17.5 GPM @ 30' TDH |
| Total Dynamic Head (TDH) | Up to 90 feet (27 meters) |
| Suction Lift Capacity | 10 feet (3 meters) at sea level |
| Pump Body Material | Cast Iron |
| Impeller Material | Glass-Filled Polycarbonate |
| Seal Material | Carbon/Ceramic |
| Temperature Limit | 140°F (60°C) |
| Weight | 61 lbs (27.7 kg) |
| Dimensions (L x W x H) | 22" x 16" x 14" (56 cm x 41 cm x 36 cm) |
| Warranty | 2 years against defects in materials and workmanship |
