Description

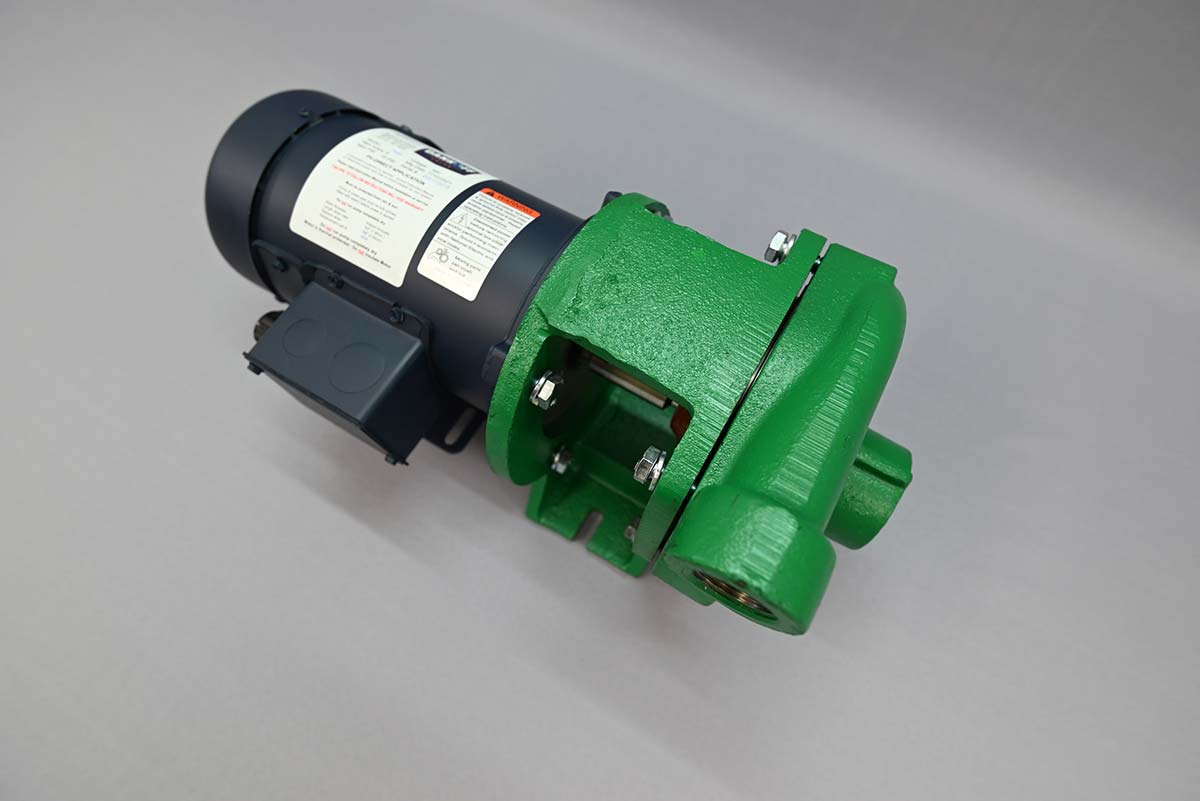

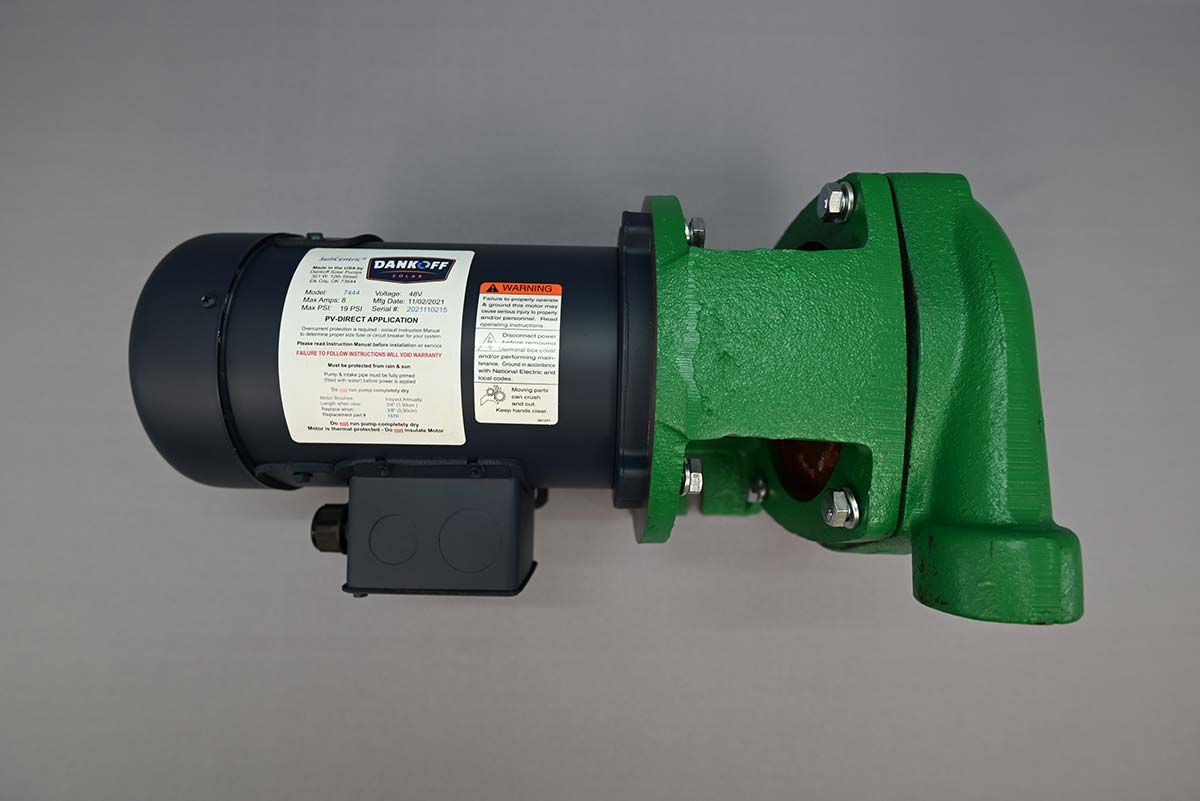

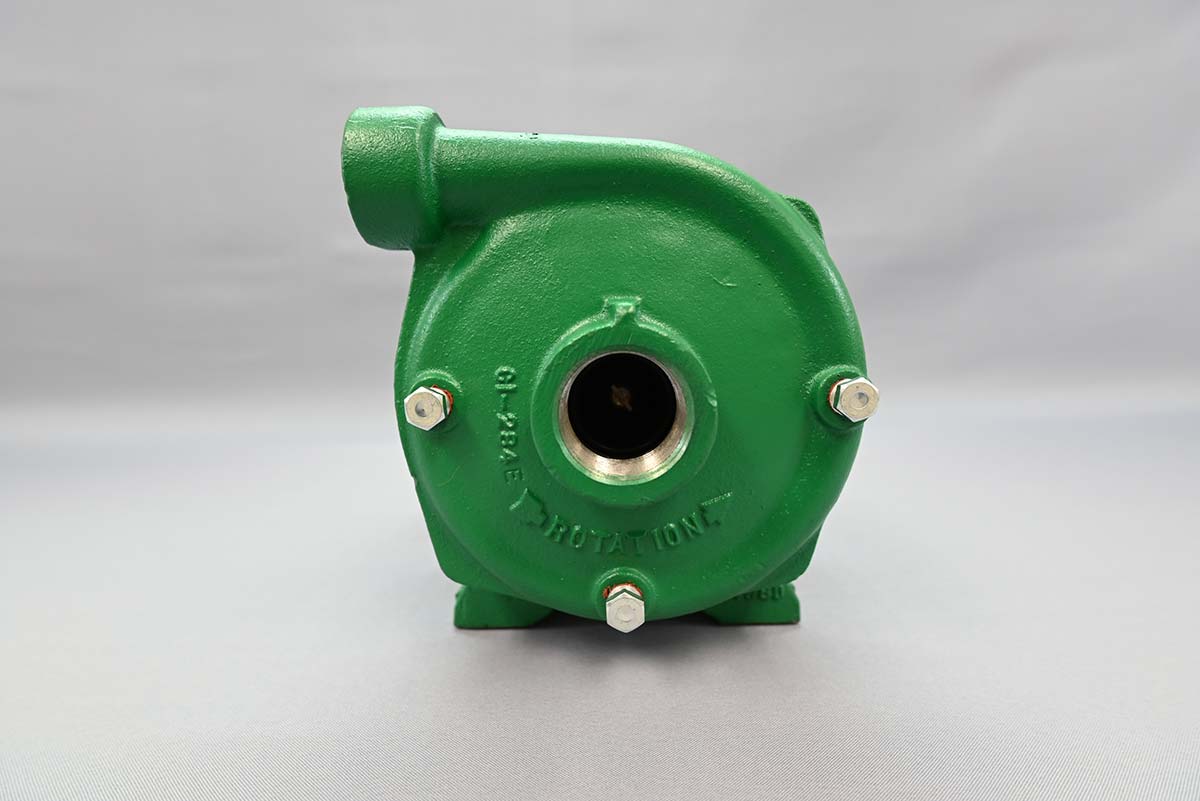

The Dankoff SunCentric 7424 24V Battery Pump is a high-performance centrifugal pump designed for efficient water transfer in off-grid applications. Powered by a 24V DC battery system, this pump delivers reliable and consistent water flow, making it ideal for irrigation, livestock watering, domestic water supply, pond management, and more.
Key Features:
- High Flow Rate: Capable of delivering up to 52.5 gallons per minute (gpm) at 5 feet Total Dynamic Head (TDH), ensuring ample water supply for various needs.
- Efficient Power Consumption: Operates at 286 watts, drawing 11.9 amps, optimizing energy usage for prolonged battery life.
- Durable Construction: Built with a cast iron pump body and glass-filled polycarbonate impeller, ensuring longevity and resistance to wear.
- Low Maintenance: Designed for minimal upkeep, with field-repairable components and a typical motor brush life of 5-8 years.
Product Description:
The Dankoff SunCentric 7424 24V Battery Pump is engineered to provide high-volume water pumping solutions in remote or off-grid locations. Its robust design and efficient operation make it suitable for a wide range of applications, including agricultural irrigation, livestock watering, and domestic water supply.
This pump operates directly from a 24V DC battery system, eliminating the need for complex power setups. With a maximum flow rate of 52.5 gpm at 5 feet TDH, it ensures a steady and reliable water supply. The pump's power consumption is optimized at 286 watts, drawing 11.9 amps, which helps in conserving battery life and reducing operational costs.
Constructed with a cast iron pump body and a glass-filled polycarbonate impeller, the SunCentric 7424 is built to withstand harsh environmental conditions and provide long-lasting performance. Its design allows for easy field repairs using standard tools, and the motor brushes have an estimated lifespan of 5-8 years, contributing to its low maintenance requirements.
The pump's suction capacity is up to 10 vertical feet at sea level, with a reduction of 1 foot for every 1,000 feet of elevation. This makes it versatile for various terrains and water sources. Additionally, the pump is designed to tolerate dirt and does not require filtration, simplifying installation and operation.
For optimal performance, it is recommended to place the pump close to the water source to minimize suction lift and reduce the risk of cavitation. Proper wire and pipe sizing are essential to maintain efficiency and prevent performance loss. The pump should be sheltered from rain and direct sunlight to ensure longevity.
Specifications:
| Specification | Details |
|---|---|
| Model Number | 7424 |
| Voltage | 24V DC |
| Power Consumption | 286 watts |
| Current Draw | 11.9 amps |
| Maximum Flow Rate | 52.5 gpm at 5' TDH |
| Total Dynamic Head | Up to 90 feet |
| Suction Capacity | 10 vertical feet at sea level (subtract 1 foot per 1,000 feet elevation) |
| Pump Body Material | Cast iron |
| Impeller Material | Glass-filled polycarbonate |
| Temperature Limit | 140°F (60°C) |
| Weight | 56 lbs |
| Dimensions (L x W x H) | 22" x 16" x 14" |
| Warranty | 2 years against defects in materials and workmanship |
