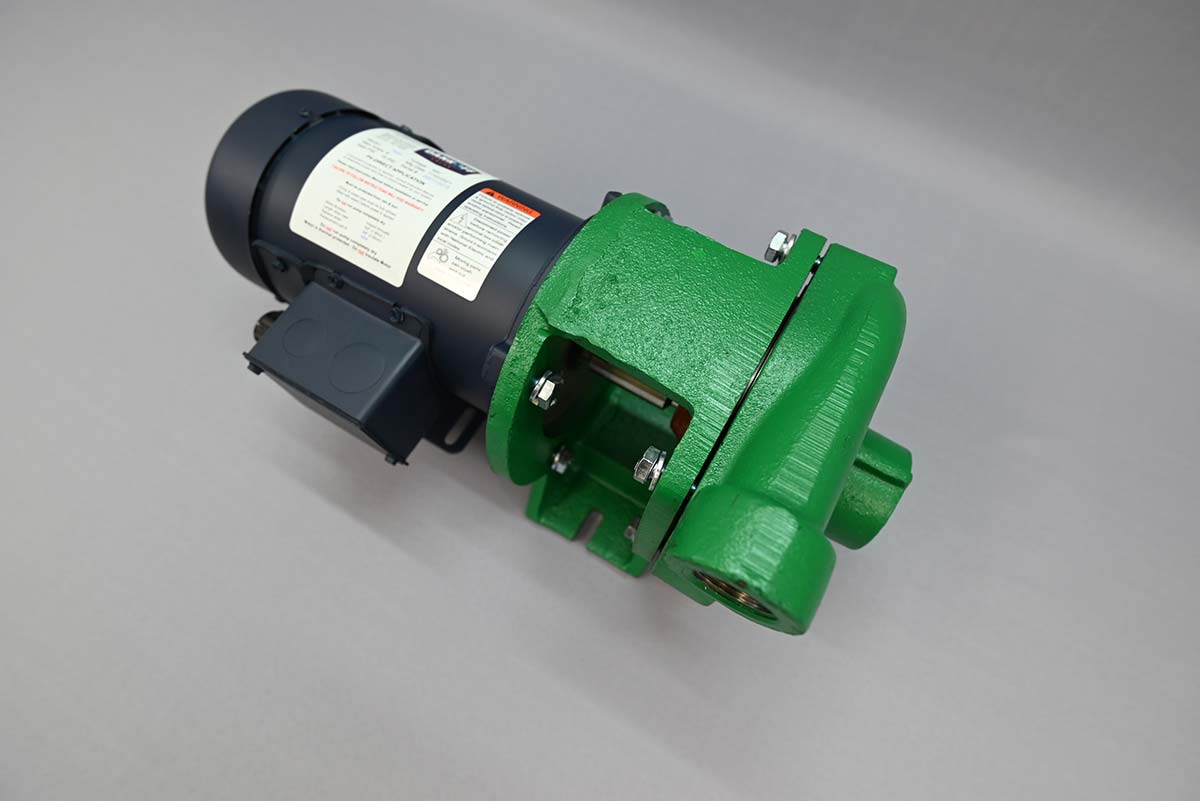

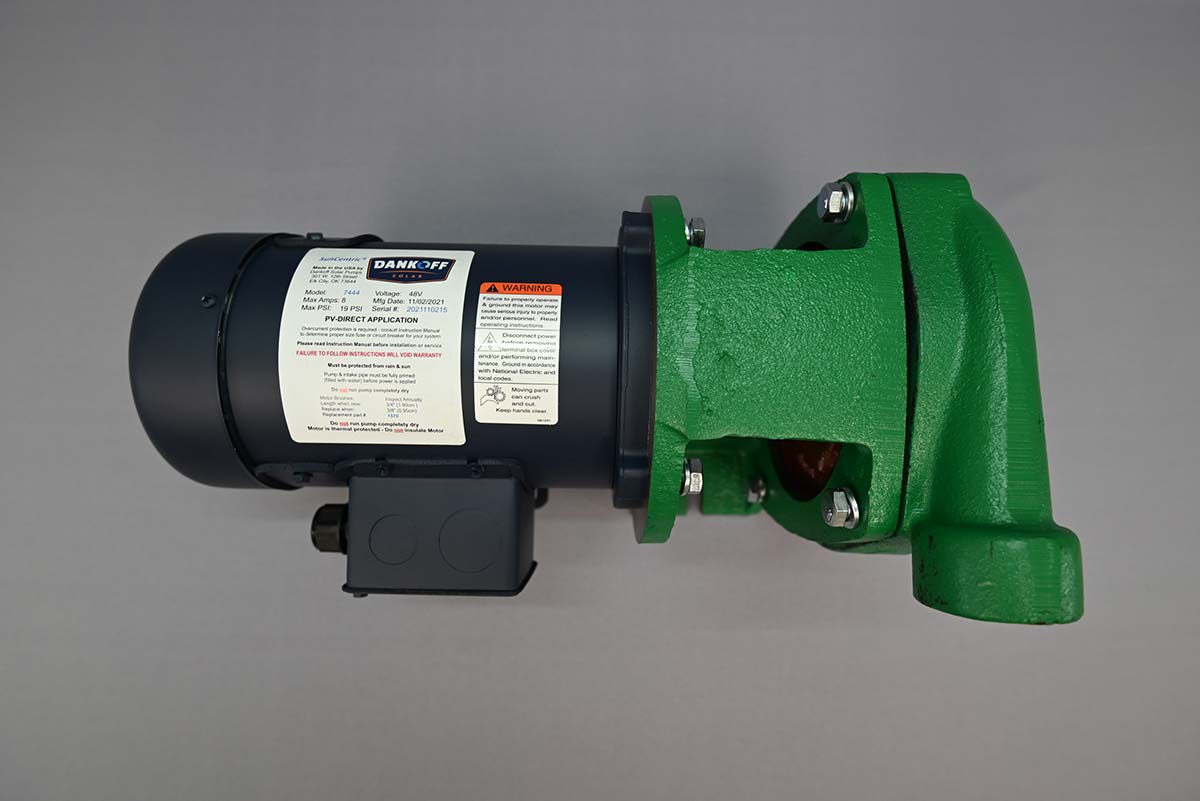

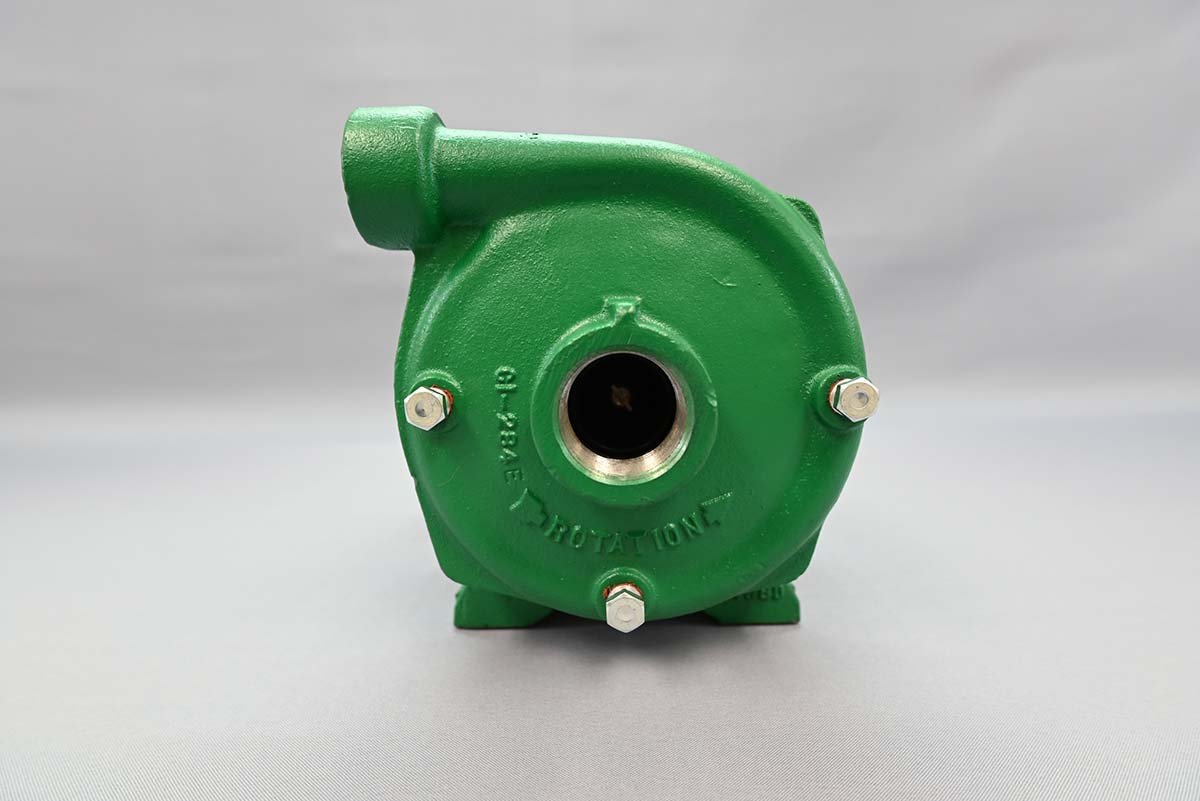

The Dankoff SunCentric 7423 24V Battery-Powered Centrifugal Pump is a robust and efficient solution for high-volume water pumping needs. Designed to operate directly from a 24V battery system, this pump is ideal for applications requiring substantial water flow from shallow sources.
Key Features:
-
High Flow Rate: Capable of delivering up to 46 gallons per minute (GPM) at 10 feet of Total Dynamic Head (TDH) when powered directly by a photovoltaic (PV) array, and 39 GPM at 5 feet TDH when operating from a 24V battery.
-
Durable Construction: Built with a cast iron pump body and a glass-filled polycarbonate impeller, ensuring longevity and resistance to wear.
-
Low Maintenance: Designed for minimal upkeep, with replaceable wearable parts that typically last between 5 to 10 years, contributing to an overall life expectancy of 15 to 20 years.
-
Versatile Power Options: Operates efficiently with a 24V battery system and can also be powered directly by a PV array, offering flexibility in various off-grid scenarios.
Product Description:
The Dankoff SunCentric 7423 is engineered to meet demanding water pumping requirements in remote or off-grid locations. Its centrifugal design allows for high-volume water movement, making it suitable for tasks such as irrigation, livestock watering, and domestic water supply. The pump's construction features a cast iron body coupled with a glass-filled polycarbonate impeller, providing durability and resistance to environmental wear. With a maximum suction capacity of 10 vertical feet at sea level, it efficiently draws water from shallow sources. The pump's design ensures minimal maintenance, with key components like motor brushes and shaft seals designed for extended service life. This reliability is backed by a two-year warranty against defects in materials and workmanship.
Specifications:
| Specification | Details |
|---|---|
| Model Number | 7423 |
| Voltage | 24V DC |
| Power Consumption | 259 Watts (Battery Operation) |
| Current Draw | 10.8 Amps (Battery Operation) |
| Flow Rate | 39 GPM @ 5' TDH (Battery Operation); 46 GPM @ 10' TDH (PV Direct) |
| Total Dynamic Head | Up to 90 feet (27 meters) |
| Suction Capacity | 10 vertical feet (3 meters) at sea level |
| Weight | 56 lbs (25.4 kg) |
| Dimensions (L x W x H) | 22" x 16" x 14" (56 cm x 41 cm x 36 cm) |
| Materials | Cast iron pump body; glass-filled polycarbonate impeller |
| Warranty | 2 years against defects in materials and workmanship |
