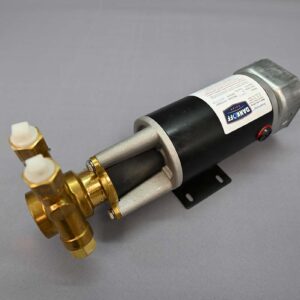

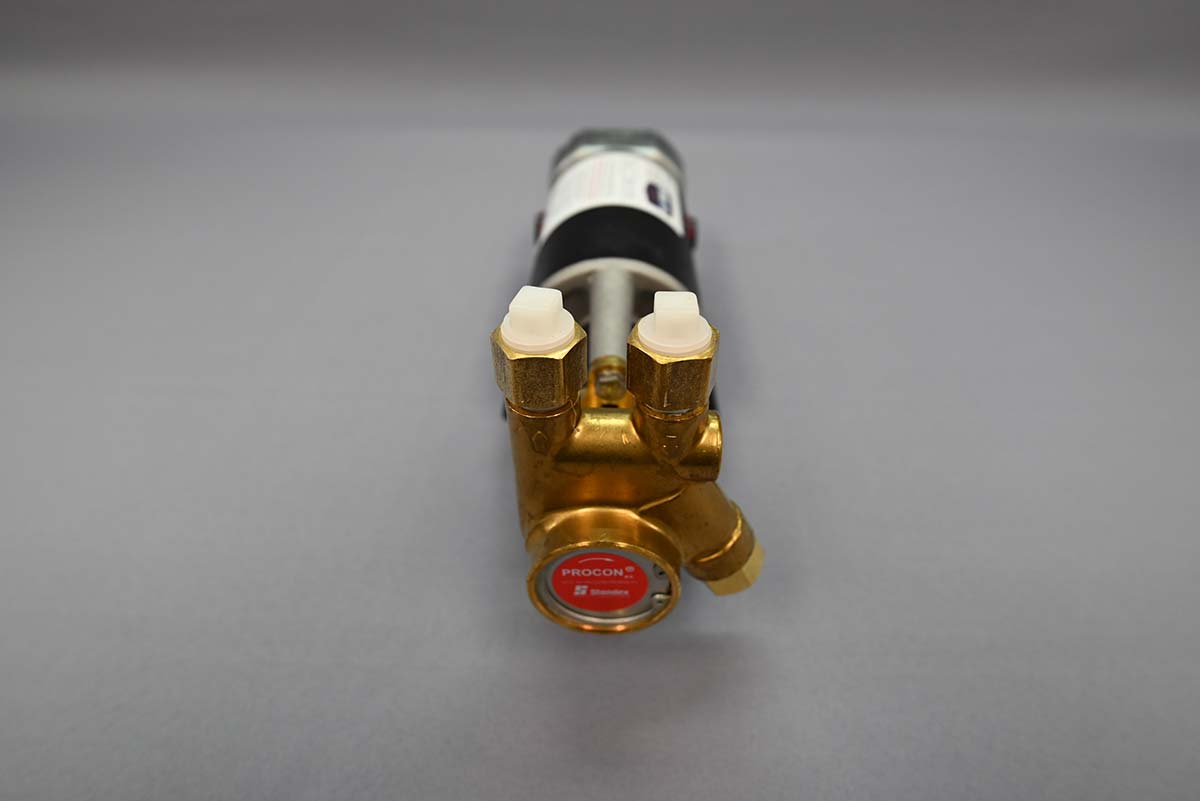

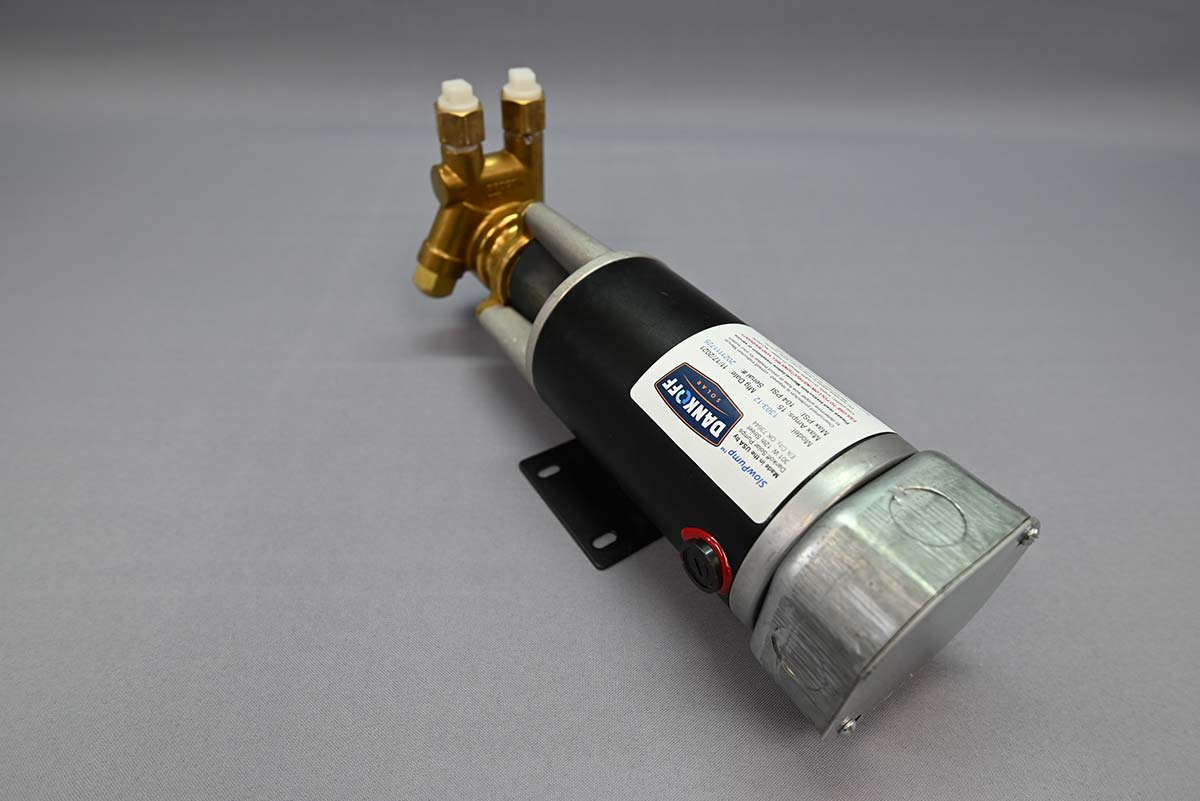

Dankoff Solar Slow Pump Model 2607-115, 115 VAC

The Dankoff Solar SlowPump model 2607 is available for 24 volts DC, 48 volts DC and 115 Volts AC and either Solar Direct or Battery. It's maximum PSI is about 120 and the maximum suction lift is 20 feet at sea level. For every 1,000 feet of elevation, the pump loses 1 foot of suction lift. For example: If your elevation is 4,000 feet, the maximum suction lift of the pump will be 16 feet. It's always best to limit the suction lift as much as possible. By placing the pump closer to the water source, it will run more efficiently and quietly. A noisy pump can indicate that your total suction lift exceeds the pump's specifications. This pump cannot tolerate dirt. The water MUST be filtered clear. Sea water and dissolved minerals will not cause any problems. The 24V and 48V models can be powered directly with solar panels.

Specifications:

• Fittings are 3/4 inch male
• Dimensions: 6.5" x 18.75" (16.51cm x 47.63cm)
• Weight: 29 pounds
• Warranty: 1 Year

Total Lift		Model 2607
Feet	Meters	GPM	PV Watts
20	6	6.20	185
40	12	6.10	240
60	18	6.09	250
80	24	6.04	290
100	30	6.04	330
120	36	6.00	355
140	42	6.00	390
160	48	5.93	430
180	54	5.83	470
200	60	5.80	500
240	72	5.75	585
280	84	5.59	675
