Efficient, Reliable, and Versatile Solar Water Pumping Solution

Key Features:

• High Performance: 9.1 GPM @ 140' Lift | 403 Watts | 3.9 Max Amps
• Versatile Power Sources: Operates directly from a PV array, battery bank, or any power source.
• Wide Application: Ideal for domestic, agricultural, commercial, or industrial use.
• Impressive Suction and Push: Draws water from shallow wells, ponds, streams, rivers, or storage tanks and pushes it uphill (230' max head) or through miles of pipeline.
• Pressure Systems: Supports pressurized water systems (100 psi max; minimum 60-gal pressure tank required).

Why Choose Dankoff Solar Force Pumps?

• Energy Efficient: Uses less energy per gallon of water than any other pump in our range.
• Durable Construction: Cast iron pump head with a brass cylinder ensures longevity.
• Long Life Span: Proven 20-year design with simple maintenance using common hand tools.

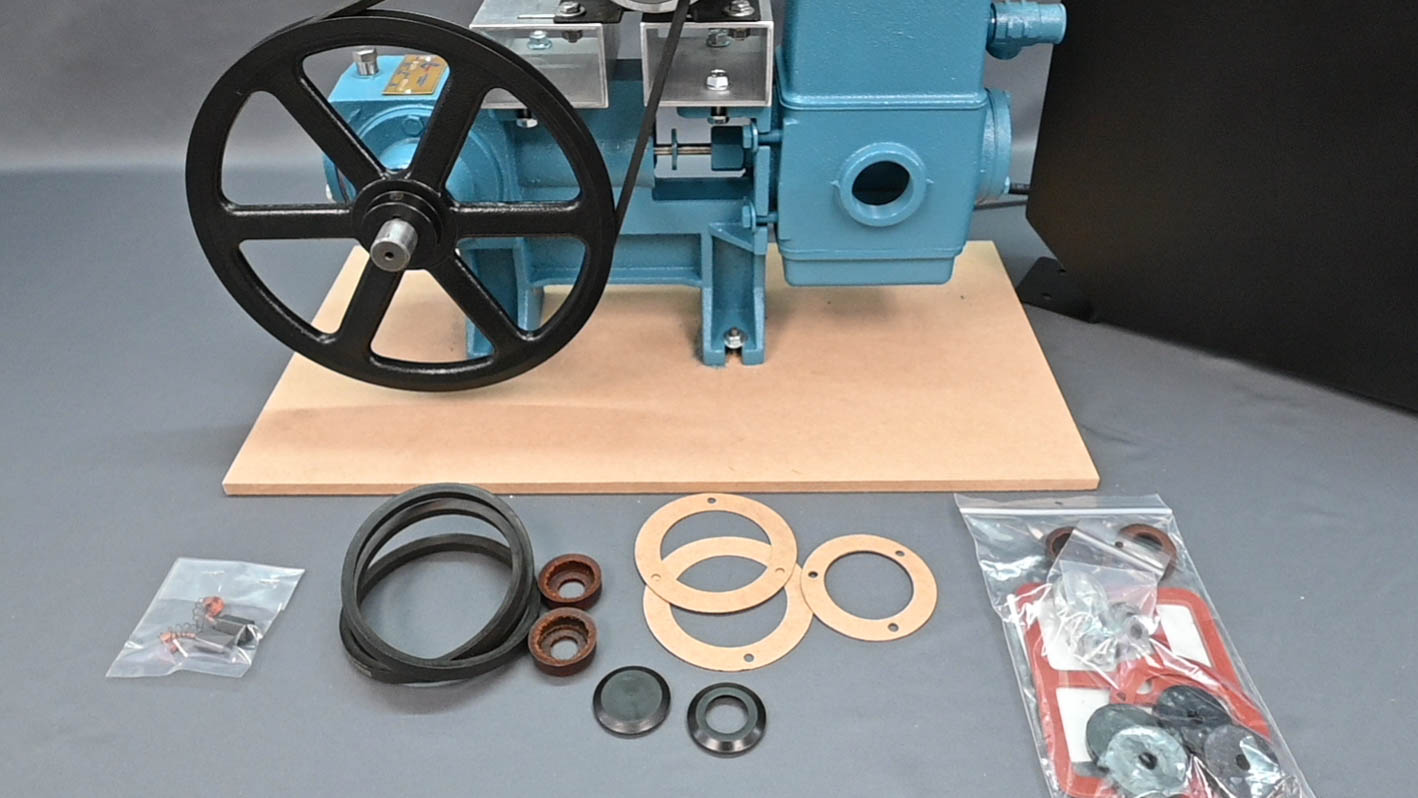

• Easy Maintenance: Leather piston seals are easy to replace (5 to 10-year maintenance interval).
• Comprehensive Manuals: Well-illustrated installation and repair manuals included.

Technical Specifications:

• Power Options: Available in 12, 24, or 48 VDC motors, or 120 VAC or 230 VAC, 50-60 Hz motors.
• Port Sizes: 1.5" female-threaded intake ports and 1" female-threaded outlet ports.
• Dimensions: 22" x 13" x 16" (H)
• Weight: 115 lbs (shipped in two boxes)
• Warranty 2-year warranty

Optimized Solar Performance:

• Wattage Information: The pump uses 403 watts. For direct PV operation, the array should be at least 20% larger.
• Enhanced Efficiency: Over-sizing the array increases daily water delivery, allowing the pump to run at full speed for more hours each day, even in cloudy weather.

Order Now and Start Saving Energy!

Why Choose Us?

• Expert Support: Our knowledgeable team is here to help with installation, maintenance, and any questions you may have.
• Fast Shipping: Get your pump delivered quickly with our reliable shipping options.
• Customer Satisfaction: Join thousands of satisfied customers who trust our products for their water pumping needs.

Customer Testimonials:

"The Dankoff Solar Force Pump has been a game-changer for our farm. It's efficient, easy to maintain, and has saved us a lot on energy costs." - John D.

"We installed the pump for our commercial property, and it has exceeded our expectations in both performance and reliability." - Sarah M.

Frequently Asked Questions

Q: Can this pump operate in cloudy weather?

A: Yes, by oversizing your PV array, the pump can operate efficiently even in less sunlight.

Q: What maintenance is required?

A: The pump requires minimal maintenance. Leather piston seals need replacement every 5 to 10 years, and the process is straightforward with common hand tools.

Q: Is this pump suitable for high-altitude locations?

A: Yes, but note that suction capacity decreases by 1' for each 1,000' above sea level.

Contact Us

Have more questions? Our team is here to assist you. Reach out to us at info@thesolarstore.com.

Order Your Dankoff Solar Force Piston Pump Now!

Don’t miss out on the opportunity to enhance your water pumping system with a reliable, energy-efficient solution. Click the button above to purchase or learn more.



Dankoff Solar Force Piston Pump Sizing Chart
Lift in feet (head)	Pressure	Model 3010		Model 3020		Model 3040
		Flow	Watts	Flow	Watts	Flow	Watts
20'	8.7 psi	5.9 gpm	77 W	5.2 gpm	110 W	9.3 gpm	168 W
40'	17.4 psi	5.6 gpm	104 W	5.2 gpm	132 W	9.3 gpm	207 W
60'	26 psi	5.3 gpm	123 W	5.1 gpm	154 W	9.2 gpm	252 W
80'	35 psi	5.2 gpm	152 W	5.1 gpm	182 W	9.2 gpm	286 W
100'	43 psi	5.1 gpm	171 W	5 gpm	202 W	9.1 gpm	322 W
120'	52 psi	4.9 gpm	200 W	5 gpm	224 W	9.1 gpm	364 W
140'	61 psi	4.9 gpm	226 W	5 gpm	252 W	9.1 gpm	403 W
160'	70 psi	--	--	4.9 gpm	269 W	--	--
180'	78 psi	--	--	4.9 gpm	280 W	--	--
200'	86 psi	--	--	4.8 gpm	308 W	--	--
220'	95 psi	--	--	4.7 gpm	314 W	--	--





Dankoff Solar Force Piston Pumps
Model	Operating Voltage	Power source	Item Code
3010-12B	12 VDC	Battery	075-04265
3020-12B	12 VDC	Battery	075-04271
3020-12PV	12 VDC	PV array direct	075-04273
3020-24B	24 VDC	Battery	075-04275
3020-24PV	24 VDC	PV array direct	075-04277
3020-48B	48 VDC	Battery	075-04279
3020-48PV	48 VDC	PV array direct	075-04281
3020-120VAC	120 VAC	Inverter/Grid	075-04269
3040-12B	12 VDC	Battery	075-04285
3040-12PV	12 VDC	PV array direct	075-04287
3040-24B	24 VDC	Battery	075-04289
3040-24PV	24 VDC	PV array direct	075-04291
3040-48B	48 VDC	Battery	075-04293
3040-48PV	48 VDC	PV array direct	075-04295
3040-120VAC	120 VAC	Inverter/Grid	075-04283
3040-230VAC	230 VAC	Inverter/Grid	075-04284
