Description

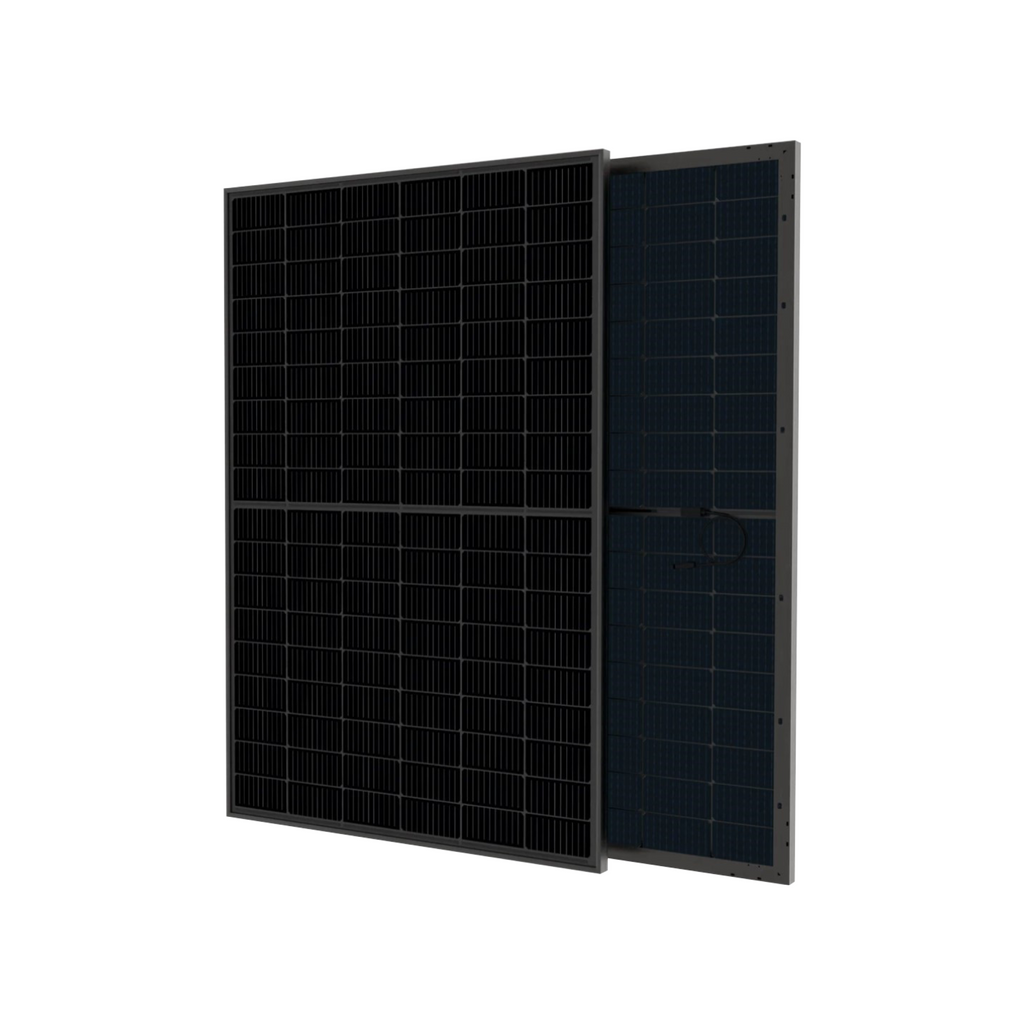

The CW Energy 450W Solar Panel (108-Cell All-Black, CWT450-108TNB10) is a high-power, premium residential and commercial photovoltaic module designed to deliver strong energy output and modern aesthetics. With a 450-watt rated power and a sleek all-black appearance, this panel blends performance with design appeal—ideal for rooftops where visual uniformity and high energy yield matter.
Built with a 108-cell layout and advanced cell technology, the CWT450-108TNFB10 provides higher voltage and efficient power generation, especially suited for installations with high-string voltage requirements or larger system architectures. Its robust frame and premium materials support long service life in diverse climates.
Product Details
High Power Output:
Rated at 450 watts, this panel produces significant energy per module, helping reduce total panel count for high-kW systems.
108-Cell Configuration:
The 108-cell format increases operating voltage and improves performance in real-world conditions, making it suitable for longer strings and compatible with high-voltage inverters.
All-Black Aesthetic:
The all-black frame, black backsheet, and dark cells provide a clean, premium look—preferred for residential rooftops and installations where design matters.
Durable Construction:
Designed to withstand outdoor environments, this panel employs a rugged frame and tempered glass to resist wind, snow, and thermal cycling while maintaining efficient performance over time.
Wide Compatibility:
Works with most grid-tied, hybrid, and battery-ready inverter platforms; compatible with industry-standard racking and mounting options.
Technical Specifications
| Category | Specification |
|---|---|
| Model | CWT450-108TNFB10 |
| Power Output (STC) | 450 W |
| Cell Type | Monocrystalline (108 cells) |
| Aesthetic | All-black (frame, backsheet, cell finish) |
| Maximum Power Voltage (Vmp) | ~38 V (panel dependent) |
| Maximum Power Current (Imp) | ~11.8 A (panel dependent) |
| Open-Circuit Voltage (Voc) | ~46 V (panel dependent) |
| Short-Circuit Current (Isc) | ~12.5 A |
| Module Efficiency | ~20.5 – 21.5 % (typical) |
| Temperature Coefficients | Typical values for Pmax, Voc, Isc |
| Dimensions | Standard ~2108 × 1048 × 35 mm (panel dependent) |
| Weight | ~27 kg (~60 lb) |
| Frame | Anodized aluminum, all-black finish |
| Glass | Anti-reflective tempered solar glass |
| Connector Type | MC4-compatible solar connectors |
| Junction Box | IP-rated with bypass diodes |
| Operating Temp Range | ~-40 °C to +85 °C |
| Warranty | Industry standard product and performance warranty |
Typical Applications
-
Residential rooftop solar systems
-
High-power commercial PV installations
-
Systems aiming for reduced panel count with high kW per panel
-
Sites where aesthetic uniformity (all-black look) is desired
-
High-voltage string inverter systems requiring higher operating voltage
Performance Notes
-
High Voltage Strings: The 108-cell layout enables higher operating voltages, making these panels suitable for long string configurations and reducing BOS costs by minimizing combiners.
-
Good Low-Light Response: Advanced monocrystalline cells help maintain output under diffused light conditions.
-
Durability: Tempered glass and robust frame help resist mechanical stress from weather and temperature swings.
