Description

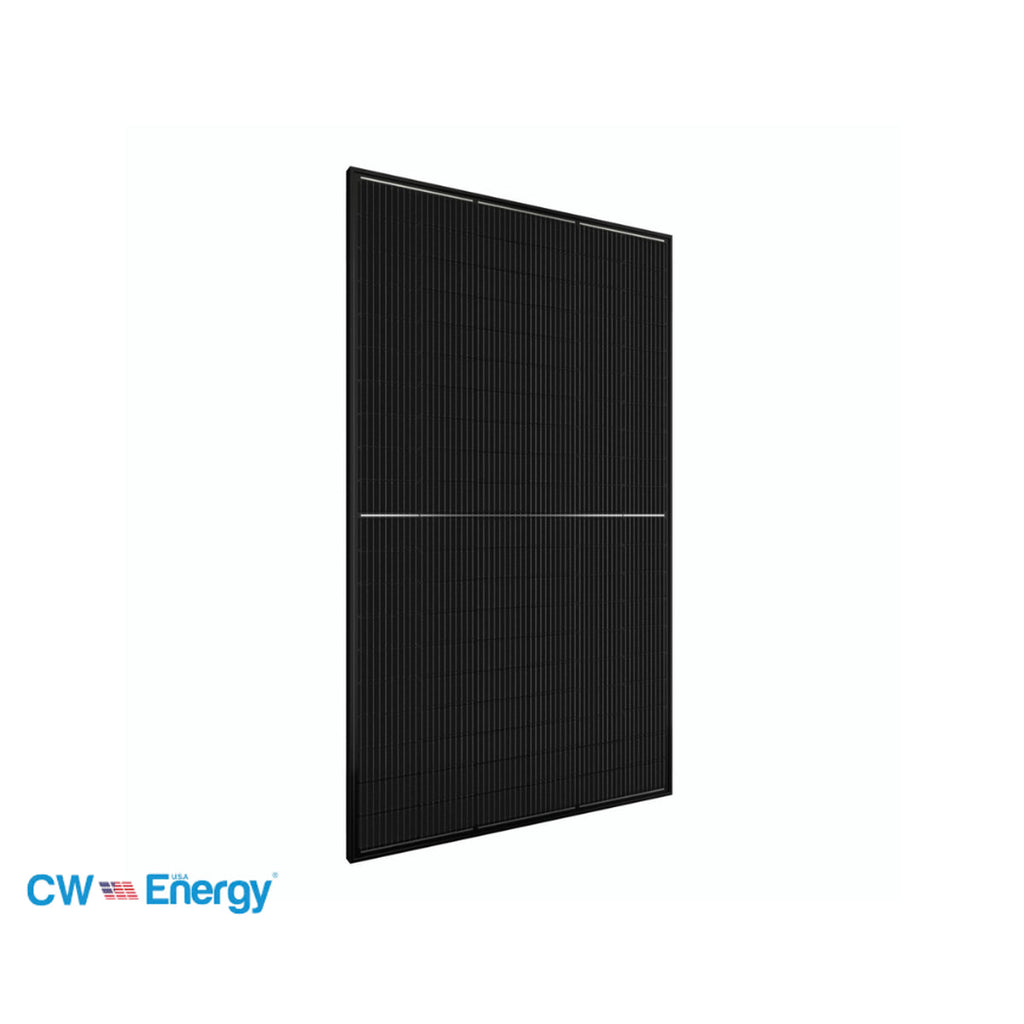

The CWT410-108PMB10 is a high-output, compact module designed to maximize kWh on tight rooftops and small C&I arrays.
It combines half-cut monocrystalline PERC cells with a multi-busbar layout to reduce resistive losses, run cooler in heat, and maintain production under partial shade.
The all-black front and black anodized frame deliver a clean, uniform look without compromising performance. With a modern 1500 VDC system rating, IP68 junction box, and MC4-type leads, this module drops cleanly into current racking and BOS, while robust snow/wind ratings, positive power tolerance, and long performance coverage support low LCOE over decades.
Product Details
-
Energy density in small spaces: 108 half-cells (M10 format) and multi-busbar wiring squeeze more watts per square meter and improve thermal behavior.
-
Installer-friendly: 1500 VDC strings, MC4-type connectors, and standard width make stringing and clamp selection straightforward.
-
Durability you can trust: 3.2 mm AR/self-clean glass, IP68 junction box with three bypass diodes, and tested mechanical loads for harsh climates.
-
Consistent arrays: Positive power tolerance (0 to +5 W) and tight factory binning help minimize mismatch across long strings.
-
Aesthetics without sacrifice: All-black front and black frame deliver curb appeal while retaining the performance of high-efficiency mono PERC.
Technical Specifications (STC unless noted)
| Category | Specification |
|---|---|
| Rated power | 410 W |
| Module efficiency | ~21.0% |
| Cell / layout | 108 half-cut mono PERC (M10 ~182 mm), multi-busbar |
| Vmp / Imp | ~31.50 V / ~13.02 A |
| Voc / Isc | ~37.50 V / ~13.85 A |
| Power tolerance | 0 to +5 W |
| Max system voltage | 1500 V DC |
| Max series fuse | 25 A |
| Front glass | 3.2 mm, anti-reflection / self-clean coated |
| Frame | Black anodized aluminum |
| Junction box | IP68, 3 bypass diodes |
| Leads / connector | ~1400 mm PV leads; MC4-type |
| Mechanical loads | 5400 Pa (snow) / 2400 Pa (wind) |
| Operating temperature | −40 °C to +85 °C |
| Dimensions / weight | ~1722 × 1134 × 30–35 mm; ~22 kg |
| Warranty (reference) | 12-year product; 30-year linear performance |
