Description

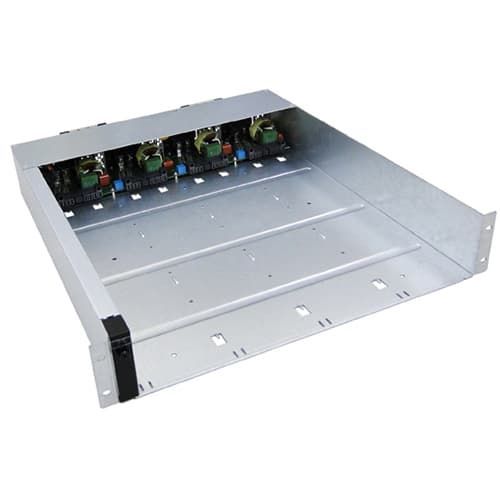

Introducing the COTEK SR-1600 Plus Shelf—a robust and efficient solution designed to house COTEK's SR-1600 Plus series of rack-mount inverters. This 19-inch, 2U rack-mountable shelf is engineered to provide a streamlined and scalable power management system, ideal for applications in telecommunications, data centers, and industrial settings.
Key Features:
- Hot-Swappable Module Design: Facilitates easy maintenance and redundancy by allowing modules to be replaced without interrupting system operations.
- Standard 19” 2U Rack Mount: Ensures compatibility with industry-standard racks, optimizing space utilization in equipment rooms.
- Zero Transfer Time: Provides seamless switching between power sources, ensuring uninterrupted power delivery to critical loads.
- Dual Input AC/DC Selectable Modes: Offers flexibility with selectable DC Mode and AC Mode, accommodating various power input scenarios.
- High Efficiency Up to 95% in AC Mode: Delivers superior energy efficiency, reducing operational costs and heat generation.
Product Overview:
The COTEK SR-1600 Plus Shelf is meticulously designed to support up to four SR-1600 Plus inverter modules, allowing for a total power capacity of up to 6.4 kW within a compact 2U height. Its hot-swappable module design ensures that each inverter module can be replaced or upgraded without necessitating a system shutdown, thereby enhancing system reliability and uptime.
This shelf is built to accommodate the demanding requirements of telecom and datacom applications, where uninterrupted power is paramount. The zero transfer time feature ensures a seamless transition between power sources, eliminating any potential downtime during power source switching.
The dual input AC/DC selectable modes provide versatility, allowing the system to adapt to different power input configurations. In AC Mode, the system achieves an impressive efficiency of up to 95%, ensuring optimal energy utilization and cost savings.
Scalability and Flexibility:
The SR-1600 Plus Shelf's modular architecture supports parallel connections of up to 32 modules, enabling a scalable power solution that can reach a total capacity of 51.2 kW. This scalability makes it an ideal choice for growing operations that require flexible power management solutions.
Enhanced Monitoring and Control:
Equipped with a Modbus Protocol Interface, the SR-1600 Plus Shelf allows for advanced monitoring and control capabilities. Features such as Engineering Bootloader Mode, event log monitoring, direct alarm messaging, and an Emergency Power Off (EPO) mode provide comprehensive management and safety functionalities, ensuring that the system operates within optimal parameters.
Robust Construction:
Constructed to meet CE and FCC standards, the SR-1600 Plus Shelf is designed for durability and compliance. Its standard 19” 2U rack-mount form factor ensures easy integration into existing rack systems, while the front-end changeable fan module design simplifies maintenance, allowing for quick replacement without affecting system operations.
Applications:
- Telecommunications: Ensures reliable power for critical communication infrastructure.
- Data Centers: Provides scalable and efficient power solutions for server racks and networking equipment.
- Industrial Automation: Delivers consistent power to automated systems and machinery, enhancing operational efficiency.
Technical Specifications:
Specification | SR-1600-124 Plus | SR-1600-148 Plus | SR-1600-224 Plus | SR-1600-248 Plus |
---|---|---|---|---|
Model Number/ID | SR-1600-124 Plus | SR-1600-148 Plus | SR-1600-224 Plus | SR-1600-248 Plus |
Rated Power | 1200W/1600VA | 1600W/1600VA | 1200W/1600VA | 1600W/1600VA |
AC Output Voltage | 100~120VAC | 100~120VAC | 200~240VAC | 200~240VAC |
DC Input Voltage | 24VDC | 48VDC | 24VDC | 48VDC |
DC Input Voltage Range | 18~34VDC ±3% | 36~68VDC ±3% | 18~34VDC ±3% | 36~68VDC ±3% |
Efficiency (AC Mode) | Up to 94% | Up to 95% | Up to 95% | Up to 95% |
Efficiency (DC Mode) | Up to 89% | Up to 90% | Up to 90% | Up to 91% |
Operating Temperature | -25°C to 40°C; Power De-rating from 40°C to 60°C | |||
Dimensions (WxHxD) | Module: 105x83x410 mm; Shelf: 446x85x509 mm | |||
Weight | Module: 3.8 kg; Shelf: 6.5 kg |
