Description
KIT-SOL-ARK-01

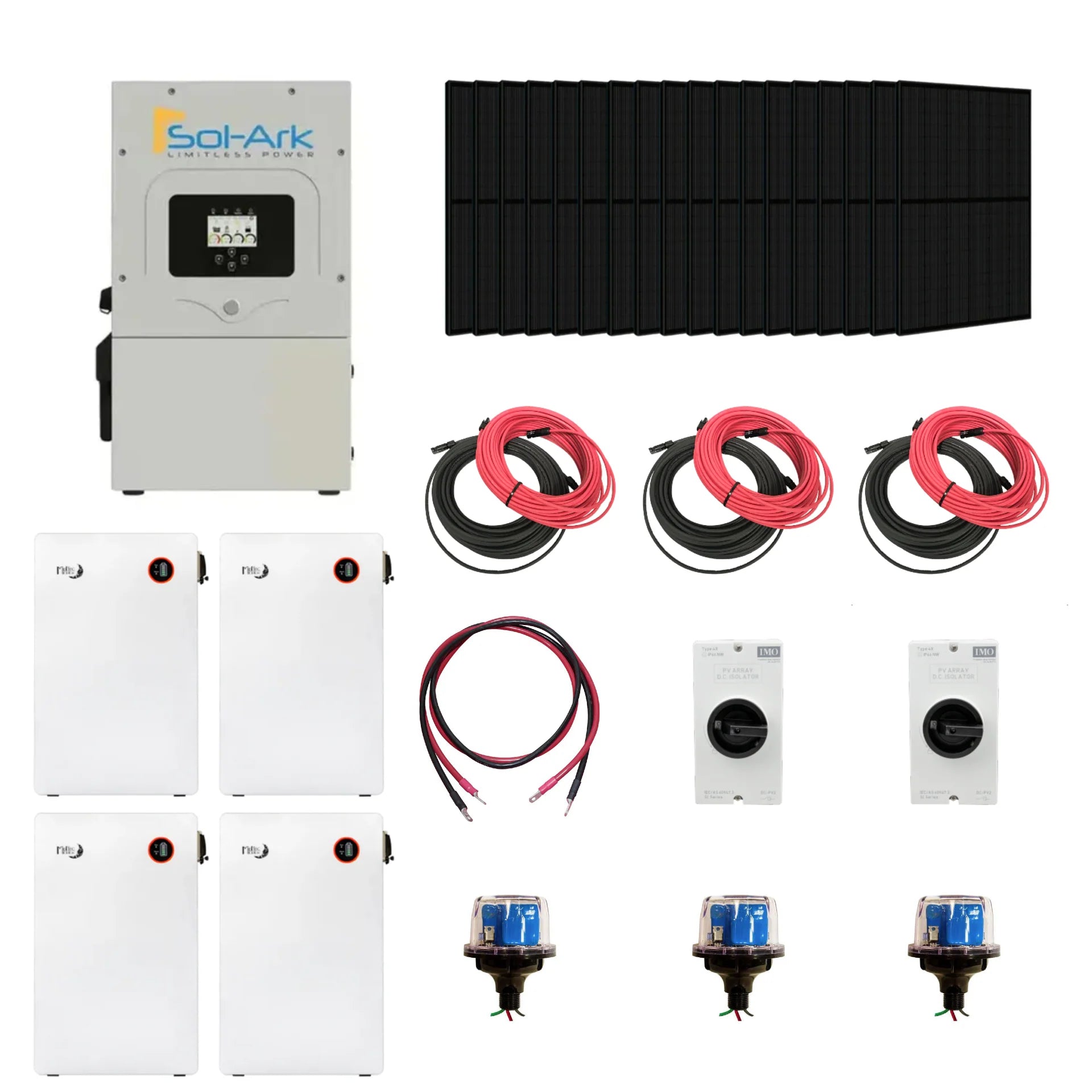

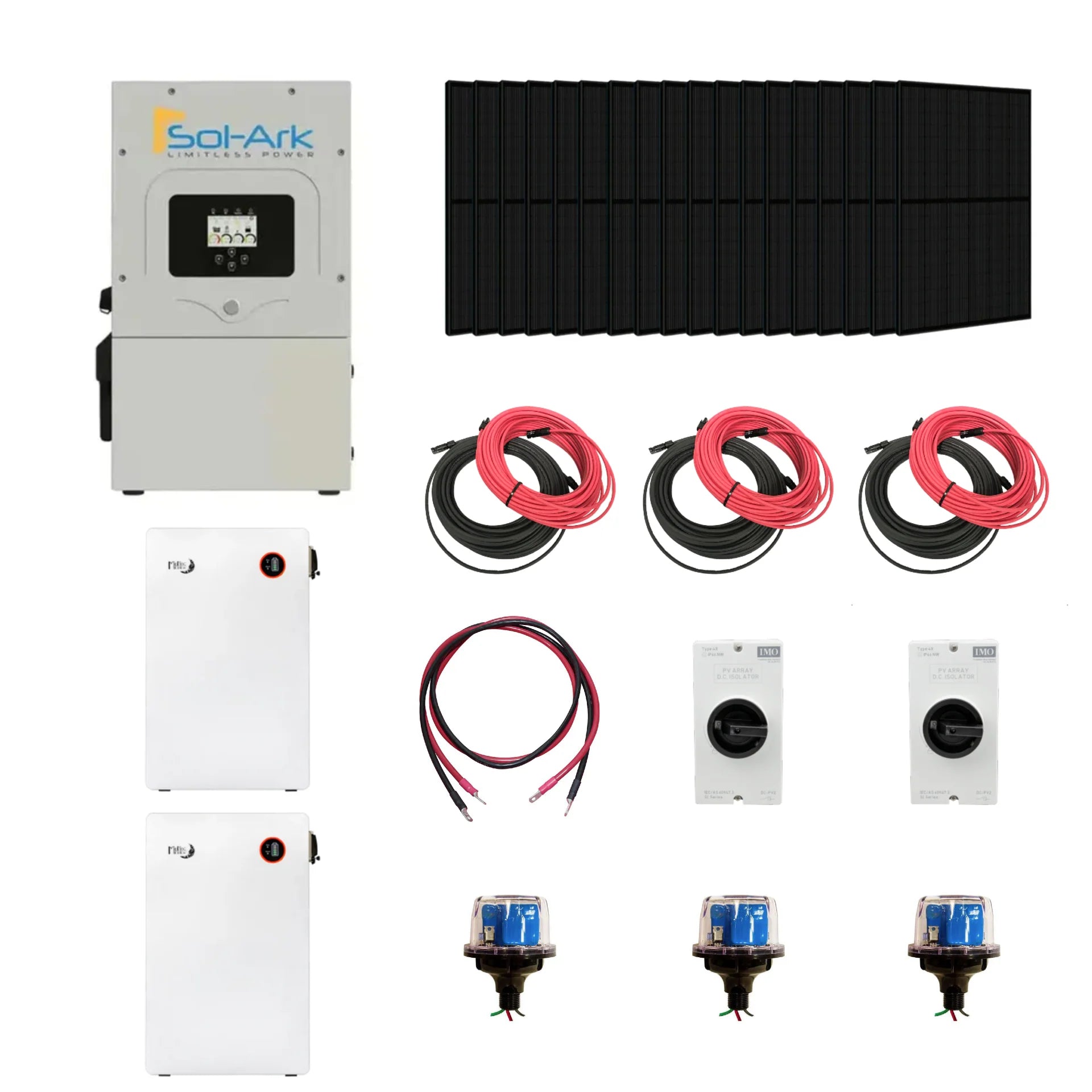

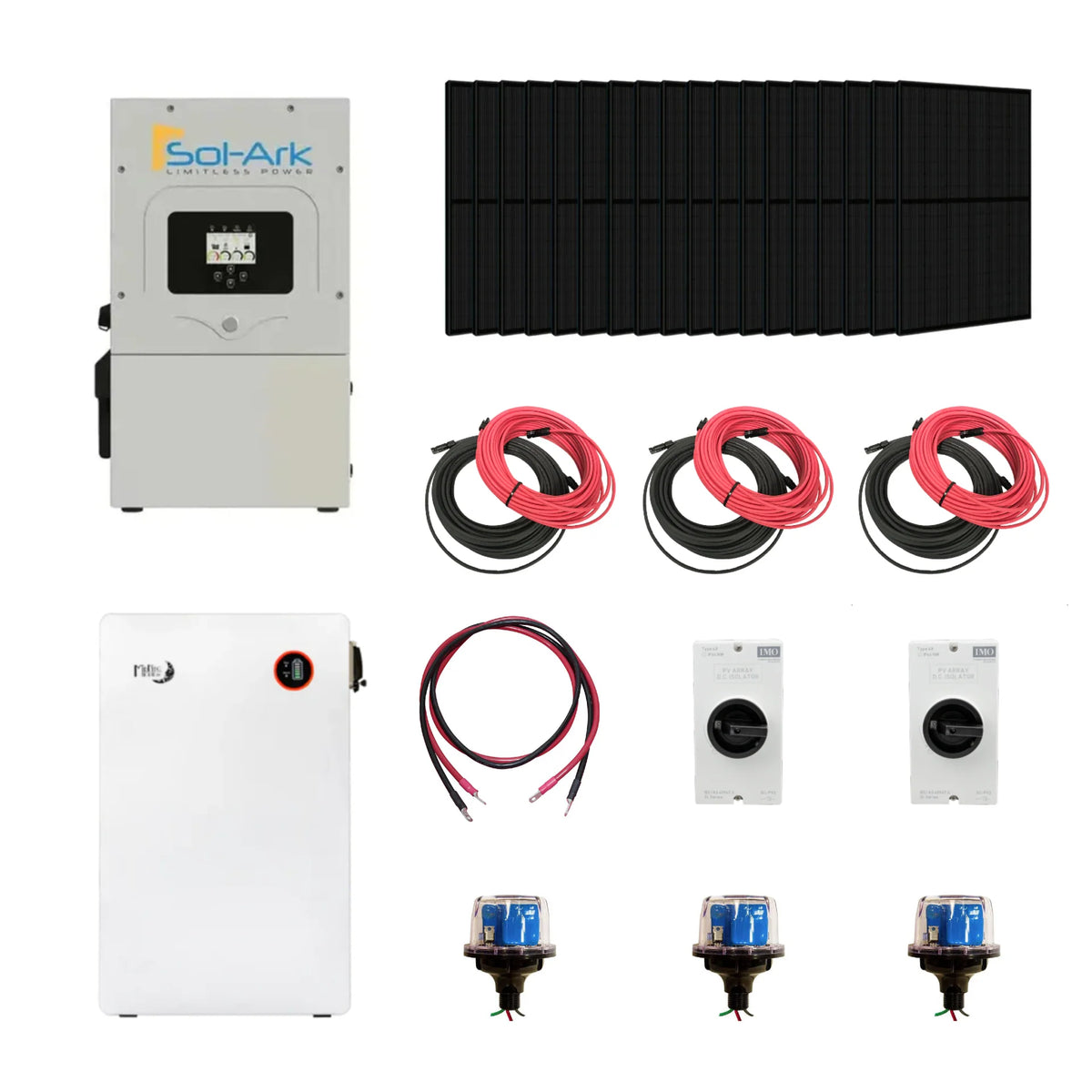

Get dependable whole-home backup, smart time-of-use savings, and flexible installation options with this fully integrated solar and storage bundle. Combining the Sol-Ark 15K hybrid inverter, a MidNite Power AllWeather 16.1kWh LiFePO4 battery, and 13.5kW+ of solar PV, this system is built for rooftops, ground mounts, and carports alike — with balance-of-system components chosen specifically for safety and code compliance.
Sol-Ark 15K Hybrid Inverter Performance
- 15kW continuous output with 120/240V split-phase power delivery
- Ultra-fast transfer time under 5ms keeps critical loads online during outages
- Multiple MPPT inputs allow flexible array design and higher energy harvest
- Built to support high-demand homes and critical-load subpanels
MidNite Power AllWeather Lithium Storage
- 16.1kWh usable capacity in a 48V 310Ah-class configuration
- LiFePO4 chemistry ensures long service life and consistently stable performance
- Outdoor-ready enclosure with cold-weather features for reliable year-round operation
- Integrated communication ports support system integration and future expansion
Protection & Balance of System Included
- MidNite Solar surge protection safeguards PV, battery, and AC circuits
- Code-compliant disconnects enable safe servicing and rapid system isolation
- Pre-terminated MC4 PV wire sets streamline installation and reduce on-site labor time
Choose Your Premium Solar Module Set
- 20× Canadian Solar 710W Bifacial (Silver) - 14.2 kW
Bifacial high-wattage panels for increased energy yield - 36× TaleSun 445W N-Type Bifacial (Black) - 16.0 kW
N-type bifacial performance; strong low-light response; sleek all-black look - 33× Canadian Solar 445W Mono PERC Bifacial (Silver) - 14.7 kW
High-efficiency mono PERC with bifacial boost for added production
(Select the module that suits your space, weight limits, and installation schedule; each option can be sized to approach the inverter’s 19.5 kW PV limit.)
Key Specifications
Sol-Ark 15K-2P Hybrid Inverter
Continuous AC Output: 15,000 W
Max PV Input: 19,500 W
MPPT Voltage Range: 125 – 425 V DC
Battery Voltage Range: 43 – 63 V (48 V nominal)
Charge/Discharge Current: ≤ 275 A
Transfer Time: < 5 ms
Grid Outputs: 120/240 V split-phase or 120/208 V three-phase
MNPowerflo16 LiFePO4 Battery
Usable Energy: 16.1 kWh
Cycle Life: 8,000 cycles @ 80 % DoD, 25 °C
Operating Temp: –20 °C – 50 °C with self-heating
Enclosure: NEMA 3R outdoor rated
Communications: CANbus / RS-485
Ideal Applications
• Whole-home or essentials backup in grid-tied residences
• Small businesses and farms with high-surge loads (HVAC, pumps, EV chargers)
• Off-grid cabins requiring weather-resilient hardware
• NEM 3.0 self-consumption and future virtual-power-plant revenues
Accessories
- 50ft 10 AWG Copper PV Wire | Black and Red (3-4 pc.)
- IMO DC Disconnect Rooftop Isolator Switch (2 pc.)
- 72in 4/0 AWG Battery to Inverter Cables | Black and Red (1 - 6 pc.)
-
Midnite Solar Lightning and Surge Arrestor | 600DC | MNSPD-600C (3 pc.)
- Midnite Solar MNBCB 1000/50 Battery Combiner for 2 or more battery options.
