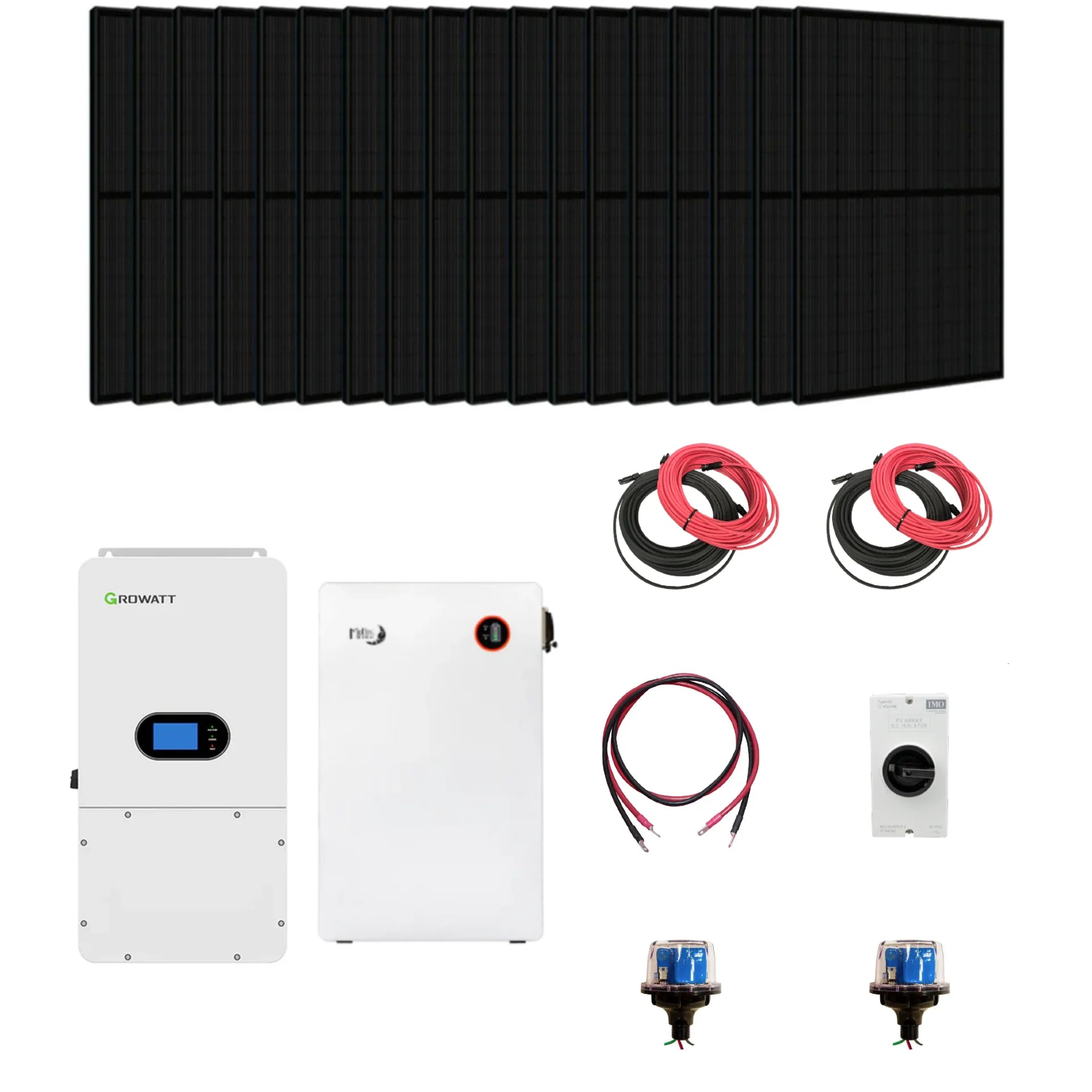

Complete Hybrid Solar Kit | Growatt SPH 10000TL Hybrid Inverter | 15kW PV Input 120/240V 10kW Output | 16.1kWh Midnite Power Lithium Powerwall | More Than 8000 Watts of Solar PV

KIT-GROWATT-02

Core Hardware

Growatt SPH 10000TL-HU-US Hybrid Inverter (10 kW, 48 V) A high-performance hybrid inverter rated at 98% CEC efficiency, equipped with three MPPTs and certified UL 1741 SA & SB ready. Seamless on/off-grid switching keeps critical loads running during outages, while built-in Wi-Fi/4G monitoring connects to the Growatt Shine Cloud platform. Also supports EV charging, includes an integrated ATS, and features a dedicated generator port.

MidNite Power MNPowerflo16 LiFePO4 Battery (16.1 kWh) A long-life lithium battery rated for 6,000 cycles, complete with a built-in BMS and integrated heater for reliable cold-climate operation. Housed in a wall-mount, outdoor-rated NEMA 3R enclosure and backed by a 15-Year Comprehensive Warranty.

Protection & Balance of System

• 2× MNSPD600 surge arrestors (AC + PV)
• 1× IMO DC disconnect for safe array isolation
• 1× Pair of pre-lugged, UL-listed 4/0 AWG battery-to-inverter cables
• 2× 50 ft PV wire runs (10 AWG, red & black, MC4) for clean rooftop-to-combiner routing

Choose Your Solar Panel Package

1. Canadian Solar 705W — 12 Panels / 8.5 kW High-output, high-wattage modules built for maximum energy production.
2. TaleSun 445W Black (N-Type) — 18 Panels / 8.0 kW Sleek all-black aesthetic with lighter roof loading and excellent low-light performance.
3. Canadian Solar 445W (Mono PERC) — 18 Panels / 8.0 kW Proven, high-efficiency mono PERC technology in a reliable, time-tested panel.

Why Choose This Kit?

• Whole-Home Resilience — 10 kW continuous output paired with 16 kWh of storage keeps HVAC systems, well pumps, and kitchen loads online when the grid goes down.
• Future-Proof Architecture — Easily expand to 32 kWh by adding a second MNPowerflo16, or scale to 20 kW AC by paralleling a second SPH inverter — all without rewiring.
• Installer-Friendly Design — Color-coded MC4 leads, pre-terminated battery cables, and clip-on surge protectors significantly reduce rooftop and balance-of-system labor time.
• Code-Compliant Safety — Rapid shutdown-ready inverter, MNSPD600 lightning protection, and IMO DC disconnect are fully compliant with NEC 2023 requirements.
• Smart Energy Savings — Growatt's Time-of-Use scheduler lets you charge from solar or off-peak grid power and automatically discharge during high-rate windows to maximize savings.
