Description

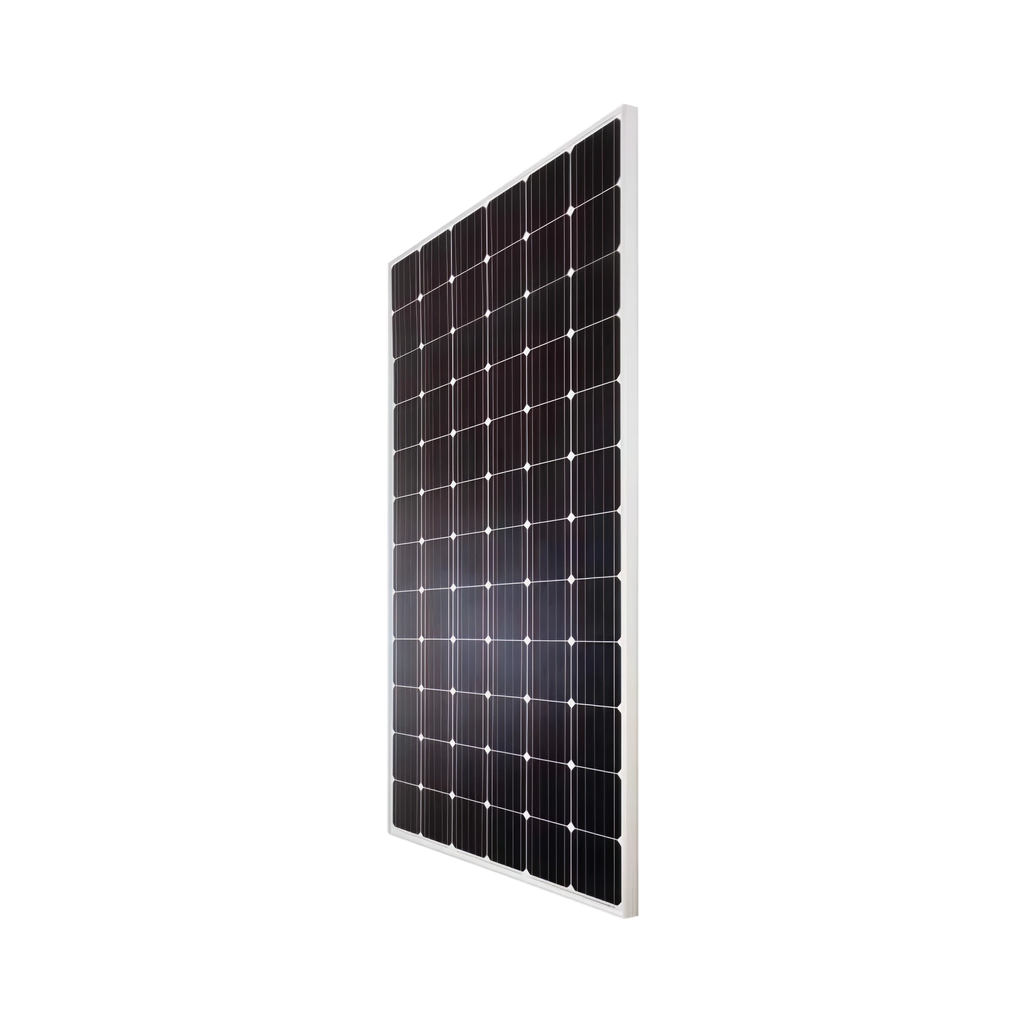

Boviet Solar 385W 40V 9.8A Mono Solar Panel | 72-Cell | Monocrystalline | 1000/1500 VDC is a conventional large-format photovoltaic module designed for residential, commercial, and utility-scale grid-tied solar installations. Built around a 72-cell monocrystalline architecture, this panel delivers stable electrical performance while maintaining compatibility with traditional string inverter and combiner-based system designs.
The module operates at a maximum power voltage of approximately 40V with a maximum power current of 9.8A, making it well suited for long series string configurations without excessive current loading. Its monocrystalline cell construction provides reliable efficiency and consistent output across a wide range of environmental conditions, while the standard white backsheet design supports proven thermal and mechanical performance.
Rated for 1000 VDC systems as standard and 1500 VDC systems on request, this Boviet Solar panel offers flexibility for both legacy commercial designs and modern high-voltage utility-scale arrays. The robust aluminum frame and tempered glass construction allow the module to withstand demanding wind and snow loads, making it suitable for rooftop, ground-mount, and carport installations.
Designed for straightforward integration, the panel conforms to standard module dimensions and mounting hole spacing, ensuring compatibility with most racking systems. It is a practical choice for system designers seeking a reliable, no-frills monocrystalline module with predictable electrical characteristics and broad inverter compatibility.
Key Features:
-
385W Rated Output: Suitable for residential, commercial, and utility-scale systems
-
72-Cell Monocrystalline Design: Proven architecture for stable performance
-
40V Operating Voltage / 9.8A Current: Optimized for traditional string inverter layouts
-
1000/1500 VDC System Rating: Supports modern high-voltage array designs
-
Robust Mechanical Construction: Designed for wind and snow load resistance
-
Standard Module Format: Compatible with common racking and mounting systems
Key Specifications:
| Specification | Details |
|---|---|
| Nominal Power (Pmax) | 385 W |
| Cell Type | Monocrystalline |
| Cell Configuration | 72 Cells |
| Maximum Power Voltage (Vmp) | 40.0 V |
| Maximum Power Current (Imp) | 9.8 A |
| Open Circuit Voltage (Voc) | ~49.0 V |
| Short Circuit Current (Isc) | ~10.4 A |
| Module Efficiency | ~19.5% |
| Maximum System Voltage | 1000 VDC (1500 VDC on request) |
| Maximum Series Fuse Rating | 20 A |
| Operating Temperature Range | −40°C to +85°C |
| Front Glass | Tempered solar glass |
| Backsheet | White |
| Frame | Anodized aluminum |
| Junction Box | IP68 rated |
| Connector Type | MC4 compatible |
| Module Dimensions (L × W × D) | ~1956 × 992 × 40 mm |
| Weight | ~48.5 lbs |
| Mechanical Load (Front) | 5400 Pa |
| Mechanical Load (Rear) | 2400 Pa |
| Application | Residential / Commercial / Utility |
| Warranty | 12-year (Product) / 25-Year (Production) |
| Manufacturer | Boviet Solar |
