Description

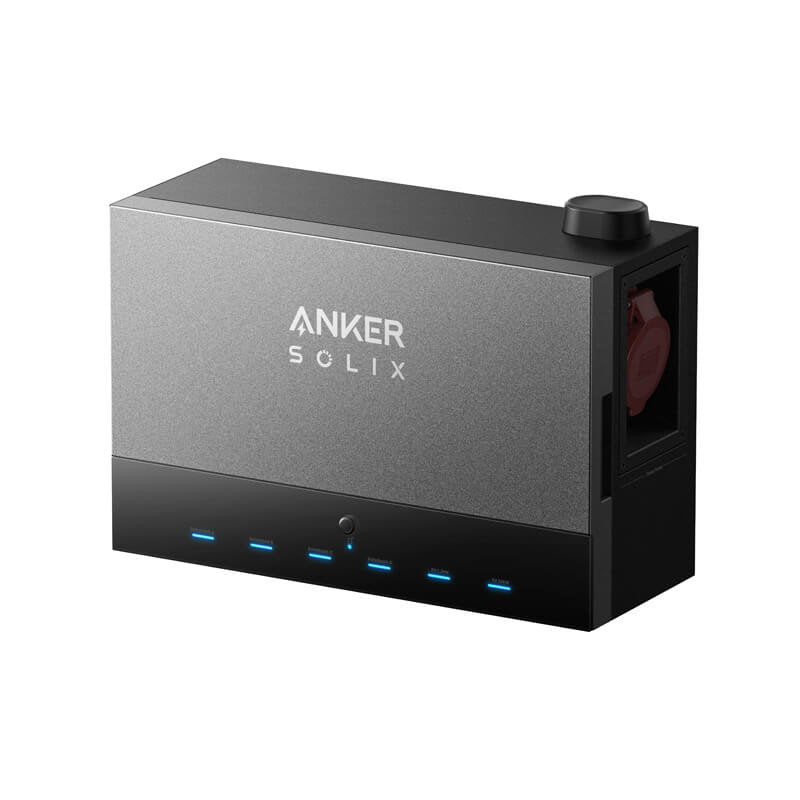

The Anker SOLIX Power Dock is a 200A whole-home backup hub designed to integrate seamlessly with the Anker SOLIX E10 system, delivering whole-home protection with under 20ms automatic switchover during any power outage.
Key Features
- 200A Whole-Home Backup — Every Circuit Covered — Unlike 100A-limited systems, the Power Dock protects the full home panel so every outlet stays live during an outage.
- ≤20ms Automatic Switchover — Activates backup power faster than any traditional generator, keeping devices and sensitive electronics safe without interruption.
- 15.3kW AC Solar Input & 24kW Generator Pass-Through — Integrates third-party AC solar systems and supports any 240V generator including standby models.
- 12 Smart Branch Circuits with Load Management — Four Plug-and-Play 100A AC ports and eight additional load circuits give installers complete control over energy distribution.
- Modular Split Design for Flexible Installation — ATS box and combiner box can be installed together or separately to suit any home panel configuration.
The Power Dock operates through AC coupling, Self-Consumption, and Time-of-Use modes to store 100% of excess solar and off-peak grid power, reducing electricity bills by up to 80%. Storm Guard Mode and smart prioritization ensure critical loads are always protected first during extended outages.
Wi-Fi and Bluetooth connectivity enable real-time monitoring and smart energy management through the Anker app. Compatible with third-party PV inverters that comply with the IEEE 1547-2018 grid standard for full off-grid frequency regulation support.
Built with a NEMA 3R weatherproof enclosure rated for -4°F to 131°F, the Power Dock is suitable for both indoor and sheltered outdoor installations. Professional installation by a certified electrician who has completed Anker SOLIX Power Dock product training is required.
Technical Specification
| Specification | Details |
|---|---|
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Switchover Time | ≤20ms |
| Grid Connection | 200A Max / 160A Continuous |
| Subpanel Connection | 200A Max / 160A Continuous |
| Plug & Play AC Ports | 4×100A / Total ≤160A |
| Circuits 1 & 2 (Load or Generator) | 100A Max / 80A Continuous |
| Circuits 7 & 8 (Load or AC Solar) | 80A Max / 64A Continuous |
| Circuits 3–6, 9–12 (Load) | 60A Max / 48A Continuous |
| Circuits for Batteries | 125A Max / 100A Continuous |
| Smart Branch Circuits | 12 |
| AC Solar Input | 15.3kW |
| Generator Pass-Through | Up to 24kW |
| Connectivity | Wi-Fi / Bluetooth |
| Enclosure Type | NEMA Type 3R |
| Operating Temperature | -4°F – 131°F |
| Dimensions (W×H×D) | 36.1 × 15 × 7.1 in |
| Weight | 60 lbs |
| Warranty | 10 Years |
